TA4MX
| Manufacturer | |
| Description | XLR Connectors 4 PIN MALE PLUG Conn Mini XLR Connector M 4 POS Solder ST Cable Mount 4 Terminal 1 Port CONN RCPT CORD 4POS MALE MINI Switchcraft Tini QG Series 4 Way Straight Male Cable Mount Miniature Connector, 5A DINPlug;Plug;4;Male;125;5A;510000Megohms(Min.)@500VDC(ROHS) Switchcraft Tini QG系列 4路 直向 电缆安装 插头, 5A |
| Category |
Business
| Product Category | XLR Connectors | Standard Package | 1 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 125VAC | Voltage - Supply | Mini (Tiny) XLR |
| Current Rating (Max) | 5A | Voltage - Input (Min) | 125VAC |
Mechanical
| Diameter | 10.5 | Packaging | Bulk |
| Orientation | Keyed | Termination | Solder |
| Mounting Type | Cable Mount | Shell Plating | Nickel |
| Connector Type | Receptacle, Male Pins | Contact Finish | Silver |
| Fastening Type | Latch Lock | Mounting Style | Cable |
| Contact Material | Copper Alloy | Housing Material | Copper Alloy |
| Length - Overall | 51.4 | Termination Rows | 焊接 |
| Termination Style | Solder | Number of Contacts | 4 |
| Number of Positions | 4 | Shell Size - Insert | Mini XLR |
| Shell Material, Finish | Copper, Nickel Plated | ||
Product Info
| Type | Mini XLR Connector | Gender | M |
| Series | Tini QG | Features | Strain Relief |
| Product Type | Connectors | Number of Ports | 1 |
Environmental
| Operating Temperature | -55°C ~ 85°C | ||
Documents & Media
Similar Parts

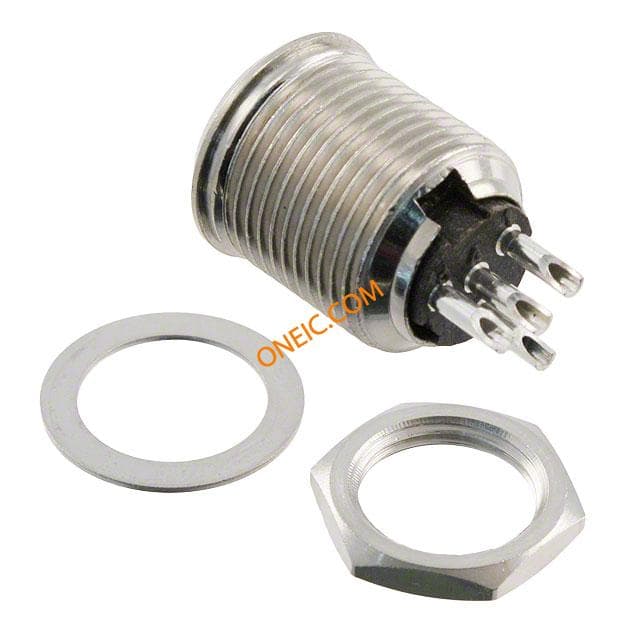

TB4M
