RAPC712X
| Manufacturer | |
| Description | Conn Power PL 2 POS Solder RA Thru-Hole 3 Terminal 1 Port Bulk CONN POWERJACK MINI R/A PCMT DC Power Connectors R/A POWER JACK JACK, SOCKET, DC, 250V, 5A Conn;AV;Power;Jack;Mini;2.5mmPinDia;RtAngle;Thru-hole;for760,765Plug Applied-voltage source socket 2.5 mm 6.3 mm, RAPC712X, Switchcraft |
| Category |
Business
| Product | Jacks | Product Category | DC Power Connectors |
| Standard Package | 2,500 | Factory Pack Quantity | 2500 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | :250V | Current Rating (Max) | 5A |
| Insulation Resistance | 30 MOhms | ||
Mechanical
| Size | Mini | Color | Black |
| Depth | 14.5 | Height | 11 |
| Weight | 0.001 | Packaging | Bulk |
| Shielding | Unshielded | AC Outlets | :1 |
| Insulation | Insulated | Termination | Solder |
| Pin Diameter | 0.10" | Housing Color | Black |
| Mounting Type | Through Hole | Angle of Throw | RightAngle |
| Connector Type | Jack | Contact Finish | Nickel |
| Mounting Style | Through Hole | Material - Body | Thermoplastic |
| Contact Material | Brass | Housing Material | Thermoplastic |
| Length - Overall | 9 | Primary Material | Power |
| Termination Style | Solder | Number of Contacts | 2 |
| Contact Termination | :Solder | Contact Finish Thickness | 2.5 mm |
| Plug/Mating Plug Diameter | 2.5mm ID, 5.5mm OD | Contact Material - Plating | Nickel |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Type | Power | Gender | PL |
| Series | RAPC | Number of Ports | 1 |
| Internal Switch(s) | Single Switch, Normally Closed | Number of Positions/Contacts | 2 Conductors, 2 Contacts |
Documents & Media
Similar Parts
765
Switchcraft
Conn Power F 2 POS ST Cable Mount 2 Terminal 1 Port CONN PLUG MINI PWR 2COND BLK/RED DC Power Connectors DC PWR PLG 0.100 1.42L, RED HANDLE CONNECTOR, DC POWER, PLUG, 5A Conn;AV;Power;Plug;Mini;2.5mm,IDPinSize;Straight;Insulated;Red Switchcraft 直向 直流适配器 , 5A, 电缆安装, 镀锡触芯

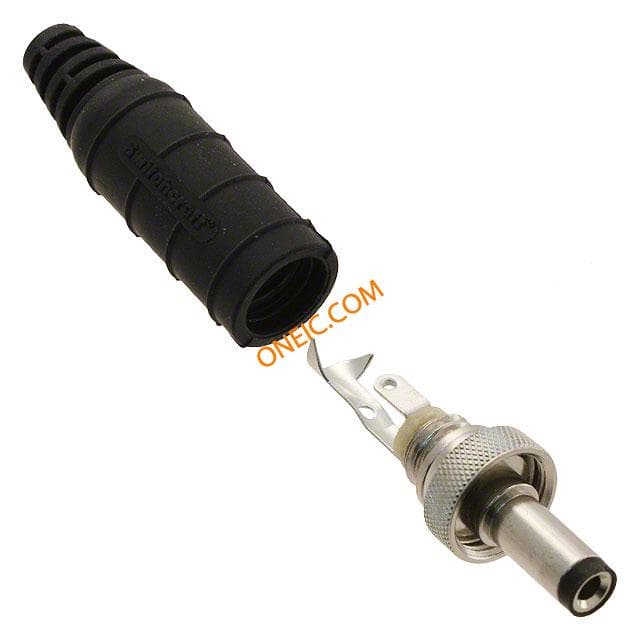

761KS12
