765
| Manufacturer | |
| Description | Conn Power F 2 POS ST Cable Mount 2 Terminal 1 Port CONN PLUG MINI PWR 2COND BLK/RED DC Power Connectors DC PWR PLG 0.100 1.42L, RED HANDLE CONNECTOR, DC POWER, PLUG, 5A Conn;AV;Power;Plug;Mini;2.5mm,IDPinSize;Straight;Insulated;Red Switchcraft 直向 直流适配器 , 5A, 电缆安装, 镀锡触芯 |
| Category |
Business
| Product | Plugs | Lead Time | 44 Days |
| Subcategory | Connector Power | Product Category | DC Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | ||
Electrical
| Current Rating (Max) | 5A | ||
Mechanical
| Size | Mini | Color | Black |
| Weight | 0.004 | Diameter | 9.5 |
| Shielding | Unshielded | Insulation | Insulated |
| Termination | Solder Eyelet(s) | Pin Diameter | 0.218" |
| Housing Color | Red | Mounting Type | Cable Mount |
| Angle of Throw | Straight | Connector Type | Plug |
| Contact Finish | Tin | Mounting Style | Cable |
| Contact Material | Copper Alloy | Housing Material | Plastic |
| Length - Overall | 36.06 | Primary Material | Power |
| Number of Contacts | 2 | Contact Termination | :Solder |
| Contact Finish Thickness | 2.54 mm | Plug/Mating Plug Diameter | 2.5mm ID, 5.5mm OD |
| Contact Material - Plating | Nickel | 1st Connector Mounting Type | :Cable |
Product Info
| Type | Power | Gender | F |
| Series | Standard DC Power Plugs | Number of Ports | 1 |
| Internal Switch(s) | Does Not Contain Switch | Leaded Process Compatible | :Yes |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts | For Use With/Related Products | :712A, RAPC712, RASH712, RASM712, PC712A, RA712A |
Documents & Media
Similar Parts
RASH712X
Switchcraft
Conn Power PL 2 POS Solder RA Thru-Hole/SMD 3 Terminal 1 Port Bulk CONN POWERJACK MINI RA HYBRID DC Power Connectors RA PWR JK HY.100 DIA RAPWRJKHY.100DIA

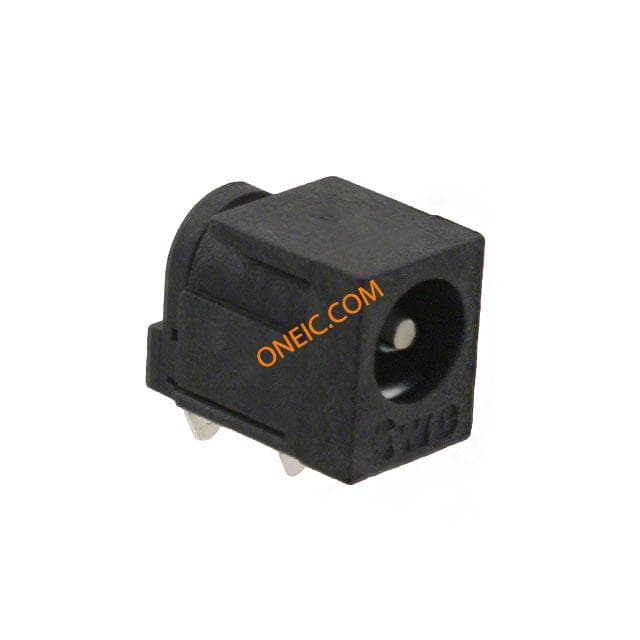

RAPC712X
Switchcraft
Conn Power PL 2 POS Solder RA Thru-Hole 3 Terminal 1 Port Bulk CONN POWERJACK MINI R/A PCMT DC Power Connectors R/A POWER JACK JACK, SOCKET, DC, 250V, 5A Conn;AV;Power;Jack;Mini;2.5mmPinDia;RtAngle;Thru-hole;for760,765Plug Applied-voltage source socket 2.5 mm 6.3 mm, RAPC712X, Switchcraft
PC712A
Switchcraft
Conn Power PIN 3 POS Solder ST Thru-Hole 3 Terminal 1 Port CONN POWERJACK MINI W/HDWR Connector; Miniature Power Jack; 0.475 in.; 0.1; 5/16-32 NEF-2A; PC DC Power Connectors 2.5MM PC-MT CONNECTOR, DC POWER, SOCKET, 5A Conn;AV;Power;Jack;Mini;2.5mmPinDia;Straight;PCTerm;for760,760K,761K Switchcraft PC7 系列 直向 直流电源插头 , 5A, 12 V 直流, 通孔, 镀银触芯

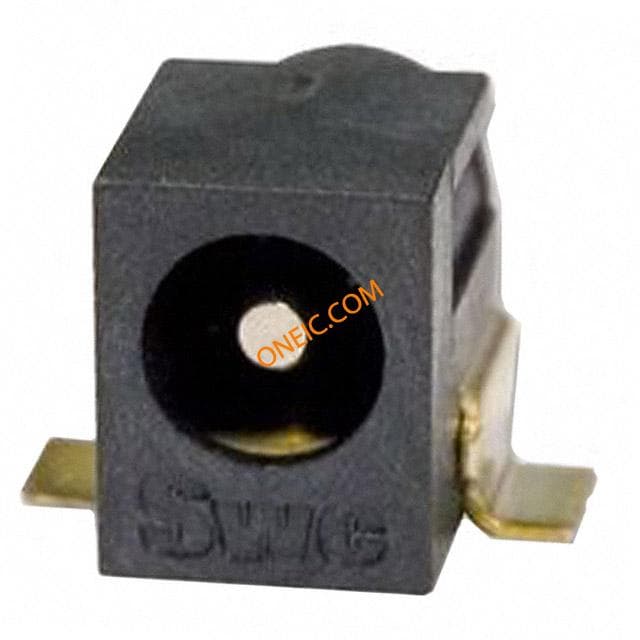

RASM712X
