712A
| Manufacturer | |
| Description | CONN POWERJACK SOLDER W/HDWR 2.5mm Straight Panel Mount DC Power Socket 5A, 12V dc, Silver Plate DC Power Connectors 2.5MM ROUND W/NUT Conn Power F 3 POS Solder ST Thru-Hole 3 Terminal 1 Port JACK, SOCKET, DC, 12VDC, 5A Connector;MiniaturePowerJack;0.475in.;0.1;5/16-32NEF-2A;SolderLug Applied-voltage source socket, straight 2.5 mm 5.5 mm, 712A, Switchcraft Switchcraft 直向 面板安装 直流电源插座, 5A, 12 V 直流, 镀银触点 |
| Category |
Business
| Product | Jacks | Lead Time | 20 Days |
| Other Names | SC1048 | Subcategory | Connector Power |
| Product Category | DC Power Connectors | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 12VDC | Number of Poles | :2 |
| Current Rating (Max) | 5A | Insulation Resistance | 1000 MOhms |
| Voltage - Supply (Min) | 12VDC | ||
Mechanical
| Color | Silver | Width | 0.816in |
| Weight | 0.001 | Diameter | 11 mm |
| Shielding | Unshielded | AC Outlets | :1 |
| Termination | Solder Eyelet(s) | Weight (g): | 3.20000 |
| Pin Diameter | 2.5mm | Housing Color | Black |
| Mounting Type | Panel Mount, Bulkhead - Front Side Nut | Conductor Type | MiniaturePowerJack |
| Connector Type | Jack | Contact Finish | Silver |
| Mounting Style | Panel | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 23.3 mm |
| Number of Contacts | 3 POS | Panel Cutout Shape | :5.8mm |
| Contact Termination | :Solder | Contact Finish Thickness | 2.5 mm |
| Plug/Mating Plug Diameter | 2.5mm ID, 5.5mm OD | Contact Material - Plating | Silver |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | Power | Gender | Male |
| Series | Straight DC Power Jacks | Features | Mounting Hardware, Thread Lock |
| Number of Ports | 1 Port | Internal Switch(s) | Single Switch, Normally Closed |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts | ||
Documents & Media
Similar Parts
2C1072
Switchcraft
Connector Accessories Jack Cover JACK COVER FOR 2COND PLUGS JACK COVER ASSY - PO DC Power Connectors JACK COVER DUST CAP, PLASTIC JACKCOVERASSY-PO
760K
Switchcraft
Conn Power F 2 POS ST Cable Mount 2 Terminal 1 Port CONN POWERPLUG LOCKING BLACK DC Power Connectors DC PWR PLG 0.100 1.7L, BLK HAND. LCK JACK PLUG, 5A DC Conn;AV;Power;Plug;Mini;2.5mm,IDPinSize;Straight;Insulated;Locking;Black Power plug with locking 2.5/5.5mm 2.5 mm, 760K, Switchcraft Switchcraft 直向 直流适配器 , 5A, 电缆安装, 镀锡触芯

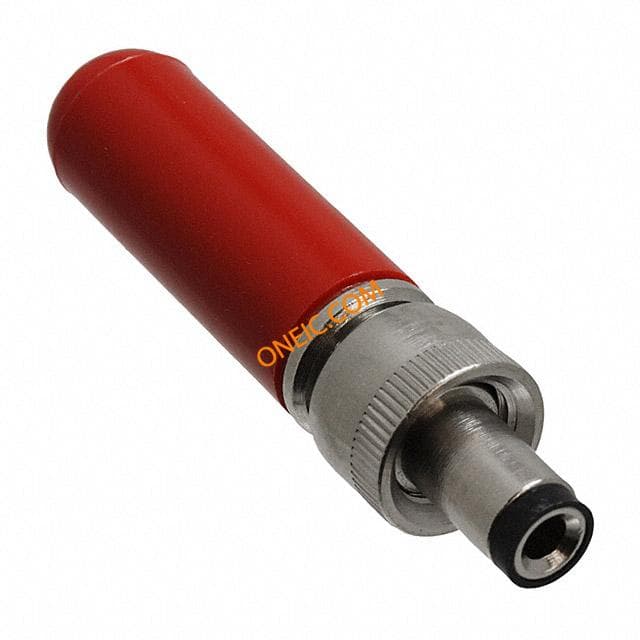

765K
