35581X
| Manufacturer | |
| Description | RCA Phono Connectors PLUG W/RED HANDLE Conn RCA M 2 POS Solder/Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG PHONO 2POS RED W/HDWR phono plug; red phonoplug,red |
| Category |
Business
| Other Names | SC1321 | Product Category | RCA Phono Connectors |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Signal Lines | Mono | Voltage Rating | 250VAC, 140VDC |
| Current Rating (Max) | 6A | Voltage - Input (Min) | 140VDC|250VAC |
Mechanical
| Color | Black | Packaging | Bulk |
| Shielding | Unshielded | Termination | Solder|Crimp |
| Housing Color | Red | Mounting Type | Cable Mount |
| Angle of Throw | Straight | Connector Type | Phono (RCA) Plug |
| Contact Finish | Nickel | Mounting Style | Cable |
| Contact Material | Copper Alloy | Housing Material | Copper Alloy |
| Primary Material | RCA(Phono) | Termination Style | Crimp |
| Number of Contacts | 2 | Color - Actuator/Cap | Golden |
| Plug/Mating Plug Diameter | 3.20mm ID, 9.00mm OD (RCA) | Contact Material - Plating | Gold |
Product Info
| Type | RCA | Gender | M |
| Series | 3502A | Features | Mounting Hardware |
| Number of Ports | 1 | Internal Switch(s) | Does Not Contain Switch |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts

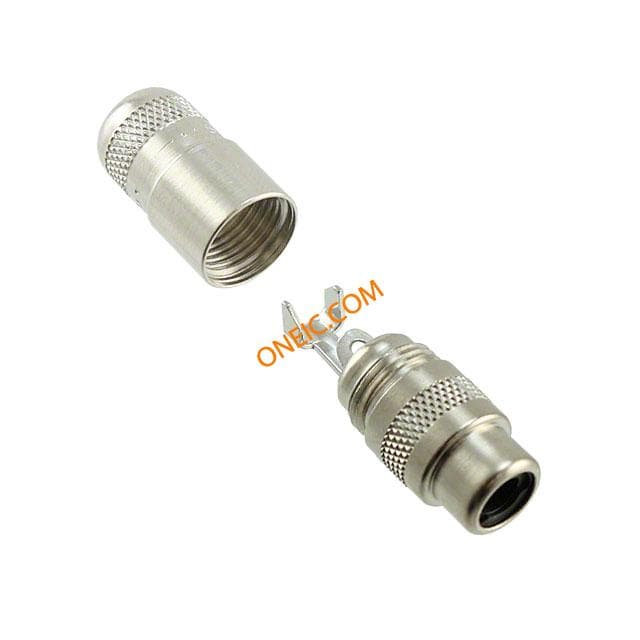

3503X
Switchcraft
RCA Phono Connectors EXT PHONO JAX Conn RCA F 2 POS Solder ST Cable Mount 2 Terminal 1 Port CONN JACK PHONO 2POS SHIELDED Jack; Phono Extension; 0.375 in.; Bright Nickel Plate; Nickel; 1.219 in CONNECTOR, RCA/PHONO, JACK, 2POS Jack,PhonoExtension;0.375in.;BrightNickelPlate;Nickel;1.219in Switchcraft RCA 插座 , 电缆安装, 镀镍触点
3501FRX
Switchcraft
RCA Phono Connectors REAR MOUNT JACK Conn RCA F 2 POS Solder ST Panel Mount 2 Terminal 1 Port CONN JACK PHONO 2POS REAR PNLMT Jack; Phone; Panel; 2; 0.203 Jack,Phone;Panel;2;0.203

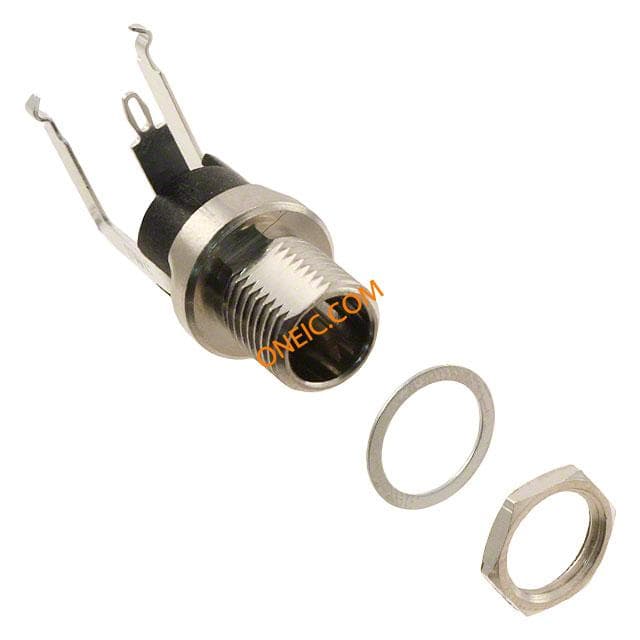

L722RA
