3501FRX
| Manufacturer | |
| Description | RCA Phono Connectors REAR MOUNT JACK Conn RCA F 2 POS Solder ST Panel Mount 2 Terminal 1 Port CONN JACK PHONO 2POS REAR PNLMT Jack; Phone; Panel; 2; 0.203 Jack,Phone;Panel;2;0.203 |
| Category |
Business
| Other Names | SC1320 | Product Category | RCA Phono Connectors |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Signal Lines | Mono | ||
Mechanical
| Depth | 15.88 | Height | 23.03 |
| Packaging | Bulk | Shielding | Unshielded |
| Termination | Solder | Housing Color | Silver |
| Mounting Type | Panel Mount | Angle of Throw | Straight |
| Connector Type | Phono (RCA) Jack | Mounting Style | Chassis (Panel) |
| Contact Material | Brass | Housing Material | Brass |
| Length - Overall | 22.63 | Primary Material | RCA(Phono) |
| Termination Style | Screw | Number of Contacts | 2 |
| Color - Actuator/Cap | Black | Plug/Mating Plug Diameter | 3.20mm ID, 9.00mm OD (RCA) |
| Contact Material - Plating | Nickel | ||
Product Info
| Type | RCA | Gender | F |
| Series | RCA | Features | Grounding Tab, Mounting Hardware |
| Number of Ports | 1 | Internal Switch(s) | Does Not Contain Switch |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts | ||
Environmental
| Operating Temperature | 85 | ||
Documents & Media
Similar Parts
S1029
Switchcraft
Screws & Fasteners FIBER WASHER W SHLDR 3/8 HOLE, 5/8 DIA WASHER SHOULDER FIBRE RCA Phono Connectors WASHER FOR 3501FR Washers Shoulder 5/8in 1/32 FASTENERS, WASHER RCAPhonoConnectorsWASHERFOR3501FR
S1028
Switchcraft
Screws & Fasteners BROWN PLASTIC WASHER 3/8 HOLE, 5/8 DIA Washers Flat Rigid Plastic 3/8in 5/8in 0.031in WASHER FLAT PLASTIC Rigid plastic brown washer 5/8 in x 3/8 in x .020 in. Washers Flat Rigid Plastic 9.53 15.88 0.79 FASTENERS, WASHER Rigidplasticbrownwasher5/8inx3/8inx.020in.
3501MX
Switchcraft
RCA Phono Connectors BASIC PLUG Conn RCA M 2 POS Solder/Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG PHONO 2PS NO CBL CLAMP PHONOPLUG,RoHS
35581X
Switchcraft
RCA Phono Connectors PLUG W/RED HANDLE Conn RCA M 2 POS Solder/Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG PHONO 2POS RED W/HDWR phono plug; red phonoplug,red
35582X
Switchcraft
RCA Phono Connectors BLACK PLUG W/CLAMP Conn RCA M 2 POS Solder/Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG PHONO 2POS BK W/HDWR phono plug; black phonoplug,black
3501MCX
Switchcraft
RCA Phono Connectors PLUG W/ CABLE CLAMP CONN PLUG PHONO 2POS CABLE CLAMP Conn RCA M 2 POS Solder/Crimp ST Cable Mount 2 Terminal 1 Port
3502
Switchcraft
RCA Phono Connectors Ni HD PLUG W/CLAMP Conn RCA M 2 POS Solder/Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG PHONO 2POS SHIELDED Phone Plug; 2; Solder; 0.285 in. (Max.); Copper Alloy; Nickel; 0.688 in. PhonePlug;2;Solder;0.285in.(Max.);CopperAlloy;Nickel;0.688in.

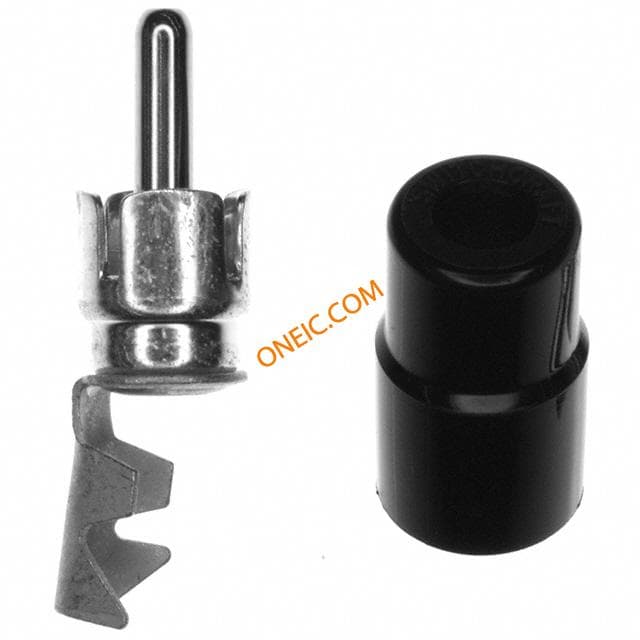

3558-2
