3501MX
| Manufacturer | |
| Description | RCA Phono Connectors BASIC PLUG Conn RCA M 2 POS Solder/Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG PHONO 2PS NO CBL CLAMP PHONOPLUG,RoHS |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | RCA Phono Connectors | Standard Package | 500 |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Signal Lines | Mono | Current Rating (Max) | 6 |
| Voltage - Input (Min) | 140VDC|250VAC | ||
Mechanical
| Diameter | 9.53 | Packaging | Bulk |
| Shielding | Unshielded | Orientation | Vertical |
| Termination | Solder|Crimp | Housing Color | Silver |
| Mounting Type | Cable Mount | Connector Type | Phono (RCA) Plug |
| Mounting Style | Cable | Contact Material | Copper Alloy |
| Housing Material | Copper Alloy | Length - Overall | 20.65 |
| Number of Contacts | 2 | Color - Actuator/Cap | Silver |
| Plug/Mating Plug Diameter | 3.20mm ID, 9.00mm OD (RCA) | Contact Material - Plating | Nickel |
Product Info
| Type | RCA | Gender | M |
| Series | 3502A | Number of Ports | 1 |
| Internal Switch(s) | Does Not Contain Switch | Number of Positions/Contacts | 2 Conductors, 2 Contacts |
Environmental
| Operating Temperature | 85 | ||
Documents & Media
Online Document
Online Document
Similar Parts

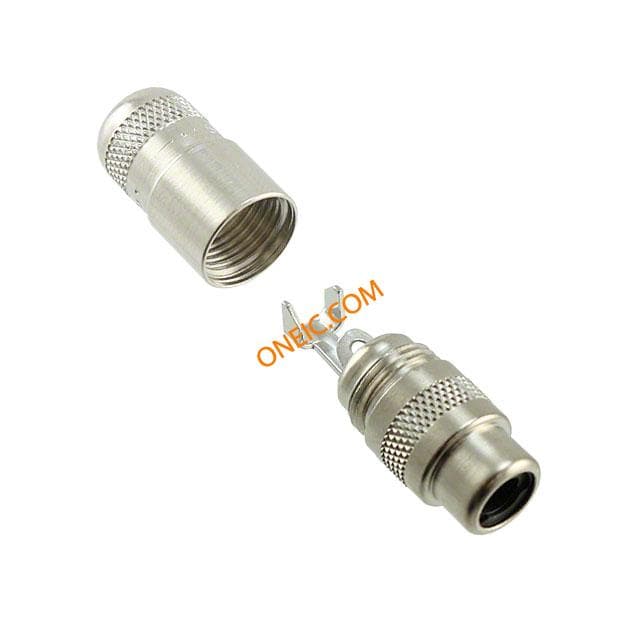

3503X
Switchcraft
RCA Phono Connectors EXT PHONO JAX Conn RCA F 2 POS Solder ST Cable Mount 2 Terminal 1 Port CONN JACK PHONO 2POS SHIELDED Jack; Phono Extension; 0.375 in.; Bright Nickel Plate; Nickel; 1.219 in CONNECTOR, RCA/PHONO, JACK, 2POS Jack,PhonoExtension;0.375in.;BrightNickelPlate;Nickel;1.219in Switchcraft RCA 插座 , 电缆安装, 镀镍触点
$26.7784
Details

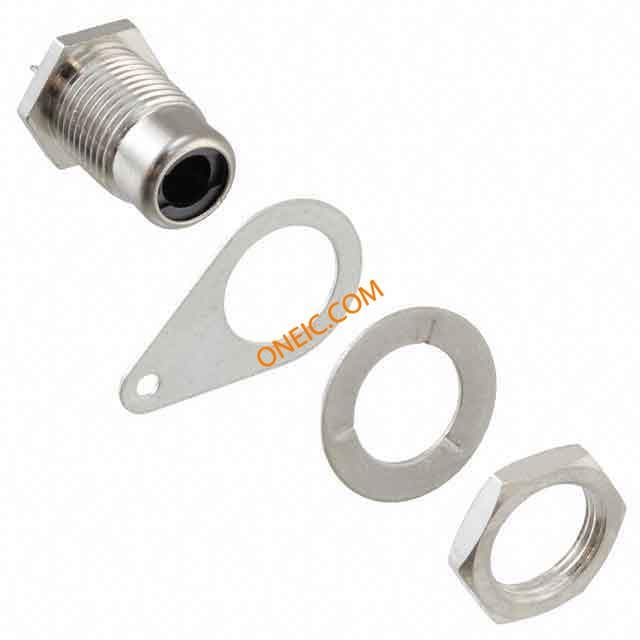

3501FRX
Switchcraft
RCA Phono Connectors REAR MOUNT JACK Conn RCA F 2 POS Solder ST Panel Mount 2 Terminal 1 Port CONN JACK PHONO 2POS REAR PNLMT Jack; Phone; Panel; 2; 0.203 Jack,Phone;Panel;2;0.203
$21.1596
Details

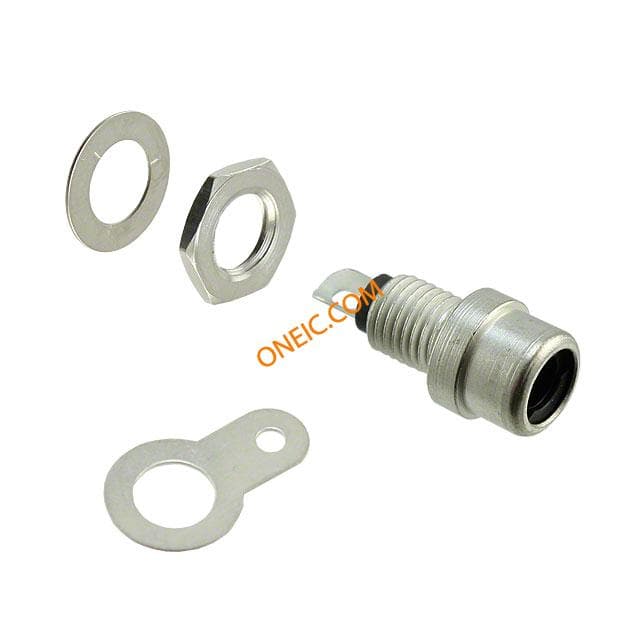

3501FPX
