3501FPX
| Manufacturer | |
| Description | RCA Phono Connectors FRONT MOUNT JACK Conn RCA F 2 POS Solder ST Panel Mount 2 Terminal 1 Port CONN JACK PHONO 2POS FRONT PNLMT Jack; Phone; Panel; 2; 0.25 in Jack,Phone;Panel;2;0.25in |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | SC1319 | Product Category | RCA Phono Connectors |
| Standard Package | 500 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Signal Lines | Mono | ||
Mechanical
| Depth | 11.13 | Height | 18.26 |
| Packaging | Bulk | Shielding | Unshielded |
| Termination | Solder | Weight (g): | 2.40000 |
| Housing Color | Silver | Mounting Type | Panel Mount |
| Angle of Throw | Straight | Connector Type | Phono (RCA) Jack |
| Mounting Style | Chassis (Panel) | Contact Material | Brass |
| Housing Material | Brass | Length - Overall | 22.22 |
| Primary Material | RCA(Phono) | Termination Style | Screw |
| Number of Contacts | 2 | Color - Actuator/Cap | Black |
| Plug/Mating Plug Diameter | 3.20mm ID, 9.00mm OD (RCA) | Contact Material - Plating | Nickel |
Product Info
| Type | RCA | Gender | F |
| Series | RCA | Features | Grounding Tab, Mounting Hardware |
| Number of Ports | 1 | Internal Switch(s) | Does Not Contain Switch |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts | ||
Environmental
| Operating Temperature | 85 | ||
Documents & Media
Online Document
Online Document
Online Document
Similar Parts

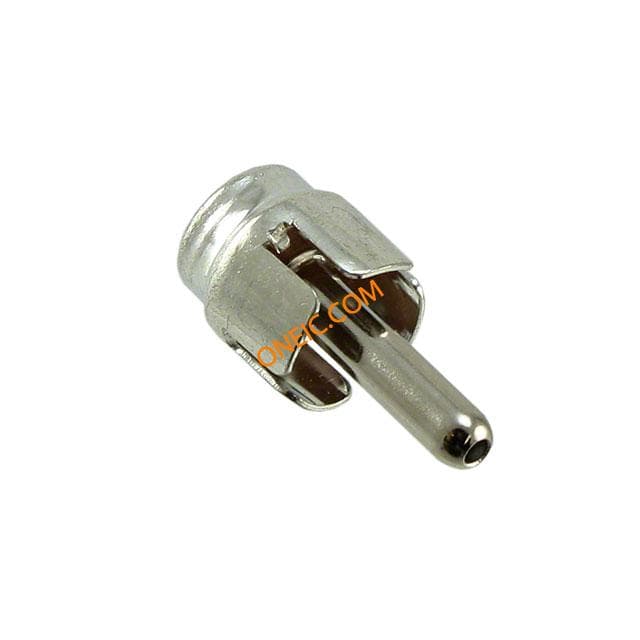

3501MX
Switchcraft
RCA Phono Connectors BASIC PLUG Conn RCA M 2 POS Solder/Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG PHONO 2PS NO CBL CLAMP PHONOPLUG,RoHS
$2.2508
Details

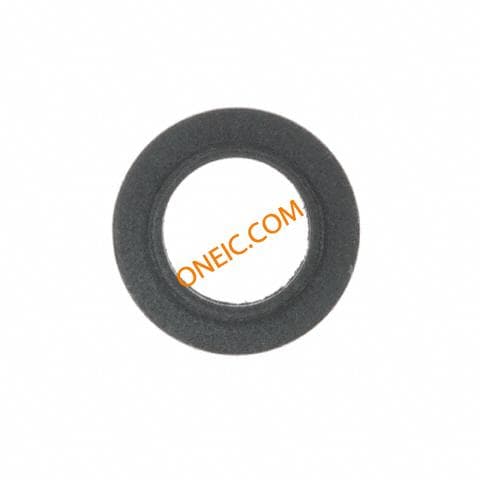

S1564
Switchcraft
Plastic Hardware WASHER FOR 3501FP Washers Chamfered Fiber 1/4in 7/16in 0.063in WASHER SHOULDER FIBRE WASHER Screws & Fasteners WASHER FOR 3501FP
$1.7884
Details
3501MCX
Switchcraft
RCA Phono Connectors PLUG W/ CABLE CLAMP CONN PLUG PHONO 2POS CABLE CLAMP Conn RCA M 2 POS Solder/Crimp ST Cable Mount 2 Terminal 1 Port
$7.7520
Details

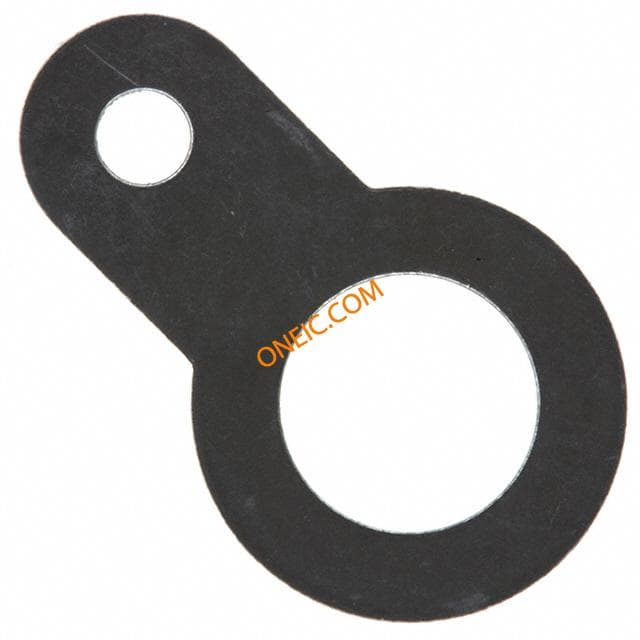

K176
