EVLVIP17-5WCHG
| Manufacturer | |
| Description | Demonstration Board For 5 W Low Standby Consumption Battery Charger Power Management IC Development Tools EVAL BOARD VIPER17 OL HIGH VOLT CONV BOARD EVAL FOR VIPER17 VIPER17HN, TSM1052, BATTERY CHARGER, DEMO BOARD |
| Category |
Business
| Product | Demonstration Boards | Product Category | Power Management IC Development Tools |
| Standard Package | Boxed | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85044055 |
Electrical
| Power - Output | 5W | Voltage Rating | 90 VAC to 264 VAC |
| Current - Output | 1 A | Number of Elements | :VIPER17HN |
| Regulator Topology | Flyback | Frequency - Switching | 115kHz |
| Voltage - Input (Min) | 5.1V | ||
Mechanical
| Weight | 0 | Packaging | Bulk |
| Board Thickness | Fully Populated | Size / Dimension | 53 mm x 26 mm |
Product Info
| Type | Development Kit | Contents | Board |
| Function | Battery charger (isolated flyback) | Kit Type | :Power Management - Battery |
| Main Purpose | AC/DC, Primary and Secondary Side | Outputs and Type | 1, Isolated |
| Tool Type Feature | VIPER17HN | Utilized IC / Part | TSM1052, VIPer17 |
| Chipset Manufacturer | :STMicroelectronics | Application Specifics | :Battery Charger |
Documents & Media
Similar Parts

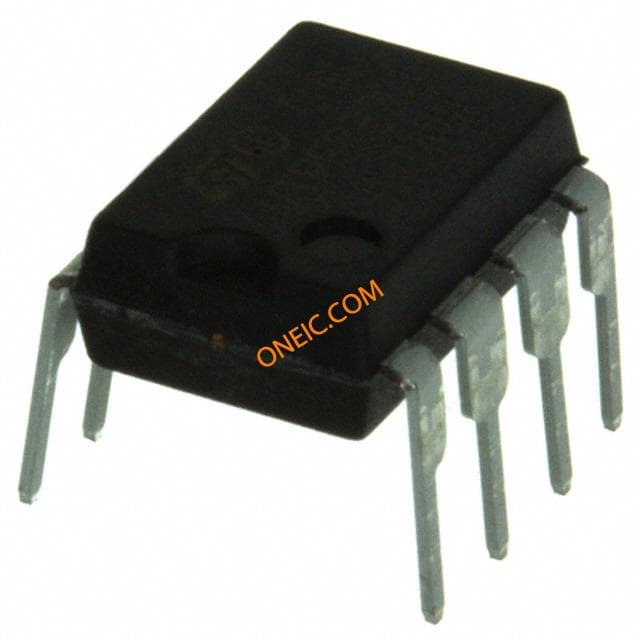

VIPER17HN
stmicroelectronics
High Voltage Converters 7-Pin PDIP Tube AC to DC Switching Converter Off-Line Switcher 103kHz to 127kHz 7-Pin PDIP IC OFFLINE CONV PWM OVP OCP 8DIP VIPER17HN, AC-DC Converter, 7-Pin, PDIP AC/DC Converters Off-Line High Volt Regulator 交直流转换器, 7引脚 PDIP封装
VIPER17LN
stmicroelectronics
High Voltage Converters 7-Pin PDIP Tube AC to DC Switching Converter Off-Line Switcher 54kHz to 66kHz 7-Pin PDIP SMPS DIP-7 THT IC OFFLINE CONV PWM OVP OCP 8DIP AC/DC Converters Off-Line High Volt Regulator AC/DC CONVERTER, 800V, 60KHZ, 7DIP DC-DC converter; DIP7 交直流转换器, 7引脚 PDIP封装

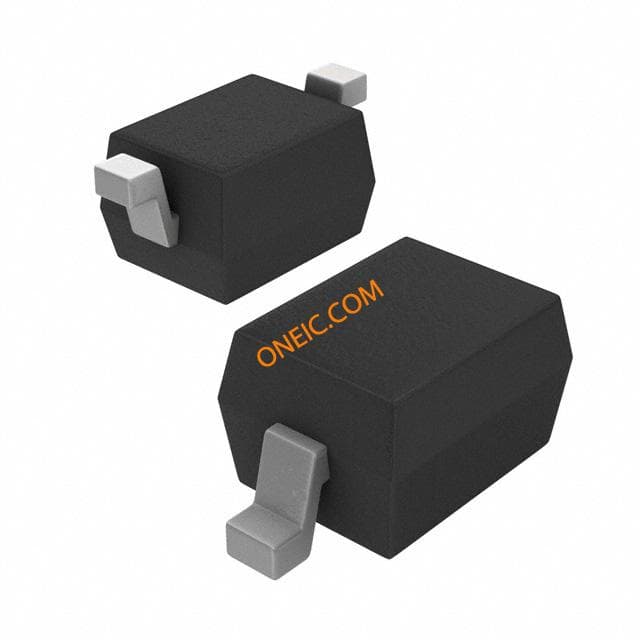

BAV21WS-TP
