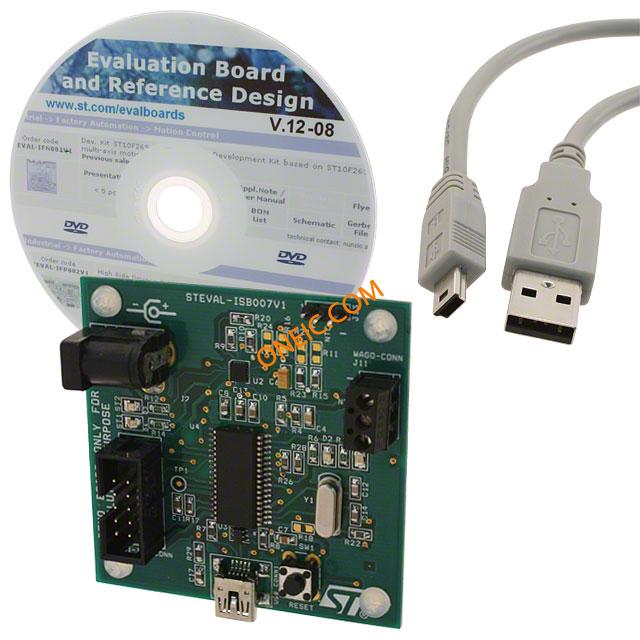

STEVAL-ISB007V1
| Manufacturer | |
| Description | Low Cost Li-Ion Battery Charger Demonstration Board Based On The ST7260 And L6924U Power Management IC Development Tools STANDALONE USB CHARGER ON L6924U BOARD DEMO BASED ST7260/L6924U ST7260, L6924U, LI ION BATTERY CHARGER, DEMO BOARD DEMO BOARD, L6924U LI-ION BATT CHARGER Li-Ion Battery Charger Demonstration Board based on ST7260 AND L6924U |
| Category |
Business
| Product | Power Management Modules | Product Category | Power Management IC Development Tools |
| Standard Package | Bulk | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85044090 |
Electrical
| Interface | USB | Voltage Rating | 5 V |
| Number of Elements | :ST7260 and L6924U | ||
Mechanical
| Weight | 0.000001 | Packaging | Bulk |
Product Info
| Type | Development Kit | Contents | Board |
| Embedded | Yes, MCU, 8-Bit | Features | :Can be used both in USB Mode and Adapter Mode, Uses LEDs to Indicate the Charging Condition Status |
| Kit Type | :Power Management - Battery | Kit Contents | :Demo Board L6924U, Microcontroller Firmware, User manual |
| Main Purpose | Power Management, Battery Charger | Tool Type Feature | ST7260, L6924U |
| Primary Attributes | 1 Cell- Li-Ion / Li-Pol, 4.2V @ 1A, USB Input, w/ Switch | Utilized IC / Part | L6924U, ST7260 |
| Chipset Manufacturer | :STMicroelectronics | Secondary Attributes | Safety Timer, Cell Temperature Monitoring, Can Use AC Supply |
| Application Specifics | :Battery Charger | ||
