USBLC6-2SC6
| Manufacturer | |
| Description | ESD Suppressor Diode Arrays 15KV 6-Pin SOT-23 T/R USB ESD PROTECTION SOT23-6L TVS DIODE 5.25VWM 17VC SOT23-6 TVS Diode Array Uni-Directional USBLC6-2SC6 17V, SOT-23 6-Pin TVS Diode Arrays ESD Protection Low Cap ESD PROTECTION, 3.5PF, 17V, SOT23 USBLC6-2SC6 Integrated circuit: ESD protection; SOT23-6 TVS diode, 1.1 V SOT-23-6L, USBLC6-2SC6, ST STMicroelectronics 单向 TVS 二极管阵列, 17V, 6针 SOT-23封装 ESD Suppressors / TVS Diodes ESD Protection Low Cap |
| Category |
Business
| MOQ | 1 | Unit Pack | 3000 |
| Other Names | 497-5235-1 | Product Category | TVS Diode Arrays |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
| Standard Package Name | SOT-23 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Automotive | NO | Rad Hardened | No |
| ESD Protection | 15@Air Gap/15@Contact Disc | Leadfree Defin | RoHS-conform |
Electrical
| Channels | 2 Channels | Data Rate | :480Mbps |
| Capacitance | 3.5 pF | Voltage Rating | 5 V |
| Current - Surge | 5 A | Voltage - Supply | 5.25V |
| Current - Leakage | 0.15uA | Voltage - Working | 5V |
| Number of Elements | 2 | Voltage - Clamping | 17 V |
| Current - Trip (It) | 1 mA | Diode Configuration | :SOT-23 |
| Voltage - Breakdown | 6V | Contact Voltage (Max) | 5V |
| Power Line Protection | Yes | Bidirectional Channels | 2 |
| Voltage - Supply (Min) | 5 V | Current - Peak Pulse (8/20us) | 5 A |
| Current - Reverse Leakage @ Vr | 0.15 uA | Current - Peak Pulse (10/1000us) | 5A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 5 V | ||
Mechanical
| Depth | 1.75 mm | Height | 1.3 mm |
| Weight | 0.0004 | Packaging | Tape and Reel |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :6 | Package / Case | SOT23-6L |
| Locking Feature | Diode Arrays | Material Finish | :- |
| Length - Overall | 3.05 mm | Package Quantity | SOT-23 |
| Size / Dimension | 1.75 (Max) mm W x 3.05 (Max) mm L | Termination Style | SMD/SMT |
| Number of Positions | 6 | Supplier Device Package | SOT-23-6 |
Product Info
| Spg | 3000 | USB | :2.0 |
| Type | Diode Arrays | Series | USBLC6-2 |
| Features | very low capacitance | Polarity | Bidirectional |
| Base Unit | :6 | Matchcode | USBLC6-2SC6 |
| Diode Type | :Low Capacitance, ESD Protection | Applications | Ethernet |
| Configuration | Dual | Port Direction | Uni-Directional |
| Number of Units | 1 | Standard Leadtime | 16 weeks |
Environmental
| Operating Temperature | -40 °C | Operating Temperature - Junction | 125C |
Documents & Media
Similar Parts
SP3003-02JTG
Littelfuse
TVS Diode Arrays 2 Ch 8kV 0.65pF SPA ESD Suppressor Diode Arrays ±15KV 5-Pin SC-70 T/R ESD Protection ARRAY SC70-5 TVS DIODE 6VWM 15VC SC705 ESD Suppressor Diode Arrays ?15KV 5-Pin SC-70 T/R DIODE, TVS, AVAL, 2 CH, SC70-5 DIODE, TVS, 6V, SC-70, FULL REEL Littelfuse 单向 TVS 二极管阵列, 15V, 5针 SC-70封装

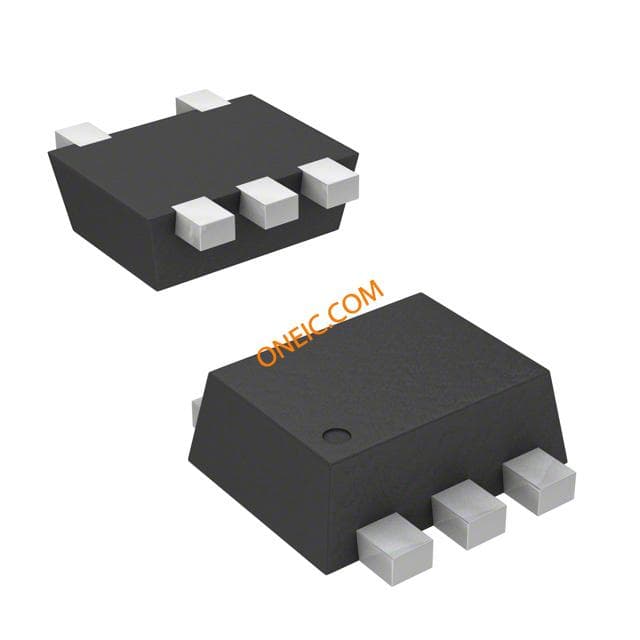

SP3003-02XTG
