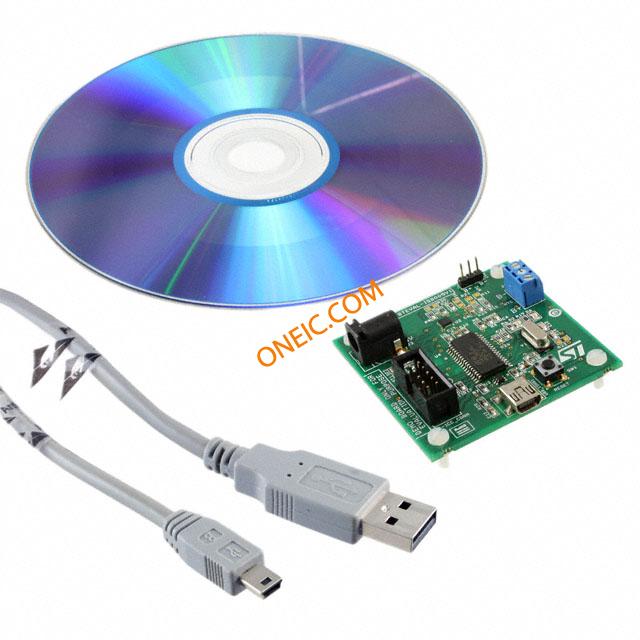

STEVAL-ISB005V1
| Manufacturer | |
| Description | Low-Cost Li-Ion Battery Charger Demonstration Board Based On The ST7260 And L6924D Power Management IC Development Tools LI-ION BTRY CHARGER ST7260 AND L6924D BOARD EVAL CHARGER ST7260/L6924D ST7260, L6924D, LI ION BATTERY CHARGER, DEMO BOARD DEMO BOARD, L6924D LI-ION BATT CHARGER |
| Category |
Business
| Product | Power Management Modules | Product Category | Power Management IC Development Tools |
| Standard Package | Bulk | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 84735080 |
Electrical
| Voltage Rating | 5 V | Number of Elements | :ST7263BK6 and L6924D |
Mechanical
| Weight | 0 | Packaging | Bulk |
Product Info
| Type | Development Kit | Contents | Board |
| Embedded | Yes, MCU, 8-Bit | Features | :Can be used both in USB Mode and Adapter Mode, Uses LEDs to Indicate the Charging Condition Status |
| Kit Type | :Power Management - Battery | Kit Contents | :Demo Board L6924D, Microcontroller Firmware, User manual |
| Main Purpose | Power Management, Battery Charger | Tool Type Feature | L6924D, ST7260 |
| Primary Attributes | 1 Cell- Li-Ion / Li-Pol, 5 V (USB Input) | Utilized IC / Part | L6924, ST72F63BK6M1 |
| Chipset Manufacturer | :STMicroelectronics | Secondary Attributes | Powered by Wall Adaptor Also, LED Status Indicators |
| Application Specifics | :Battery Charger | ||
