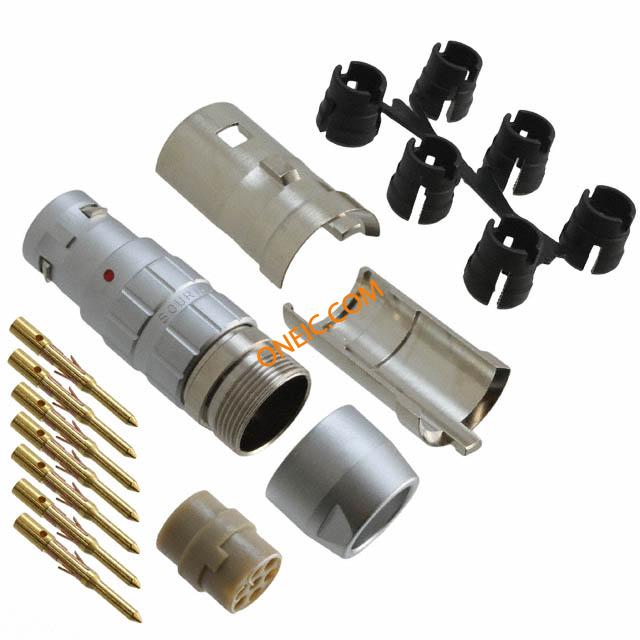

JBXFD2G07MCSDSR
| Manufacturer | |
| Description | Circular Push Pull Connectors 7P Strt Pin Plug Crimp Shell Size 2 CONN PLUG 7POS STR CABLE CRIMP JBXPLUGFD |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | JBX | Other Names | SOU1705 |
| Product Category | Circular Push Pull Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 00000000 |
Electrical
| Voltage Rating | 730VDC | Current Rating (Max) | 11A |
Mechanical
| Weight | 0 | Packaging | Bulk |
| Orientation | G | Shell Style | Plug |
| Termination | Crimp | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Fastening Type | Push-Pull | Termination Style | Crimp |
| Number of Contacts | 7 | Number of Positions | 7 |
| Shell Size - Insert | 2 | Shell Material, Finish | Brass, Chrome over Nickel |
| Contact Finish Thickness | 19.7µin (0.50µm) | ||
Product Info
| Series | JBX | Features | Cable Clamp, Shielded |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
Similar Parts
JBXEA2G07FCSDS
Souriau
Circular Push Pull Connectors 6P Socket Receptacle Crimp Shell Size 2 CONN RCPT 7POS DOUBLE NUT CRIMP JBXRECEPTACLEEA
$172.1400
Details
JBXEA2G07FSSDS
Souriau
Circular Push Pull Connectors 6P Socket Receptacle Solder Shell Size 2 Conn Push-Pull SKT 7 POS Solder ST Panel Mount 7 Terminal 1 Port Blister CONN RCPT 7POS DOUBLE NUT SOLDER JBXRECEPTACLEEA
$163.0800
Details

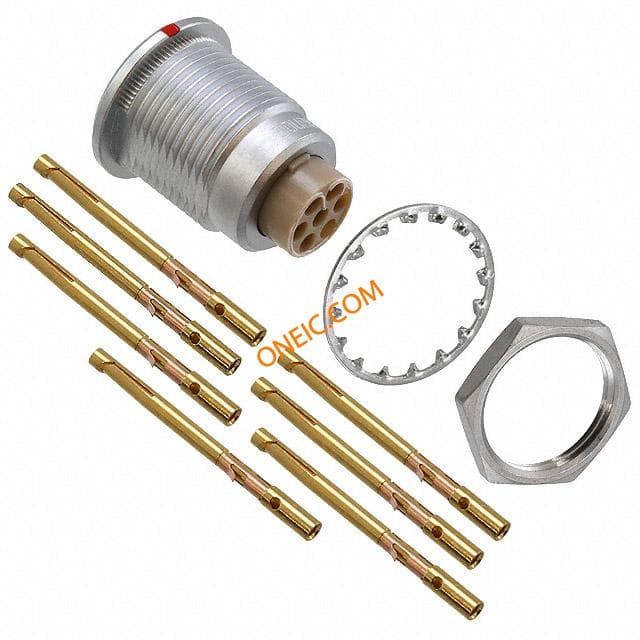

JBXER2G07FCSDSR
