JBXEA2G07FCSDS

Manufacturer	SOURIAU SAS
Description	Circular Push Pull Connectors 6P Socket Receptacle Crimp Shell Size 2 CONN RCPT 7POS DOUBLE NUT CRIMP JBXRECEPTACLEEA
Category	Connector SolutionsCircular ConnectorsIndustrial Circular Connectors

对参数有疑问？问 AI 助手

Business

Tradename	JBX	Other Names	SOU1605
Product Category	Circular Push Pull Connectors	Standard Package	1
Factory Pack Quantity	1

Compliance

RoHS

RoHS Compliant

Electrical

Voltage Rating

730VDC

Current Rating (Max)

11A

Mechanical

Packaging	Bulk	Shell Size	2
Wire Gauge	18	Orientation	G
Shell Style	Receptacle	Termination	Crimp
Mounting Type	Panel Mount, Bulkhead - Front or Rear Side Nut	Shell Plating	Chrome over Nickel
Connector Type	Receptacle, Female Sockets	Contact Finish	Gold
Fastening Type	Push-Pull	Mounting Style	Panel
Shell Material	Hybrid	Termination Style	Crimp
1st Contact Gender	Socket (Female)	Number of Contacts	7
Number of Positions	7	Shell Size - Insert	2
Shell Material, Finish	Brass, Chrome over Nickel	Contact Finish Thickness	19.7µin (0.50µm)

Product Info

Series	JBX	Features	Shielded
Product Type	Connectors

Environmental

Ingress Protection

IP40

Operating Temperature

-55°C ~ 125°C

Documents & Media

PDF Document

JBX, JAX, JKX Series

Similar Parts

JBX2RIN

Souriau

Circular Push Pull Connectors Insulating Washer JBX Size 2, Black INSULATING WASHER CONN WASHER SIZE 2 INSULATE BLK

$9.0440

Details

JBXFD2G07MSSDSMR

Souriau

Circular Push Pull Connectors 7P Strt Pin Plug Solder Shell Size 2 Conn Push-Pull M 7 POS Solder ST Cable Mount 7 Terminal 1 Port CONN PLUG 7POS STRAIGHT SOLDER JBXPLUGFD

$248.4720

Details

JBXFD2G07MCSDSMR

Souriau

Circular Push Pull Connectors 7P Strt Pin Plug Crimp Shell Size 2 Conn Push-Pull M 7 POS Crimp ST Cable Mount 7 Terminal 1 Port CONN PLUG 7POS STRAIGHT CRIMP JBXPLUGFD

$250.5120

Details

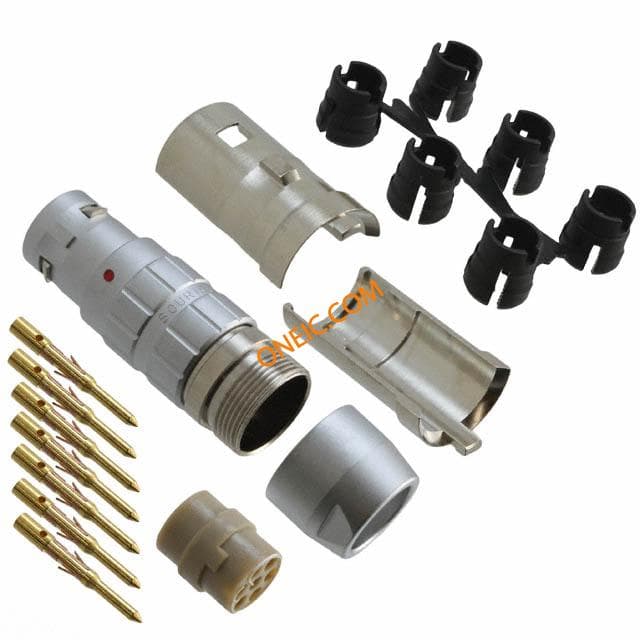

JBXFD2G07MCSDSR
