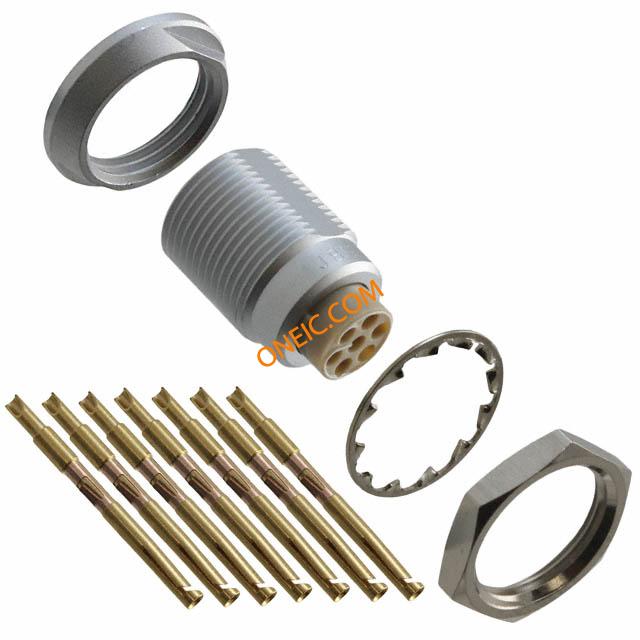

JBXEA2G07FSSDS
| Manufacturer | |
| Description | Circular Push Pull Connectors 6P Socket Receptacle Solder Shell Size 2 Conn Push-Pull SKT 7 POS Solder ST Panel Mount 7 Terminal 1 Port Blister CONN RCPT 7POS DOUBLE NUT SOLDER JBXRECEPTACLEEA |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | JBX | Other Names | SOU1606 |
| Product Category | Circular Push Pull Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Release Range | No | Voltage Rating | 730VDC |
| Current Rating (Max) | 11A | ||
Mechanical
| Length | 24 | End Style | Solder |
| Packaging | Blister | Shell Size | 2 |
| Wire Gauge | 20 | Orientation | Straight |
| Shell Style | Receptacle | Termination | Solder Cup |
| Contact Form | 7Signal | Shell Finish | Chrome Over Nickel |
| Mounting Type | Panel Mount, Bulkhead - Front or Rear Side Nut | Shell Plating | Chrome over Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold Over Nickel |
| Fastening Type | Push-Pull | Mounting Style | Panel |
| Shell Material | Hybrid | Contact Material | Copper Nickel |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Diameter - Outside | 20 | Number of Contacts | 7 |
| Number of Positions | 7 | Shell Size - Insert | 2 |
| Shell Material, Finish | Brass, Chrome over Nickel | Contact Finish Thickness | 19.7µin (0.50µm) |
Product Info
| Type | Push-Pull | Gender | RCP |
| Series | JBX | Features | Shielded |
| Product Type | Connectors | Assembly Configuration | Panel Mount |
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
