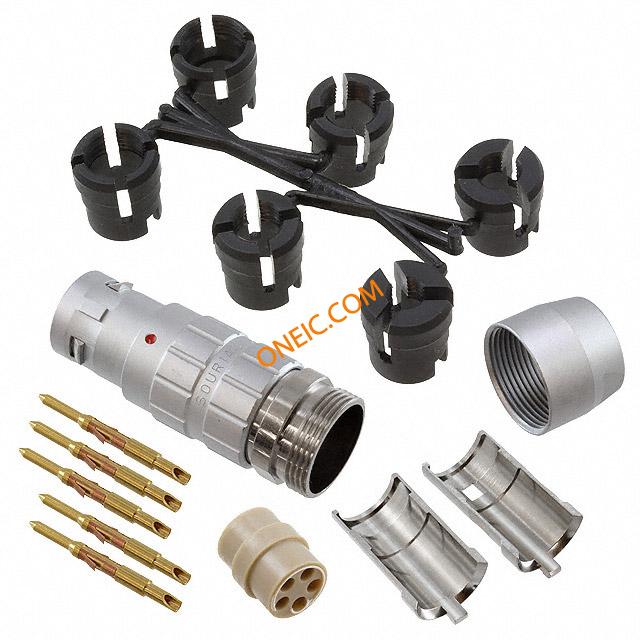

JBXFD2G05MSSDSR
| Manufacturer | |
| Description | Circular Push Pull Connectors 5P Strt Pin Plug Solder Shell Size 2 Conn Push-Pull M 5 POS Solder ST Cable Mount 5 Terminal 1 Port CONN PLUG 5POS STR CABLE SOLDER CIRCULARPUSHPULLCONNECTOR,PLUG,SHELL2,5P,SOLDER |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | SOU1704 | Product Category | Circular Push Pull Connectors |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 900VDC | Current Rating (Max) | 14A |
Mechanical
| Size | 2 | Diameter | 15 |
| Packaging | Bulk | Cable Exit | No |
| Shell Size | 2 | Wire Gauge | 20 |
| Orientation | G | Shell Style | Plug |
| Termination | Solder | Contact Type | 5Signal |
| Mounting Type | Cable Mount | Shell Plating | Chrome Over Nickel |
| Connector Type | Plug, Male Pins | Contact Finish | Gold Over Nickel |
| Fastening Type | Push-Pull | Mounting Style | Cable |
| Shell Material | Hybrid | Contact Material | Brass |
| Length - Overall | 52 | Termination Style | Solder |
| 1st Contact Gender | M | Number of Contacts | 5 |
| Number of Positions | 5 | Shell Size - Insert | 2 |
| Shell Material, Finish | Brass, Chrome over Nickel | Contact Finish Thickness | 19.7µin (0.50µm) |
Product Info
| Type | Push-Pull | Gender | PL |
| Series | JBX | Features | Cable Clamp, Shielded |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
Similar Parts
JBXEA2G05FSSDS
Souriau
Circular Push Pull Connectors 5P Socket Receptacle Solder Shell Size 2 Conn Push-Pull SKT 5 POS Solder ST Panel Mount 5 Terminal 1 Port Blister CONN RCPT 5POS DOUBLE NUT SOLDER JBXRECEPTACLEEA
$226.5760
Details

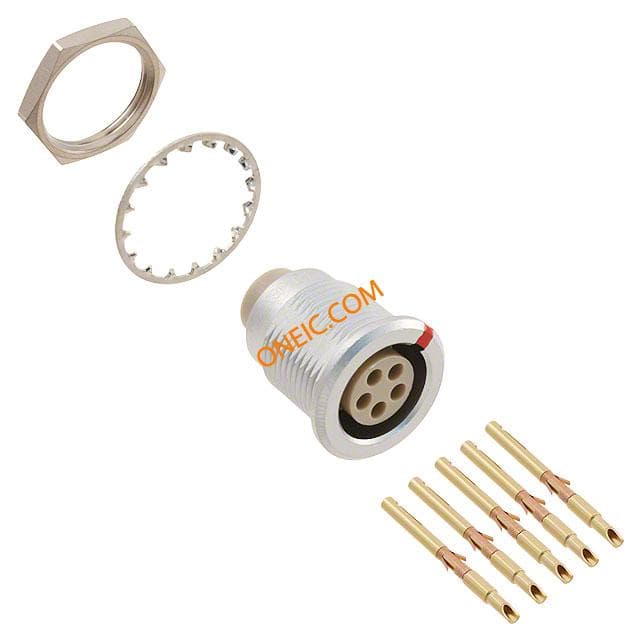

JBXER2G05FSSDSR
Souriau
Circular Push Pull Connectors 5P Socket Receptacle Solder Panel Mt Sz 2 CONN RCPT 5POS FRONT MNT SOLDER JBXrecept2-05red
$213.6560
Details

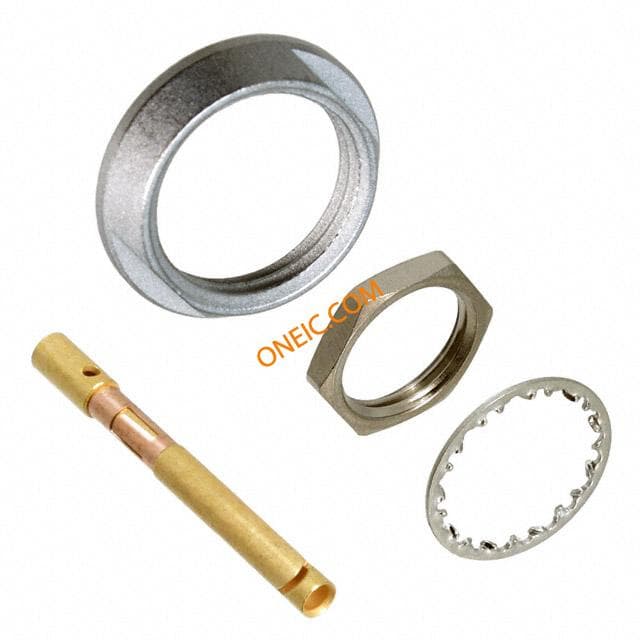

JBXEA2G05FCSDS
