点击放大查看

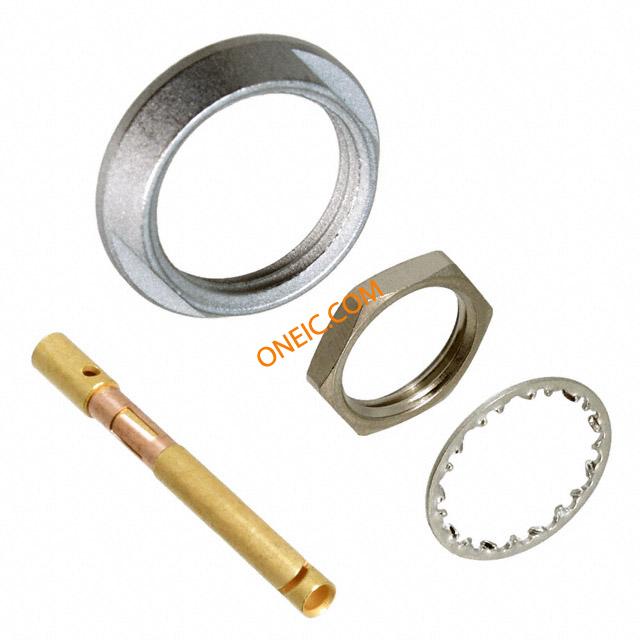

JBXEA2G05FCSDS
| Manufacturer | |
| Description | Circular Push Pull Connectors 4P Socket Receptacle Crimp Shell Size 2 CONN RCPT 5POS DOUBLE NUT CRIMP JBXRECEPTACLEEA |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | JBX | Other Names | SOU1603 |
| Product Category | Circular Push Pull Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 900VDC | Current Rating (Max) | 14A |
Mechanical
| Packaging | Bulk | Shell Size | 2 |
| Wire Gauge | 18 | Orientation | G |
| Shell Style | Receptacle | Termination | Crimp |
| Mounting Type | Panel Mount, Bulkhead - Front or Rear Side Nut | Shell Plating | Chrome over Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Push-Pull | Mounting Style | Panel |
| Shell Material | Hybrid | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 5 |
| Number of Positions | 5 | Shell Size - Insert | 2 |
| Shell Material, Finish | Brass, Chrome over Nickel | Contact Finish Thickness | 19.7µin (0.50µm) |
Product Info
| Series | JBX | Features | Shielded |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
