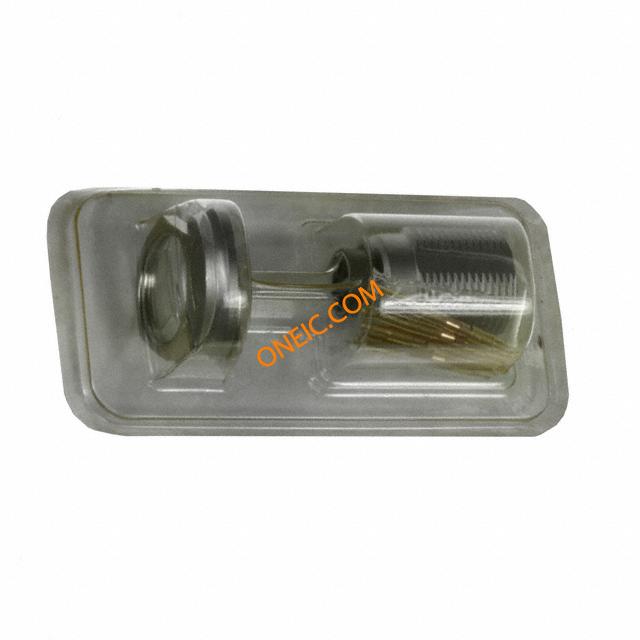

JBXEA2G05FSSDS
| Manufacturer | |
| Description | Circular Push Pull Connectors 5P Socket Receptacle Solder Shell Size 2 Conn Push-Pull SKT 5 POS Solder ST Panel Mount 5 Terminal 1 Port Blister CONN RCPT 5POS DOUBLE NUT SOLDER JBXRECEPTACLEEA |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | JBX | Other Names | SOU1604 |
| Product Category | Circular Push Pull Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 900VDC | Current Rating (Max) | 14A |
Mechanical
| Diameter | 20 | Packaging | Blister |
| Cable Exit | No | Shell Size | 2 |
| Wire Gauge | 20 | Orientation | G |
| Shell Style | Receptacle | Termination | Solder |
| Contact Type | 5Signal | Mounting Type | Panel Mount |
| Shell Plating | Chrome Over Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold Over Nickel | Fastening Type | Push-Pull |
| Mounting Style | Panel | Shell Material | Hybrid |
| Contact Material | Copper Nickel | Length - Overall | 24 |
| Termination Style | Solder | 1st Contact Gender | SKT |
| Number of Contacts | 5 | Number of Positions | 5 |
| Shell Size - Insert | 2 | Shell Material, Finish | Brass, Chrome over Nickel |
| Contact Finish Thickness | 19.7µin (0.50µm) | ||
Product Info
| Type | Push-Pull | Gender | RCP |
| Series | JBX | Features | Shielded |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
Similar Parts

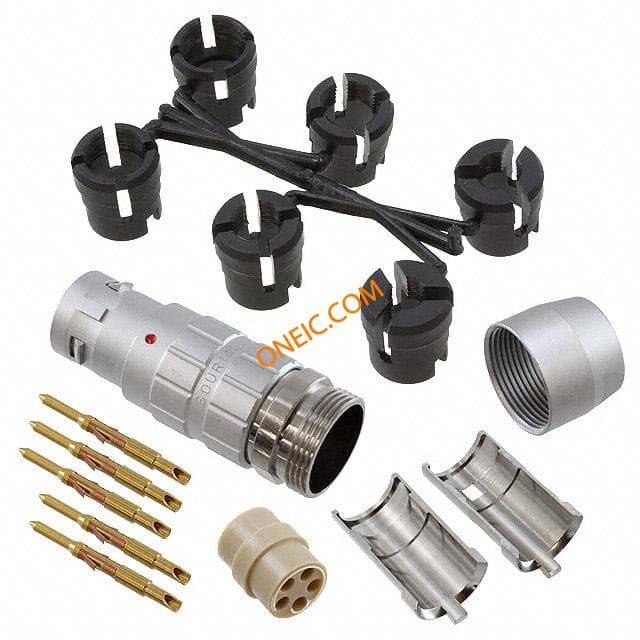

JBXFD2G05MSSDSR
