点击放大查看

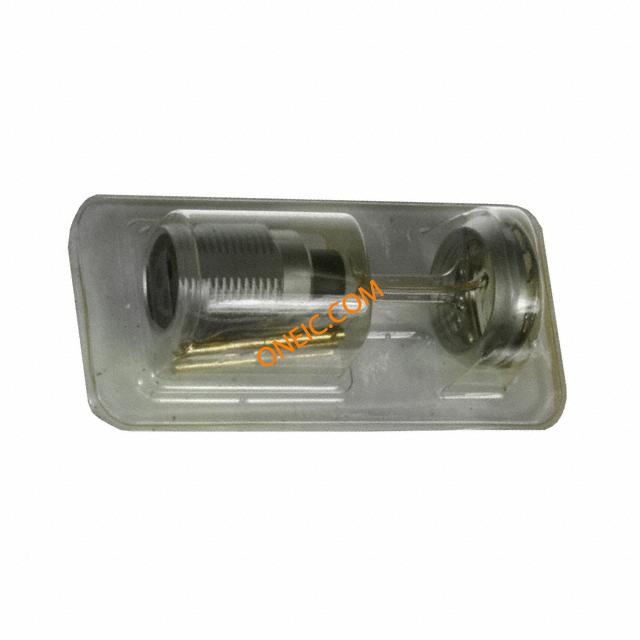

JBXEA2G03FCSDS
| Manufacturer | |
| Description | Circular Push Pull Connectors 3P Socket Receptacle Crimp Shell Size 2 CONN RCPT 3POS DOUBLE NUT CRIMP JBXRECEPTACLEEA |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | JBX | Other Names | SOU1601 |
| Product Category | Circular Push Pull Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 830VDC | Current Rating (Max) | 17A |
Mechanical
| Packaging | Bulk | Orientation | G |
| Shell Style | Receptacle | Termination | Crimp |
| Mounting Type | Panel Mount, Bulkhead - Front or Rear Side Nut | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Number of Contacts | 3 | Number of Positions | 3 |
| Shell Size - Insert | 2 | Shell Material, Finish | Brass, Chrome over Nickel |
| Contact Finish Thickness | 19.7µin (0.50µm) | ||
Product Info
| Series | JBX | Features | Shielded |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
