点击放大查看

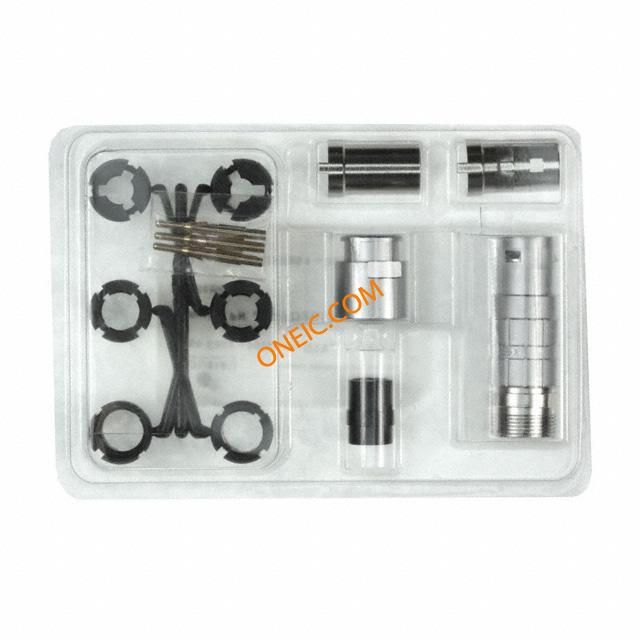

JBXFD2G03MSSDSMR
| Manufacturer | |
| Description | Circular Push Pull Connectors 3P Strt Pin Plug Solder Shell Size 2 Conn Push-Pull M 3 POS Solder ST Cable Mount 3 Terminal 1 Port CONN PLUG 3POS STRAIGHT SOLDER JBXPLUGFD |
| Category |
Business
| Tradename | JBX | Other Names | SOU1562 |
| Product Category | Circular Push Pull Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 830VDC | Current Rating (Max) | 17A |
Mechanical
| Diameter | 15 | Packaging | Bulk |
| Cable Exit | No | Shell Size | 2 |
| Wire Gauge | 18 | Orientation | G |
| Shell Style | Plug | Termination | Solder |
| Contact Type | 3Signal | Mounting Type | Cable Mount |
| Shell Plating | Chrome Over Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold Over Nickel | Fastening Type | Push-Pull |
| Mounting Style | Cable | Shell Material | Hybrid |
| Contact Material | Brass | Length - Overall | 52 |
| Termination Style | Solder | 1st Contact Gender | M |
| Number of Contacts | 3 | Number of Positions | 3 |
| Shell Size - Insert | 2 | Shell Material, Finish | Brass, Chrome over Nickel |
| Contact Finish Thickness | 19.7µin (0.50µm) | ||
Product Info
| Type | Push-Pull | Gender | PL |
| Series | JBX | Features | Cable Clamp, Shielded |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
Similar Parts
JBXER2G03FSSDSR
Souriau
Circular Push Pull Connectors 3P Socket Receptacle Solder Panel Mt Sz 2 CONN RCPT 3POS FRONT MNT SOLDER JBXrecept2-03red

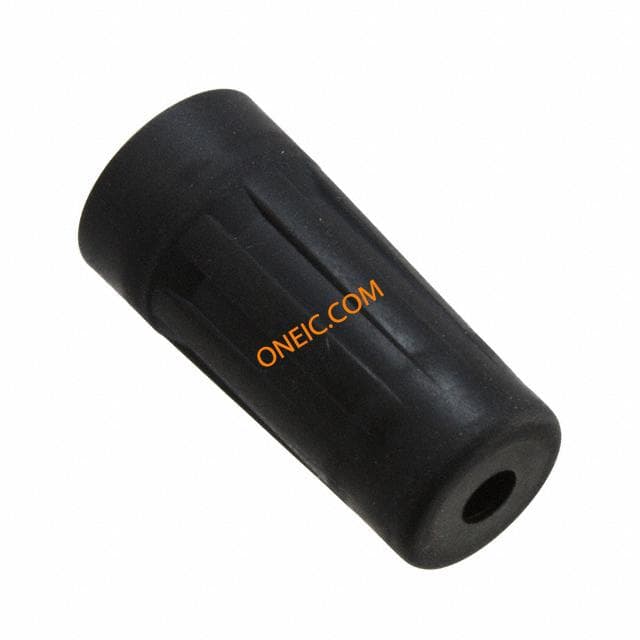

JBX2MPN
Souriau
Circular Push Pull Connectors JBX Protective Boot Shell Size 2, Black Connector Accessories Protective Boot Elastollan Black Shell Size 2 CONN BOOT PROTECTIVE SIZE 2 BLK CIRCULARPUSHPULLCONNECTOR,PROTECTIVEBOOT,BLACK
JBX2MPA
Souriau
Circular Push Pull Connectors JBX Protective Boot Shell Size 2, Blue CONN BOOT PROTECTIVE SIZE 2 BLUE 335D7023F5

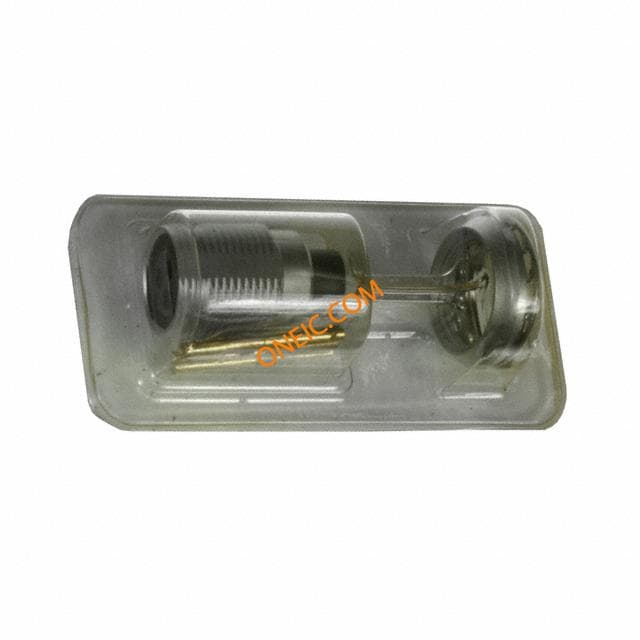

JBXEA2G03FCSDS
