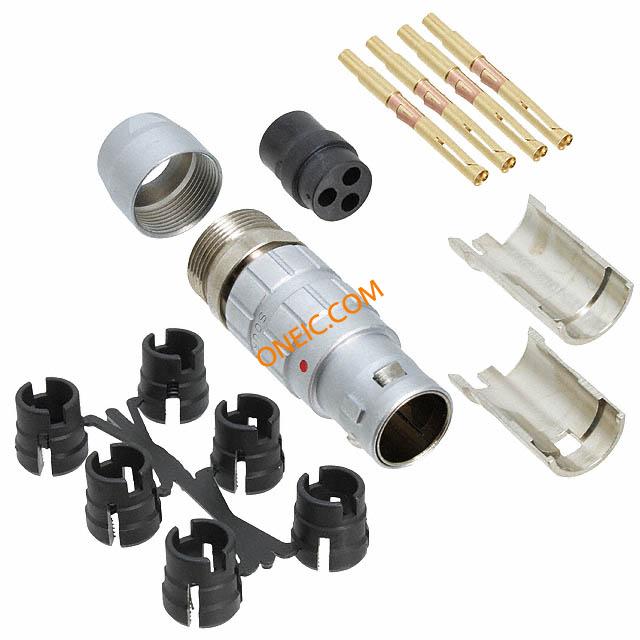

JBXFD2G03MSSDSR
| Manufacturer | |
| Description | Circular Push Pull Connectors 3P Strt Pin Plug Solder Shell Size 2 CONN PLUG 3POS STR CABLE SOLDER JBXPLUGFD |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | JBX | Other Names | SOU1721 |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 830VDC | Current Rating (Max) | 17A |
Mechanical
| Packaging | Bulk | Orientation | G |
| Termination | Solder Cup | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Fastening Type | Push-Pull | Number of Positions | 3 |
| Shell Size - Insert | 2 | Shell Material, Finish | Brass, Chrome over Nickel |
| Contact Finish Thickness | 19.7µin (0.50µm) | ||
Product Info
| Features | Cable Clamp, Shielded | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
Similar Parts
JBXER2G03FSSDSR
Souriau
Circular Push Pull Connectors 3P Socket Receptacle Solder Panel Mt Sz 2 CONN RCPT 3POS FRONT MNT SOLDER JBXrecept2-03red
$215.4791
Details

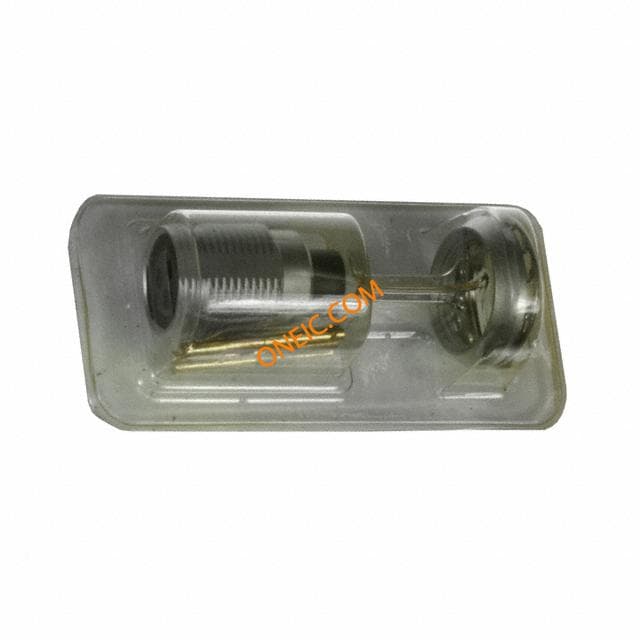

JBXEA2G03FCSDS
