GSM28-5G
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 5.1V 5.5A 28W 7-Pin PS MEDICAL 28W 5.1V 5.5A PowerSupply;AC-DC;5.1V@5.5A;85-264VIn;OpenFrame;PnlMnt;Switching;GSM28Series |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Approval Agency | CE, EN, TUV, UL |
Electrical
| Output | 5.1VDC@5.5A | Frequency | 47 to 63 Hz |
| Operation | Switching | Efficiency | 70(Min) % |
| Power - Max | 28 W | Power (Watts) | 28W |
| Power - Output | 28.05W | Voltage Rating | 85 to 264 V |
| Load Regulation | 0.75% | Current - Output | 5.5 A |
| Number of Outputs | 1 | Power Supply Type | Switching (Open Frame) |
| Power (Watts) - Max | 28W | Current Rating (Max) | 0.85 A |
| Voltage - Input (Min) | 5.1V | ||
Mechanical
| Mounting Type | Chassis Mount | Mounting Style | Panel |
| Primary Material | AC-DC | Size / Dimension | 4.00" L x 2.59" W x 0.92" H (101.6mm x 65.8mm x 23.4mm) |
Product Info
| Type | Switching | Features | OvervoltageProtectionStandard,LowLeakageCurrent |
| Applications | Medical | Manufacturer | GSM28Series |
| Configuration | OpenFrame | ||
Environmental
| Operating Temperature | 0 to 50 °C | ||
Documents & Media
Similar Parts
08-30466-0028
sl power electronics
COVER FOR GSM28 POWER SUPPLY
640250-4
te connectivity / amp
Conn Housing RCP 4 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 4 POS W/RAMP SL-156 4w housing without polarising tabs Headers & Wire Housings 4P HSG W/LCK RMP SL156 Conn Housing RCP 4 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 4Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 0.156", 4WAY Connector;Receptacle;4;Crimp;LockingRamp;180deg;Nylon;SL-156Housings Socket housing, straight 4P, 640250-4, TE Connectivity TE Connectivity SL-156 系列 3.96mm 节距 4 路 直 母 电缆安装 压接连接器外壳 04P SL156 HSG W/LCK RAMP NATL
640250-5
te connectivity / amp
Conn Housing RCP 5 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 5 POS W/RAMP SL-156 5w housing without polarising tabs Headers & Wire Housings 5P HSG W/LCK RMP SL156 Conn Housing RCP 5 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 5Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Receptacle;5;Crimp;LockingRamp;180deg;Nylon;SL-156Housings Socket housing, straight 5P, 640250-5, TE Connectivity TE Connectivity SL-156 系列 3.96mm 节距 5 路 直 母 电缆安装 压接连接器外壳 05P SL156 HSG W/LCK RAMP NATL

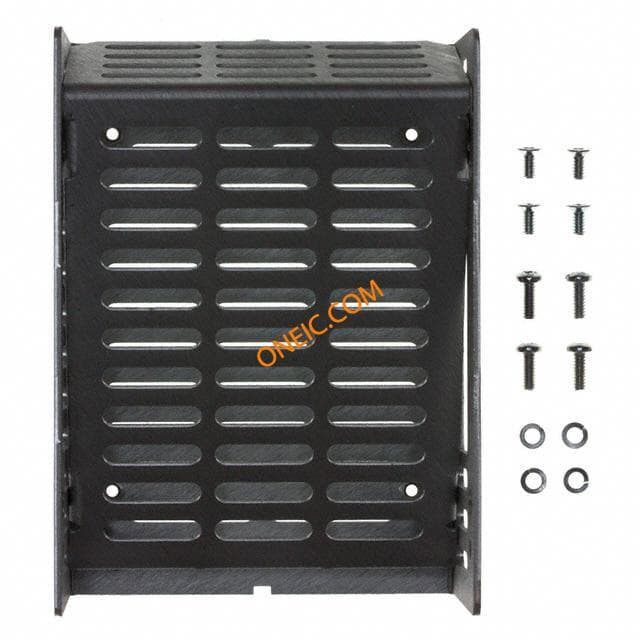

08-30466-0028G
