640250-4
| Manufacturer | |
| Description | Conn Housing RCP 4 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 4 POS W/RAMP SL-156 4w housing without polarising tabs Headers & Wire Housings 4P HSG W/LCK RMP SL156 Conn Housing RCP 4 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 4Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 0.156", 4WAY Connector;Receptacle;4;Crimp;LockingRamp;180deg;Nylon;SL-156Housings Socket housing, straight 4P, 640250-4, TE Connectivity TE Connectivity SL-156 系列 3.96mm 节距 4 路 直 母 电缆安装 压接连接器外壳 04P SL156 HSG W/LCK RAMP NATL |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | UL94V-0FlammabilityRating,RoHSCompliant,ELVCompliant |
| Tariff No | 85369010 | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | CSA,UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - SL-156 Series | Voltage Rating | 250 V |
| Switch Function | Locking Ramp | Current Rating (Max) | 5 A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Natural | Depth | 16.76mm |
| Pitch | 3.96 mm | Width | 7.27mm |
| Height | 7.27 mm | Length | 15.77mm |
| Weight | 0.01 | Packaging | Bulk |
| Shrouding | No | Cable Exit | 180° |
| Wire Gauge | 16-24 AWG | Row Spacing | 0.156in. |
| Termination | :Crimp | Contact Type | Female Socket |
| 2nd Connector | With | Housing Color | White |
| Mounting Type | Straight | Angle of Throw | Straight |
| Connector Type | Crimp | Contact Finish | :Tin |
| Fastening Type | Locking Ramp | Mounting Style | Free Hanging |
| Number of Rows | 1 | Connector Usage | Receptacle |
| Locking Feature | Locking Ramp | Contact Material | :Phosphor Bronze |
| Housing Material | Nylon | Length - Overall | 15.77 mm |
| Mounting Feature | Without | Panel Mount Type | Without |
| Primary Material | WiretoBoard | Wire Termination | Crimp |
| Pin Hole Diameter | 0.156" | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Without |
| Number of Contacts | 4 | Contact Termination | Crimp |
| Insulation Diameter | Standard | Number of Positions | 4 |
| Contact Layout, Typical | 3.96 [0.156] | 1st Connector Mounting Type | :PCB |
Product Info
| Note | Recommended contact: Part No. 640252-1,-2 and Part No. 770476-1,-2. | Type | Housing |
| Gender | RCP | Series | SL-156 |
| CAD Drawing | 3D CAD Model | Manufacturer | AMP |
| Product Type | SL-156 Housings | Application Specifics | Wire-to-Board |
| For Use With/Related Products | Wire-to-Board Economy Power Connector | ||
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
640445-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 4P Square post tin Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, HEADER, THT, 3.96MM, 4WAY Connector,MTA-156;Male;4;CopperAlloy;7;600;0.156in.;Polyester;White Connector: wire-board; Series: MTA-156; 3.96mm; male; socket; PIN:4 Pin header straight 4P, 640445-4, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 04P MTA156 HDR ASSY FL/STR SN
644759-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS VERT .156 GOLD
644753-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .156 TIN Header Vertical 4 way Pin MTA-156 Headers & Wire Housings HDR 04P VRT F-LOCK Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HeaderVertical4wayPinMTA-156 TE Connectivity MTA-156 系列 3.96mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 04P MTA156 HDR ASSY RN STR F/L
644751-4
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 4POS .156 TIN Headers & Wire Housings 4P HDR ASSY R/A Conn Unshrouded Header HDR 4 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 HDR ASSY R/A
641210-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 4POS 30AU Headers & Wire Housings FRCTN LK HDR RA 4P Square post gold Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 HRD FL RA FB 30AU
640389-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 4POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR RA 4P Square post tin Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, RIGHT ANGLE, 0.156", 4WAY Connector,MTA-156;Male;4;CopperAlloy;7;600;0.156in.;Polyester;White Pin strip 90° 4P, 640389-4, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 7A , 通孔 04P MTA156 HDR ASSY SQ R/A F/L
644760-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS VERT .156 GOLD
641202-4
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS STR .156 30GOLD Headers & Wire Housings 04P MTA156 HDR ASSY PL ST 30AU 04P MTA156 HDR ASSY PL ST 30AU 04P MTA156 HDR ASSY PL ST 30AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
640385-4
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 4POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 4P Square post tin Conn Unshrouded Header HDR 4 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 HDR ASSY SQ R/A
644754-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS R/A .156 TIN Headers & Wire Housings 04P MTA156 HDR ASSY SQ R/A F/L MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
640388-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .156 TIN Headers & Wire Housings FRCTN LK HDR STR 4P Round post tin Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, 4WAY, VERTICAL Connector,MTA-156;Male;4;CopperAlloy;7;600;0.156in.;Polyester;White 04P MTA156 HDR ASSY RN STR F/L
3-641210-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 4POS 30AU Headers & Wire Housings FRCTN LK HDR RA 4P Square post gold Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 4POS, 3.96MM 04P MTA156 HDR FLRA FB 30AU LF
644752-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .156 TIN Headers & Wire Housings 04P MTA156 HDR ASSY Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 4POS, 3.96MM MTA-156HEADER-TIN,04PMTA156HDRASSYSQSTRF/L 04P MTA156 HDR ASSY SQ STR F/L
641208-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .156 4POS 30AU Headers & Wire Housings FRCTN LK HDR STR 4P Square post gold Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 HDR ASSY FL ST 30AU
3-641208-4
te connectivity / amp
Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS .156 30 GOLD Headers & Wire Housings FRCTN LK HDR STR 4P Square post gold Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 4POS, 3.96MM MTA-156HEADERGOLD,04PMTA156HDRASSYFLST30AU TE Connectivity MTA-156 系列 3.96mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 7A 04P MTA156 HDR ASSY FL ST 30AU

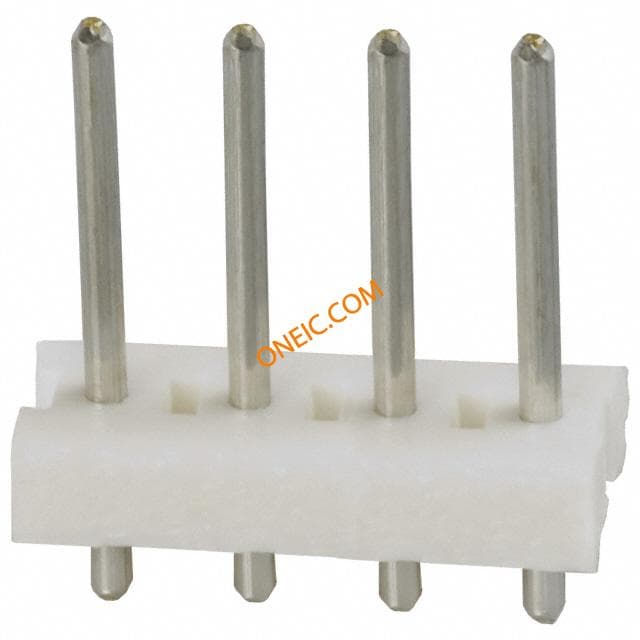

640384-4
