640250-5
| Manufacturer | |
| Description | Conn Housing RCP 5 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 5 POS W/RAMP SL-156 5w housing without polarising tabs Headers & Wire Housings 5P HSG W/LCK RMP SL156 Conn Housing RCP 5 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 5Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Receptacle;5;Crimp;LockingRamp;180deg;Nylon;SL-156Housings Socket housing, straight 5P, 640250-5, TE Connectivity TE Connectivity SL-156 系列 3.96mm 节距 5 路 直 母 电缆安装 压接连接器外壳 05P SL156 HSG W/LCK RAMP NATL |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | UL94V-0FlammabilityRating,RoHSCompliant,ELVCompliant |
| UL Rating | 已获认证 | Leadfree Defin | Not relevant for lead free process |
| UL File Number | E28476 | Approval Agency | CSA,UL |
| CSA File Number | LR 7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 | Number of Poles | 5 |
| Voltage - Supply | 250 VAC | Connector Impedance | 压接 |
| Current Rating (Max) | 10/Contact A | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Natural | Depth | 16.76mm |
| Pitch | 3.96 mm | Width | 7.27mm |
| Height | 7.27 mm | Length | 19.74mm |
| Packaging | Bulk | Shrouding | No |
| Body Color | 自然 | Cable Exit | 180° |
| Wire Gauge | 16-24 AWG | Orientation | 直 |
| Row Spacing | 0.156in. | Termination | Crimp |
| Contact Type | Female Socket | 2nd Connector | With |
| Housing Color | White | Mounting Type | Straight |
| Angle of Throw | Straight | Connector Type | Crimp |
| Fastening Type | Locking Ramp | Mounting Style | 不带 |
| Number of Rows | 1 | Shell Material | 标准 |
| Connector Usage | Receptacle | Height (Inches) | 6.35 |
| Locking Feature | Locking Ramp | Contact Material | CuSn |
| Housing Material | Nylon | Length - Overall | 19.74 mm |
| Mounting Feature | Without | Package Quantity | 500 |
| Panel Mount Type | Without | Primary Material | WiretoBoard |
| Wire Termination | Crimp | Pin Hole Diameter | 0.156" |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Without | Number of Contacts | 5 |
| Termination Finish | 不带 | Contact Termination | Crimp |
| Insulation Diameter | Standard | Number of Positions | 5 |
| 1st Connector Gender | Female | Compatible Shell Size | SL .156 端子 |
| Mounting Hole Diameter | 不带 | Contact Layout, Typical | 3.96 [0.156] |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | Recommended contact: Part No. 640252-1,-2 and Part No. 770476-1,-2. | Type | Housing |
| Gender | RCP | Series | SL-156 |
| Sealable | 否 | CAD Drawing | 3D CAD Model |
| Manufacturer | AMP | Product Type | SL-156 Housings |
| Amplifier Type | 19.81 | Application Specifics | Wire-to-Board |
| For Use With/Related Products | Wire-to-Board Economy Power Connector | ||
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts

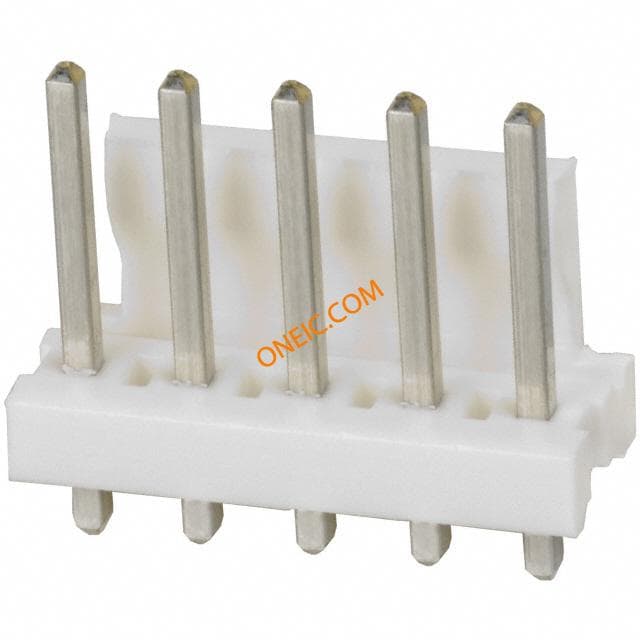

640389-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 5POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 5 Way 1 Row Right Angle PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR RA 5P Square post tin Conn Wire to Board HDR 5 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, HEADER, R/A, 3.96MM, 5WAY HEADERASSEMBLY,MTA-156,5POSITION,SQUARE,RIGHTANGLE TE Connectivity MTA-156 系列 3.96mm节距 5路 (1排) 直角 PCB 针座, 焊接端接, 7A , 通孔 05P MTA156 HDR ASSY SQ R/A F/L
640445-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 5POS .156 TIN Headers & Wire Housings FRCTN LK HDR STR 5P Square post tin Conn Wire to Board HDR 5 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.156", 5WAY Connector,MTA-156;Male;5;CopperAlloy;7;600;0.156in.;Polyester;White Connector: wire-board; Series: MTA-156; 3.96mm; male; socket; PIN:5 Pin header straight 5P, 640445-5, TE Connectivity 05P MTA156 HDR ASSY FL/STR SN
640384-5
te connectivity / amp
Conn Unshrouded Header HDR 5 POS 3.96mm Solder ST Thru-Hole Headers & Wire Housings FLAT HEADER STRT 5P Round post tin MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 5POS .156 TIN Conn Unshrouded Header HDR 5 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA156 HDR ASSY STR RND SN
644611-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 5POS .156 TIN Headers & Wire Housings 05P MTA156 HDR POL STR WO PEGS MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
641202-5
te connectivity / amp
Conn Unshrouded Header HDR 5 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS STR .156 30GOLD
644613-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS R/A .156 TIN Headers & Wire Housings RA 5P HEADER MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-641208-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS .156 30 GOLD TE Connectivity MTA-156 Series 3.96mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 5P Square post gold Conn Wire to Board HDR 5 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-156VerticalPinHeader,5way TE Connectivity MTA-156 系列 3.96mm节距 5路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 05P MTA156 HDR ASSY FL ST LF
644753-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 5POS .156 TIN Conn Wire to Board HDR 5 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA156 HDR ASSY RN STR F/L

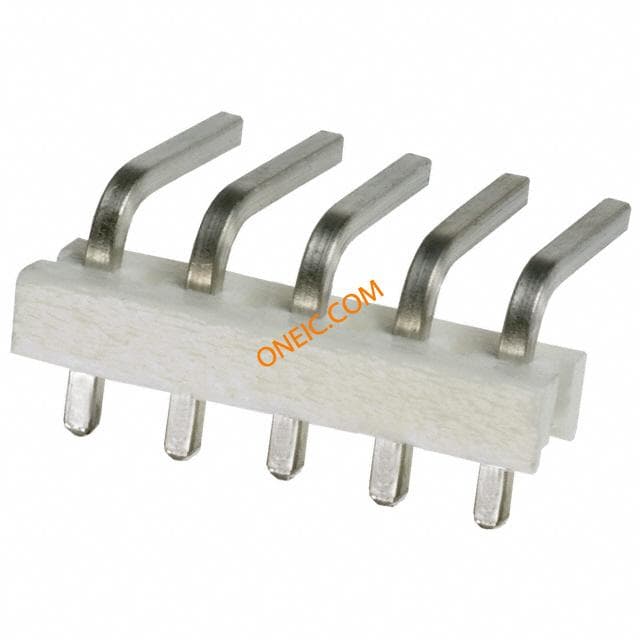

640385-5
