GLC75-24G
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 24V 3.1A 75W 12-Pin PS SWITCHER 75W 24V 3.1A POWERSUPPLY,SWITCHING;75W;90TO264VAC;24V;2.3A(MAX.);3.1A |
| Category |
Business
| Lead Time | 89 Days | Subcategory | AC to DC Power Supply |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | CE, CSA, EN, IEC, UL | ||
Electrical
| Output | 24VDC@3.1A | Frequency | 47 to 63 Hz |
| Operation | Switching | Efficiency | 85 % |
| Power - Max | 75 W | Power (Watts) | 75W |
| Power - Output | 75W | Voltage Rating | 90 to 264 V |
| Line Regulation | 1% | Load Regulation | 1% |
| Current - Output | 3.1 A | Number of Outputs | 1 |
| Power Supply Type | Switching (Open Frame) | Power (Watts) - Max | 75W |
| Current Rating (Max) | 2.3 A | Voltage - Input (Min) | 24V |
Mechanical
| Mounting Type | Chassis Mount | Mounting Style | Panel |
| Primary Material | AC-DC | Size / Dimension | 5.75" L x 3.40" W x 1.56" H (146.0mm x 86.4mm x 39.7mm) |
| Number of Positions | 12 | ||
Product Info
| Type | Switching | Style | Open Frame |
| Features | 2-YearsWarranty | Applications | Commercial |
| Manufacturer | GLC75Series | Configuration | OpenFrame |
| For Use With/Related Products | GLC75-24 | ||
Environmental
| Operating Temperature | 0 to 50 °C | ||
Documents & Media
Similar Parts
640250-9
te connectivity / amp
Conn Housing RCP 9 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 9 POS W/RAMP SL-156 Headers & Wire Housings 09P SL156 HSG W/LCK Conn Housing RCP 9 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 9Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 9POS, 3.96MM Connector;Receptacle;9;Crimp;LockingRamp;180deg;Nylon;SL-156Housings 09P SL156 HSG W/LCK RAMP NATL
08-30466-1075
sl power electronics
CHASSIS, GLx75 SINGLE SERIES
08-30466-2075
sl power electronics
POWER SUPPLY COVER COVER FOR GLC75 SINGLE OUTPUT Cover;1.98in.

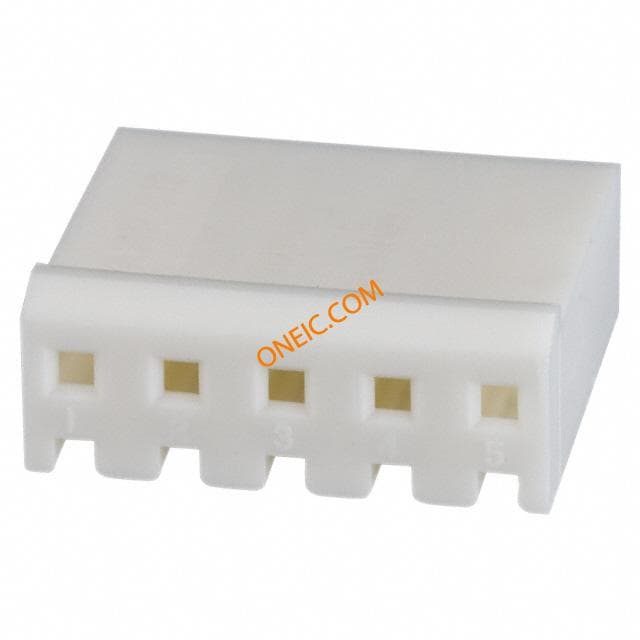

640250-5
te connectivity / amp
Conn Housing RCP 5 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 5 POS W/RAMP SL-156 5w housing without polarising tabs Headers & Wire Housings 5P HSG W/LCK RMP SL156 Conn Housing RCP 5 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 5Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Receptacle;5;Crimp;LockingRamp;180deg;Nylon;SL-156Housings Socket housing, straight 5P, 640250-5, TE Connectivity TE Connectivity SL-156 系列 3.96mm 节距 5 路 直 母 电缆安装 压接连接器外壳 05P SL156 HSG W/LCK RAMP NATL
08-30466-1075G
sl power electronics
CHASSIS, GLx75 SINGLE SERIES

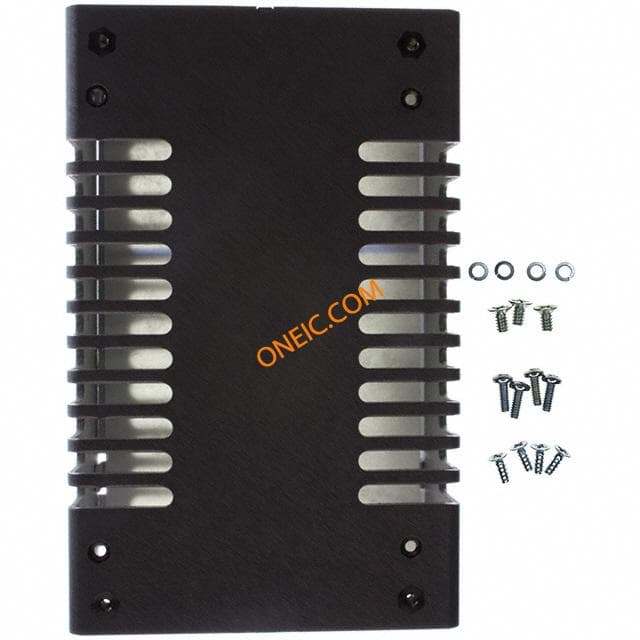

08-30466-2075G
