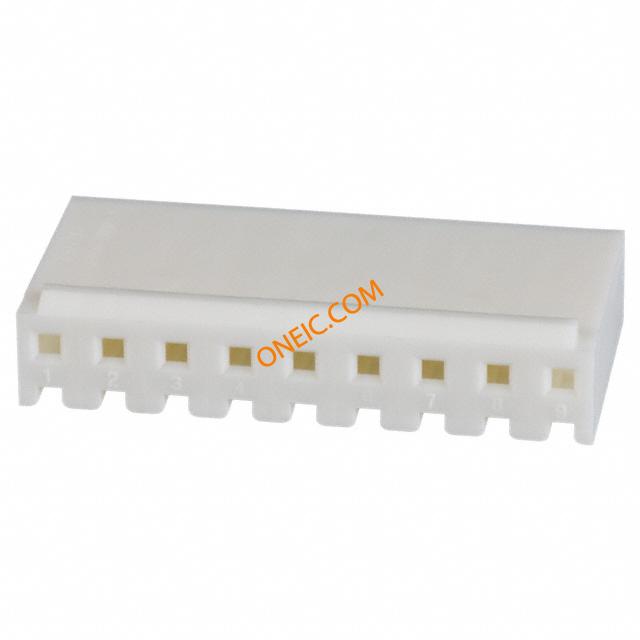

640250-9
| Manufacturer | |
| Description | Conn Housing RCP 9 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 9 POS W/RAMP SL-156 Headers & Wire Housings 09P SL156 HSG W/LCK Conn Housing RCP 9 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 9Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 9POS, 3.96MM Connector;Receptacle;9;Crimp;LockingRamp;180deg;Nylon;SL-156Housings 09P SL156 HSG W/LCK RAMP NATL |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | UL94V-0FlammabilityRating,RoHSCompliant,ELVCompliant |
| Tariff No | 85369010 | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | CSA,UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 V | Switch Function | Locking Ramp |
| Current Rating (Max) | 5 A | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Natural | Depth | 16.76 mm |
| Pitch | 3.96 mm | Height | 7.27 mm |
| Weight | 0.002 | Packaging | Bulk |
| Shrouding | No | Cable Exit | 180° |
| Wire Gauge | 16-24 AWG | Row Spacing | 0.156in. |
| Termination | Crimp | Contact Type | Female Socket |
| 2nd Connector | With | Housing Color | White |
| Mounting Type | Straight | Angle of Throw | Straight |
| Connector Type | Crimp | Contact Finish | :- |
| Fastening Type | Locking Ramp | Mounting Style | Free Hanging |
| Number of Rows | 1 | Connector Usage | Receptacle |
| Locking Feature | Locking Ramp | Contact Material | :- |
| Cord Termination | :Crimp | Housing Material | Nylon |
| Length - Overall | 35.61 mm | Mounting Feature | Without |
| Panel Mount Type | Without | Primary Material | WiretoBoard |
| Wire Termination | Crimp | Pin Hole Diameter | 0.156" |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Without | Number of Contacts | 9 |
| Contact Termination | Crimp | Insulation Diameter | Standard |
| Number of Positions | 9 | Contact Layout, Typical | 3.96 [0.156] |
Product Info
| Note | Recommended contact: Part No. 640252-1,-2 and Part No. 770476-1,-2. | Type | Housing |
| Gender | RCP | Series | SL-156 |
| Manufacturer | AMP | Product Type | SL-156 Housings |
| Application Specifics | Wire-to-Board | ||
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
644760-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 9POS VERT .156 GOLD

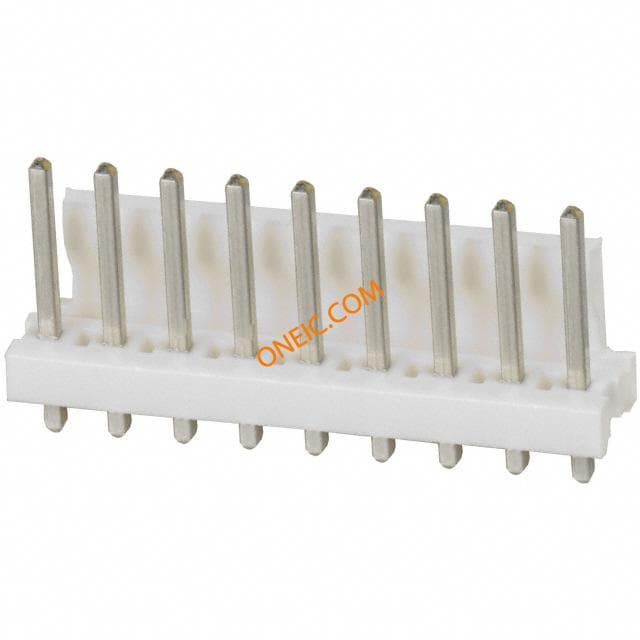

644752-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .156 TIN Headers & Wire Housings 09P MTA156 HDR ASSY Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole Product Highlights:9 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 HDR ASSY SQ STR F/L
3-770476-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Contact 18-24awg phosphor D/W Strip Headers & Wire Housings SKT 24-18 PHBR/SN Reel of 5500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpBright Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, MTA, 24-18AWG CONTACT,RECEPTACLE,SL-156,18-24AWG,CRIMP Contact; female; 0.2÷0.9mm2; SL-156; tinned; crimped; tape; 3.96mm TE Connectivity SL-156 系列 母 压接接线端子, 压接, 镀锡镀镍触点 SL156 RECPT, SNNI/PHBZ
641120-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 9POS STR .156 15GOLD Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
770476-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 GOLD Contact female 0.2-0.9mm² SL-156 Headers & Wire Housings SOCKET 24-18 AWG Reel of 5500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpGold (30) over Nickel Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, RECEPTACLE, 24-18AWG, CRIMP CONTACT,RECEPTACLE,SL-156,18-24AWG,CRIMP TE Connectivity SL-156 系列 母 压接接线端子, 压接, 镀金镀镍触点 SL156 RECPT, AUNI/PHBZ

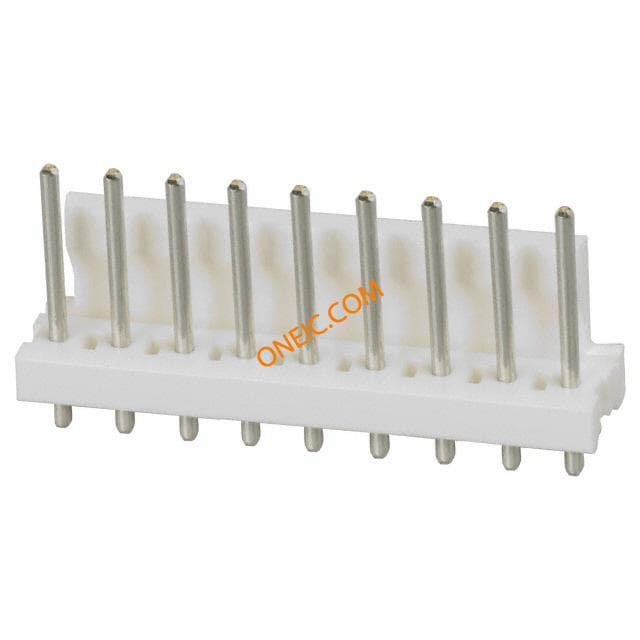

640388-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .156 TIN TE Connectivity 3.96mm Pitch 9 Way 1 Row Straight PCB Header, Solder Termination, 7A Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 9Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Receptacle,2.54mmIDT,straight,9w TE Connectivity MTA-156 系列 3.96mm节距 9路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 09P MTA156 HDR ASSY RN STR F/L

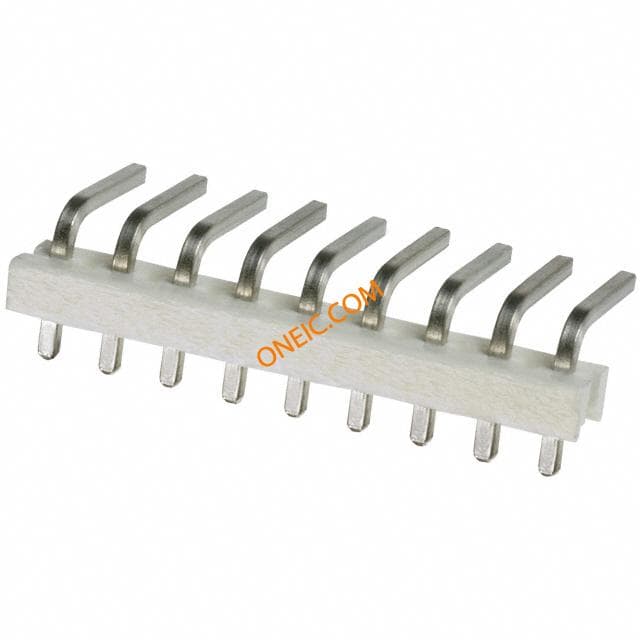

640385-9
te connectivity / amp
Conn Unshrouded Header HDR 9 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 9POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 9P Square post tin Conn Unshrouded Header HDR 9 POS 3.96mm Solder RA Thru-Hole Product Highlights:Header9 PositionsPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 HDR ASSY SQ R/A

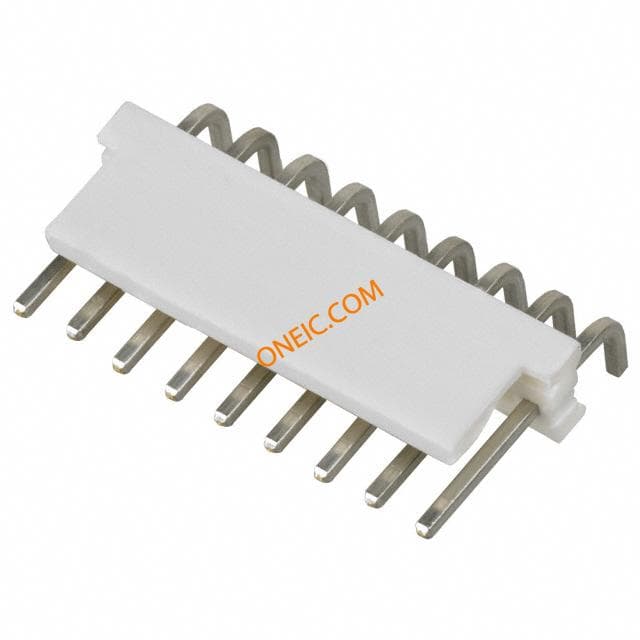

640389-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 9POS .156 TIN Headers & Wire Housings FRCTN LK HDR RA 9P Square post tin Conn Wire to Board HDR 9 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 9Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 HDR ASSY SQ R/A F/L

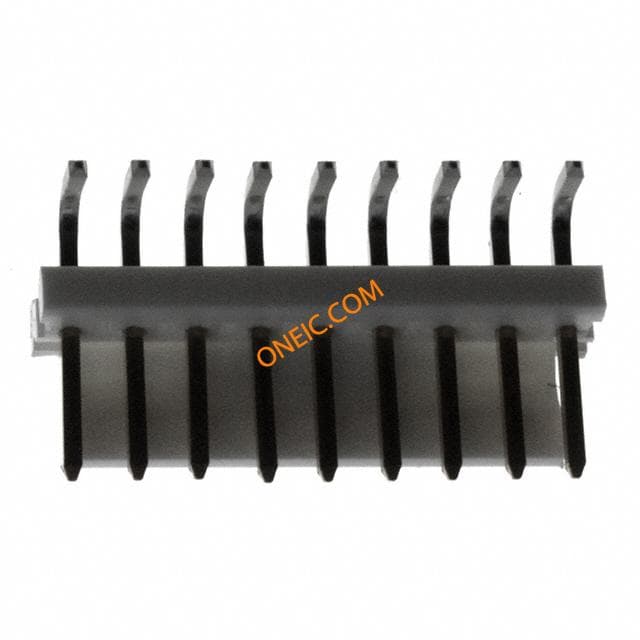

3-641208-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 9POS .156 30 GOLD Headers & Wire Housings FRCTN LK HDR STR 9P Square post gold Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 HDR ASSY FL ST LF
644753-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 9POS VERT .156 TIN Headers & Wire Housings 09P MTA156 HDR ASSY RN STR F/L 09P MTA156 HDR ASSY RN STR F/L 09P MTA156 HDR ASSY RN STR F/L Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
641210-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 9POS 30AU Headers & Wire Housings FRCTN LK HDR RA 9P Square post gold Conn Wire to Board HDR 9 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 HRD FL RA FB 30AU

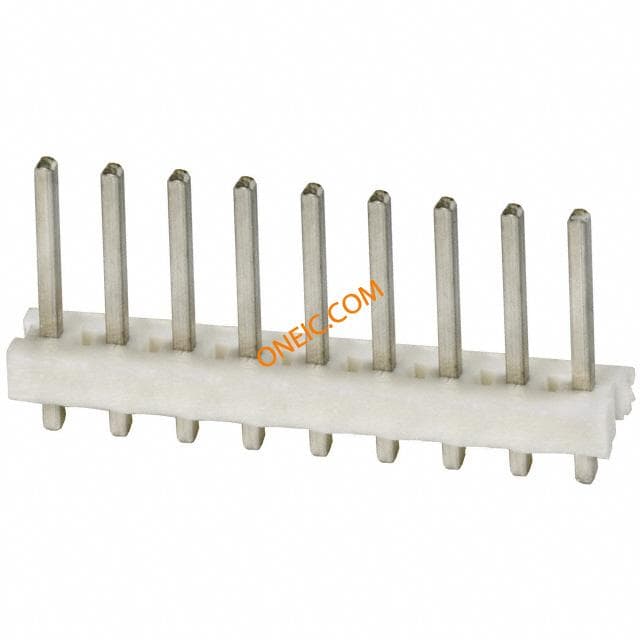

640383-9
