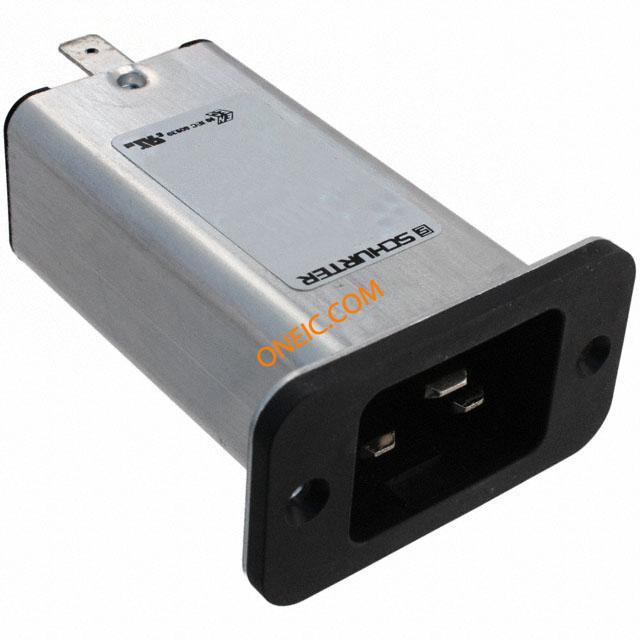

C20F.0001
| Manufacturer | |
| Description | Power Entry Module Filtered M 3 POS 250VAC 20A ST 1 Port C20F G-STECKER FILTER 20A MODULE PWR ENTRY SCREW-ON Filter Inlet; 20 A; 250 VAC; 50 to 60 Hz; lt 0.5 mA; Panel Mount; AC Power Entry Modules Screw-on X2 cap 20A Standard FILTER, INLET, IEC, 20A FilterInlet;20A;250VAC;50to60Hz;lt0.5mA;PanelMount; Connector: IEC 60320,AC mains; C20 (I), with filter; socket; male Power inlet with filter 16 A 250 VAC, C20F.0001, Schurter Schurter C20 螺钉 插头 IEC 滤波器, 焊接端接, 额定16 (IEC) A, 20 (UL / CSA) A, 250 V 交流 |
| Category |
Business
| MOQ | 20 | Product | Inlets |
| Lead Time | 20 Days | Unit Pack | 20 |
| Subcategory | Power Entry Module | Product Category | AC Power Entry Modules |
| Standard Package | Bulk | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Standards | URRecognized,ENECApproved | Tariff No | 85366990 |
| Approval Agency | cULus,UL,CSA | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 20A | Voltage | 250VAC |
| Frequency | 50to60Hz | Inductance | 2×0.3mH |
| Resistance | 1Megohms | Capacitance | 100nF |
| Filter Type | General Purpose | Voltage - Test | 1.7kV |
| Voltage Rating | 125 V / 250 V | Number of Poles | 3 |
| Switch Function | Not Switched | Voltage - Supply | 50/60Hz |
| Current - Leakage | :500µA | Dielectric Strength | >1.7kVDC(L-N),>2.7kVDC(L/N-PE) |
| Current Rating (Max) | 16 A | Power Line Protection | :Class X2 |
| Voltage - Input (Min) | 250 Vac | Current - Leakage (IS(off)) (Max) | :500µA |
Mechanical
| Color | Black | Depth | :68.5mm |
| Width | :53mm | Length | :30mm |
| Weight | 3.703766 oz | Lead Style | for soldering |
| Termination | Solder Lug | Contact Type | Pin |
| Mounting Type | Flange Mount | Connector Type | IEC/EN 60320-1/C20|UL 498|CSA C22.2 |
| Mounting Style | Screw | Fuseholder Type | Fuse Not Required |
| Panel Thickness | :8mm | Housing Material | Thermoplastic |
| Package Quantity | 20 | Primary Material | Module |
| Size / Dimension | see | Connector - Cable | socket |
| Termination Style | Quick Connect | Number of Contacts | 3 |
| Panel Cutout Shape | 26.8×42mm | Number of Positions | :Single |
| Mounting Hole Spacing | 42mm | Mounting Hole Diameter | 42 x 34.8mm |
| Thread/Screw/Hole Size | M3 | Material - Housing & Prism | :Thermoplast |
Product Info
| Spg | 20 | Type | Filtered |
| Fused | No | Gender | Male |
| Series | C20F | Features | Shielded |
| Schematic | see | Number of Units | 1 |
| Firmware Version | Standard | Application Specifics | Universallinefilter |
Environmental
| Ingress Protection | IP40 | Operating Temperature | - 25 C to + 85 C |
Documents & Media
Similar Parts

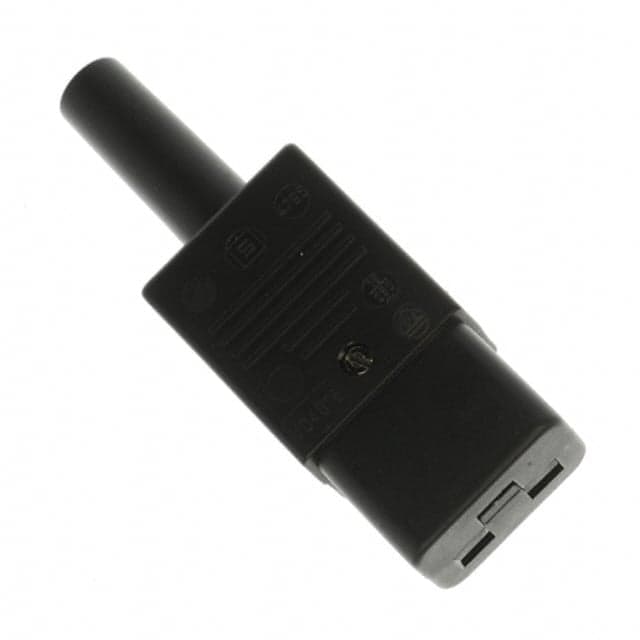

4795.0000
