4789.1200
| Manufacturer | |

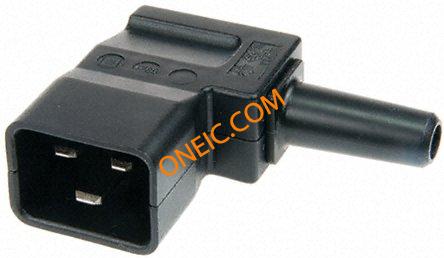

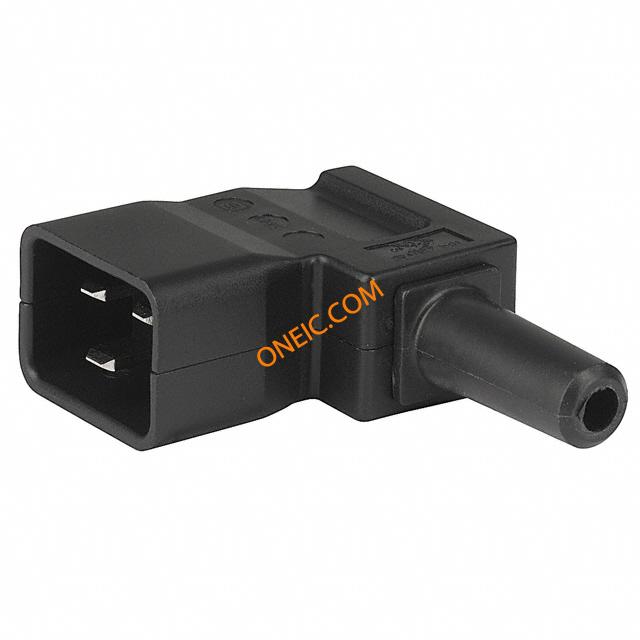

| Description | Conn Power PL 3 POS RA Cable Mount 3 Terminal 1 Port MOD PLUG REWIRE CABLE 10MM INLET C20 Male Right Angle Cable Mount IEC Connector, Screw Down Termination, Rated At 16A, 250V ac AC Power Entry Modules 10mm PLUG 14AWG PLUG, REWIREABLE, 16A, ANGLED Inlet;250VAC;16A;gt2kVAC;Thermoplastic;Black;UL94V-0 Connector: IEC 60320,AC mains; C20 (I); plug; male; for cable; 16A Plug black, 4789.1200, Schurter Schurter C20 电缆安装 直角 插头 IEC 插头, 螺钉拧紧端接, 额定16A, 250 V 交流 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 100 | Product | Inlets |
| Unit Pack | 100 | Product Category | AC Power Entry Modules |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | Approval Agency | :CCC |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 20A | Voltage | 250V |
| Filter Type | No | Voltage Rating | 250 V ac |
| Number of Poles | 3 | Switch Function | Not Switched |
| Dielectric Strength | >2kVAC | Current Rating (Max) | 16A |
| Connector - Voltage Input | C20 (I) | ||
Mechanical
| Color | Black | Weight | 1.375685 oz |
| AC Outlets | :1 | Wire Gauge | #14 |
| Orientation | right | Termination | Screw Down |
| Contact Type | Pin | Core Diameter | 10 |
| Mounting Type | Cable Mount | Wire Diameter | 14AWG |
| Connector Type | Plug, Male Pins | Mounting Style | Cable |
| Connector Style | IEC 320-C20 | Fuseholder Type | Drawer Not Required |
| Housing Material | Thermoplastic | Package Quantity | 50 |
| Primary Material | StraightBlade | Connector - Cable | C20 |
| Termination Style | IDC | Color - Connectors | :Black |
| Number of Contacts | :3 | Contact Termination | :Screw |
| Number of Positions | 3 | Wire/Cable Tie Type | Yes |
| Maximum Cable Length | 10mm | Wire Gauge or Range - mm2 | 10mm |
| Material - Housing & Prism | :Thermoplastic | 1st Connector Mounting Type | :Cable |
Product Info
| Spg | 50 | Type | Power |
| Fused | No | Gender | PL |
| Series | 4789 | Features | Rewireable |
| Switch Type | None | Number of Units | 1 |
Environmental
| Operating Temperature | - 25 C to + 70 C | ||
