FFSD-10-01-N
| Manufacturer | |
| Description | Conn IDC Connector SKT 20 POS 1.27mm IDT RA Cable Mount Tube CONN IDC SOCKET .05" 20POS CONNECTOR, RECEPTACLE, IDC, 1.27MM, 20P |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :SAMTEC - FFSD Series | Contact Resistance | :10mohm |
| Current Rating (Max) | :0.5A | ||
Mechanical
| Color | Black | Depth | 3.05 |
| Pitch | 1.27 mm | Height | 5.08 |
| Weight | 0.002 | Packaging | Tube |
| Wire Type | Ribbon Cable | Wire Gauge | :30AWG |
| Row Spacing | 0.050" (1.27mm) | Termination | IDT |
| Contact Type | Female Socket | Lead Spacing | :1.27mm |
| Mounting Type | Cable Mount | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Material Finish | :- | Contact Material | Beryllium Copper |
| Housing Material | Polybutylene Terephthalate | Length - Overall | 16.89 |
| Cable Termination | IDC | Number of Contacts | 20 |
| Contact Termination | :IDC / IDT | Number of Positions | 20 |
| Contact Finish Thickness | 10µin (0.25µm) | ||
Product Info
| Type | IDC Connector | Gender | SKT |
| Features | Feed Through, Polarizing Key | ||
Environmental
| Operating Temperature | :105°C | ||
Documents & Media
Similar Parts
FTS-110-01-F-DV-P-TR
samtec inc.
Conn Unshrouded Header HDR 20 POS 1.27mm Solder ST SMD T/R CONN HEADER 20POS DUAL .05" SMD
FTS-110-01-L-DV
samtec inc.
Conn Unshrouded Header HDR 20 POS 1.27mm Solder ST SMD Tube CONN HEADER 20POS DUAL .05" SMD Header 1.27mm low profile SMT 20way HEADER, 1.27MM, SMD, 20WAY Samtec FTS 系列 1.27mm节距 20路 (2排) 直 引脚管座, 焊接端接, 1.75A , 表面安装
FTS-110-01-F-DV
samtec inc.
Conn Unshrouded Header HDR 20 POS 1.27mm Solder ST SMD Tube CONN HEADER 20POS DUAL .05" SMD CONNECTOR, HEADER, 1.27MM, SMT, 20WAY
EHF-110-01-L-D-RA
samtec inc.
Conn Ejector Header HDR 20 POS 1.27mm Solder RA Thru-Hole Tube CONN HEADER .05" 20POS DUAL R/A Samtec EHF Series 1.27mm Pitch 20 Way 2 Row Right Angle PCB Header, Solder Termination, 1.75A HEADER, 1.27MM, R/A, 20WAY Samtec EHF 系列 1.27mm节距 20路 (2排) 直角 PCB 针座, 焊接端接, 1.75A , 通孔
FTS-110-03-L-DV
samtec inc.
Conn Unshrouded Header HDR 20 POS 1.27mm Solder ST SMD Tube CONN HEADER 20POS DUAL .05" SMD Header 1.27mm low profile SMT 20way HEADER, 1.27MM, SMD, 20WAY Samtec FTS 系列 1.27mm节距 20路 (2排) 直 引脚管座, 焊接端接, 1.75A , 表面安装
FTS-110-01-L-D
samtec inc.
Conn Unshrouded Header HDR 20 POS 1.27mm Solder ST Thru-Hole Tube CONN HEADER 20POS DUAL .05" T/H Header 1.27mm through hole 20way HEADER, 1.27MM, THRU HOLE, 20WAY Samtec FTS 系列 1.27mm节距 20路 (2排) 直 引脚管座, 焊接端接, 1.75A , 表面安装
FTS-110-01-L-DV-P-TR
samtec inc.
Conn Unshrouded Header HDR 20 POS 1.27mm Solder ST SMD T/R CONN HEADER 20POS DUAL .05" SMD
EHF-110-01-L-D-SM
samtec inc.
Conn Ejector Header HDR 20 POS 1.27mm Solder ST SMD Tube CONN HEADER .05" 20POS DUAL SMD Samtec EHF Series 1.27mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination, 1.75A HEADER, 1.27MM, SMD, 20WAY Samtec EHF 系列 1.27mm节距 20路 (2排) 直 PCB 针座, 焊接端接, 1.75A , 表面安装
EHF-110-01-L-D-SM-LC
samtec inc.
Conn Ejector Header HDR 20 POS 1.27mm Solder ST SMD Tube CONN HEADER .050" 20POS DUAL SMD HEADER, 1.27MM, SMT, 2X10WAY

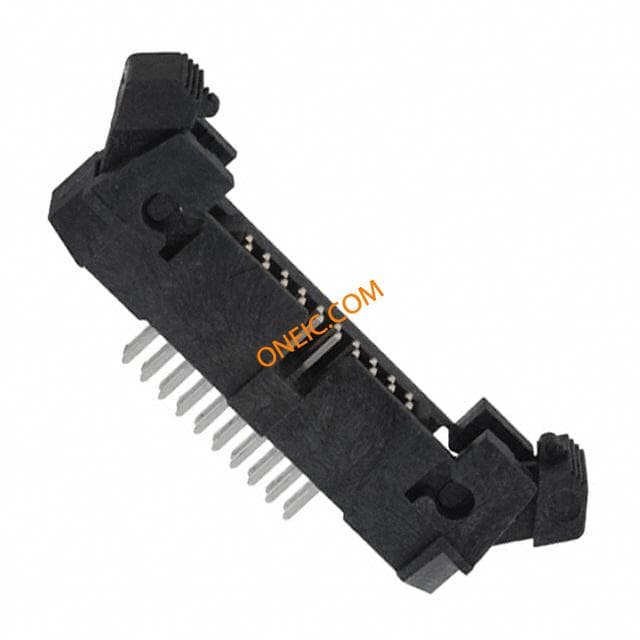

EHF-110-01-L-D
