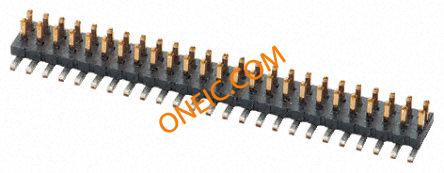

FTS-110-03-L-DV
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 20 POS 1.27mm Solder ST SMD Tube CONN HEADER 20POS DUAL .05" SMD Header 1.27mm low profile SMT 20way HEADER, 1.27MM, SMD, 20WAY Samtec FTS 系列 1.27mm节距 20路 (2排) 直 引脚管座, 焊接端接, 1.75A , 表面安装 |
| Category |
Business
| Other Names | SAM1159-10 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Current Rating (Max) | 1.75A | ||
Mechanical
| Color | Black | Depth | 3.42 mm |
| Pitch | 1.27 mm | Height | 2.92 mm |
| Weight | 0.001 | Packaging | Bulk |
| Row Spacing | 0.050" (1.27mm) | Termination | Solder |
| Contact Type | Male Pin | Lead Spacing | :1.27mm |
| Pitch - Post | :1.27mm | Housing Color | Black |
| Mounting Type | Surface Mount | Connector Type | Header, Unshrouded |
| Contact Finish | Gold Over Nickel | Mounting Style | Surface Mount |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Length - Overall | 12.7 mm | Color - Connectors | :Black |
| Number of Contacts | 20 | Contact Termination | :Solder |
| Number of Positions | 20 | Contact Length - Mating | 0.065" (1.65mm) |
| Contact Finish Thickness | 10µin (0.25µm) | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | FTS | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55C to 125C | ||
