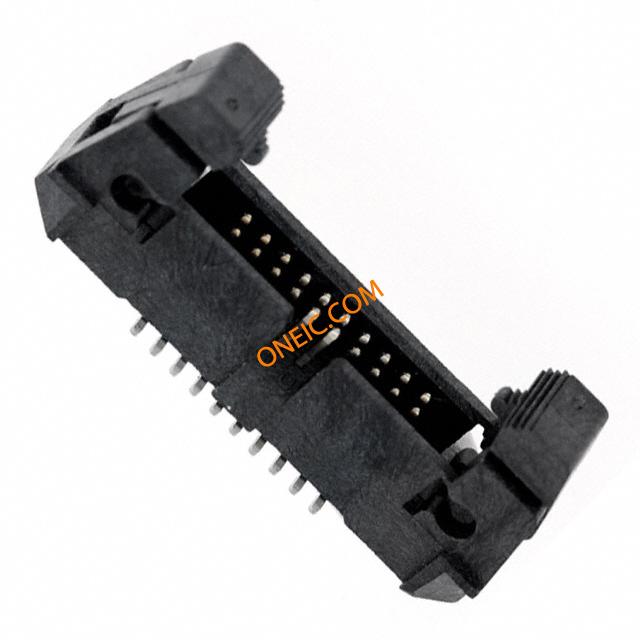

EHF-110-01-L-D-SM
| Manufacturer | |
| Description | Conn Ejector Header HDR 20 POS 1.27mm Solder ST SMD Tube CONN HEADER .05" 20POS DUAL SMD Samtec EHF Series 1.27mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination, 1.75A HEADER, 1.27MM, SMD, 20WAY Samtec EHF 系列 1.27mm节距 20路 (2排) 直 PCB 针座, 焊接端接, 1.75A , 表面安装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :SAMTEC - EHF Series | Current Rating (Max) | 1.75A |
Mechanical
| Color | Black | Depth | 6.67 |
| Pitch | 1.27 mm | Height | 11.55 |
| Weight | 0.001 | Material | :LCP |
| Packaging | Tube | Row Spacing | 0.050" (1.27mm) |
| Termination | Solder | Contact Type | Male Pin |
| Lead Spacing | :1.27mm | Housing Color | Black |
| Mounting Type | Surface Mount | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Fastening Type | Latch Lock/Eject Hooks |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer | Length - Overall | 27.18 |
| Color - Connectors | :Black | Number of Contacts | 20 |
| Contact Termination | :Solder | Number of Positions | 20 |
| Contact Length - Mating | 0.120" (3.05mm) | Contact Finish Thickness | 10µin (0.25µm) |
Product Info
| Type | Ejector Header | Gender | HDR |
| Series | EHF | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :+125°C | ||
