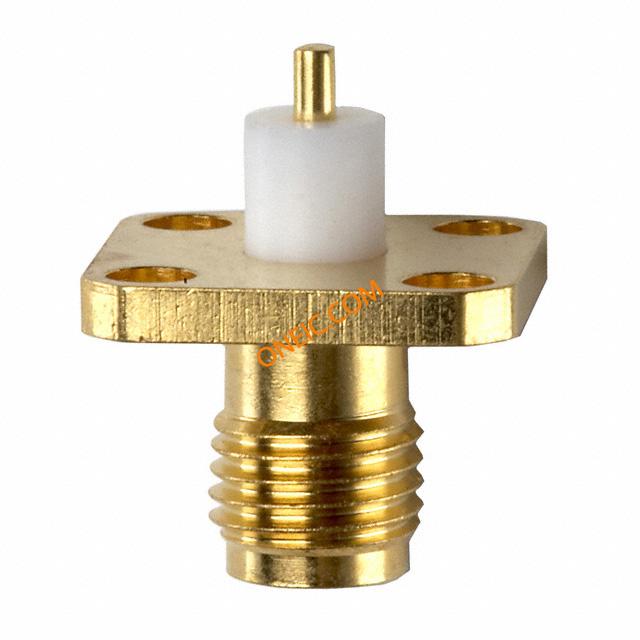

72962
| Manufacturer | |
| Description | RF Connectors SMA JACK PANEL RECEP (4 HOLE) CONN SMA JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors SMA JACK PANEL RECEP (4 HOLE) SMA JACK, STR, 50OHM, CRIMP SMAJACKPANELRECEPTACLE(4HOLE) |
| Category |
Business
| Product | Connectors | Part # Aliases | 3094273 |
| Product Category | RF Connectors | Standard Package | 5 |
| Factory Pack Quantity | 5 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366910 | ||
Electrical
| Impedance | 50 Ohms | Voltage Rating | 500V |
| Frequency - Max | 6 GHz | ||
Mechanical
| Weight | 0.005 | Packaging | Bulk |
| Cable Type | :- | Body Finish | Gold |
| Orientation | Straight | Body Material | Brass |
| Housing Color | Gold | Mounting Type | Panel Mount, Square Flange |
| Shell Plating | Gold | Connector Type | SMA Jack |
| Contact Finish | Gold | Fastening Type | Threaded |
| Connector Style | SMA | Contact Material | Brass, Beryllium Copper |
| Housing Material | Brass | Termination Style | Crimp |
| Shield Termination | Solder | Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Supplier Device Package | Receptacle |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | PanelJack | Gender | Receptacle (Female) |
| Series | :- | Features | Extended Insulation |
| Polarity | Normal | RF Family/Standard | SMA |
Environmental
| Operating Temperature | - 65 C to + 165 C | ||
Documents & Media
Similar Parts
72962
Pomona Electronics
RF Connectors SMA JACK PANEL RECEP (4 HOLE) CONN SMA JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors SMA JACK PANEL RECEP (4 HOLE) SMA JACK, STR, 50OHM, CRIMP SMAJACKPANELRECEPTACLE(4HOLE)

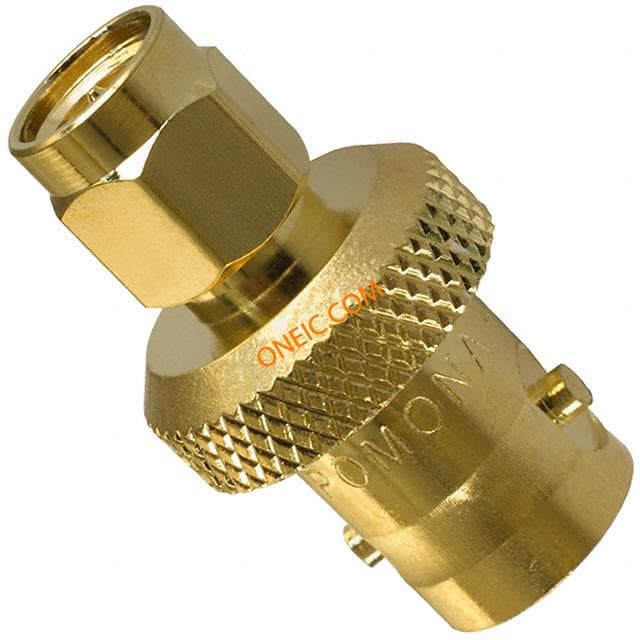

4290
Pomona Electronics
RF Adapters - Between Series SMA M/BNC F Conn SMA-BNC Adapter PL/RCP 0Hz to 12.4GHz 50Ohm ST Gold ADAPTER SMA MALE-BNC FEMALE Adapter;SMAMaleToBNCFemale;TeflonPerL-P-403;0.59in.;Gold-Plated SMA (Male) to BNC (Female) Between Series Adapter

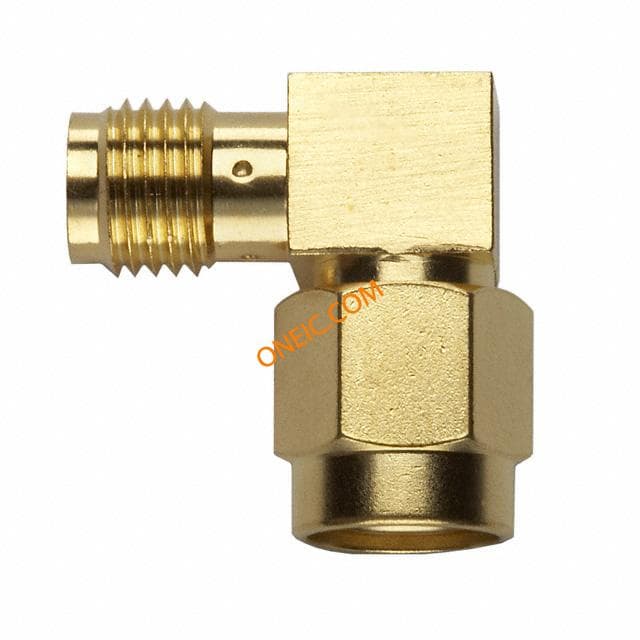

72965
Pomona Electronics
RF Adapters - In Series SMA R/A PLUG TO JACK ADAPTER SMA R/A PLUG TO JACK SMAR/APLUGTOJACK

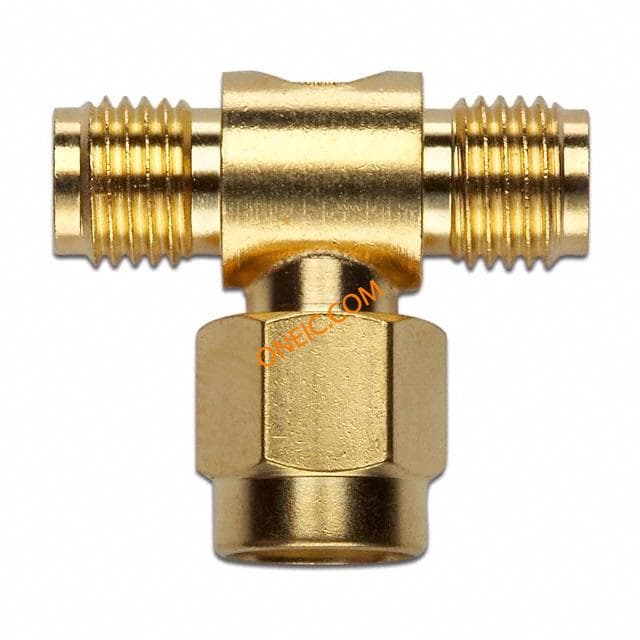

72969
Pomona Electronics
RF Adapters - Tee SMA T TYPE JACK(F)/ PLUG(M)/ JACK(F) ADAPTER SMA TEE F-M-F RF/COAXIAL ADAPTER SMATTYPE,JACK(F)/PLUG(M)/JACK(F)

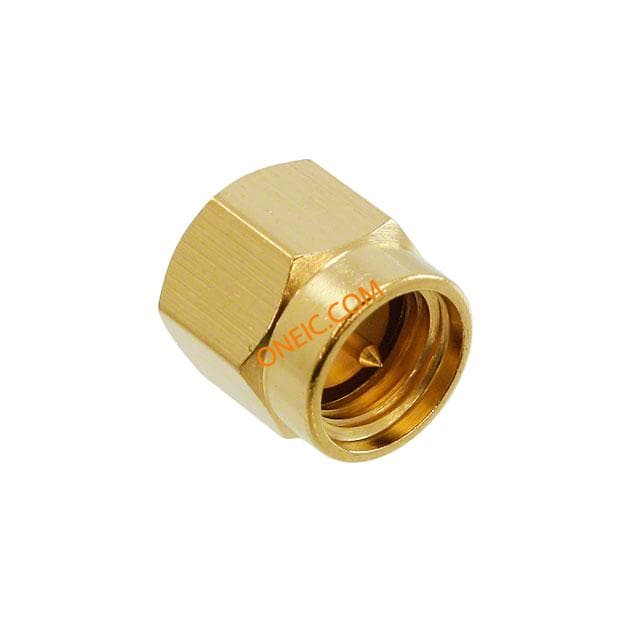

5088
