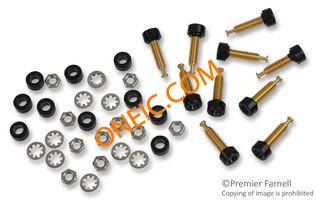

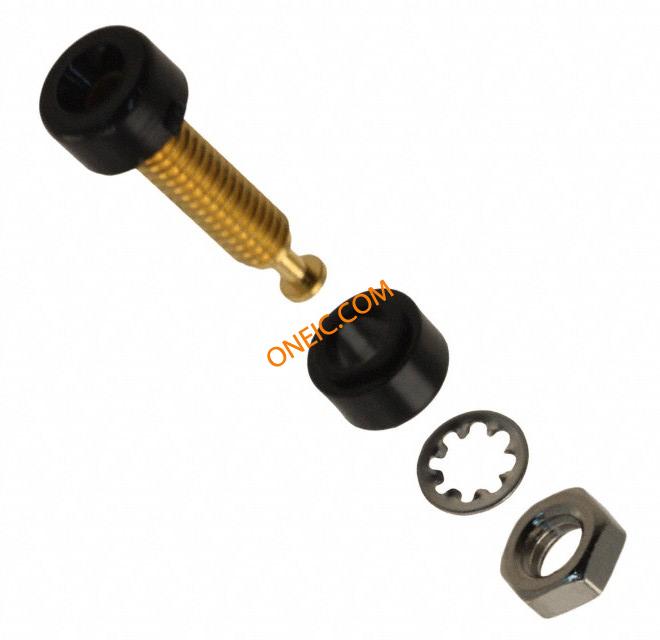

3542-0
| Manufacturer | |
| Description | Test Plugs & Test Jacks PIN TIP JACK GOLD PL BU-00234-0 Conn Tip Jack F 1 POS ST Panel Mount 1 Port Test Plugs & Test Jacks PIN TIP JACK GOLD PL (BLACK) JACK PIN TIP GOLD BLACK 10PC INSULATED PIN TIP JACK, 1500V, 5A, BLACK PinJack;Black;5A;1500V(RMS);Polycarbonate;GoldplatedBrass;115degC Laboratory socket ø 2 mm black 10 ST, 3542-0, Pomona |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1929327 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Voltage - Breakdown | :1.5kV | Current Rating (Max) | 5 A |
| Voltage - Continuous Operating (Max) (MCOV) | 1500V(RMS) | ||
Mechanical
| Color | Black | Height | 0.88in.(PinJack) |
| Weight | 0.023 | Diameter | 7.87 |
| Packaging | 10 per Bag | Insulation | Insulated |
| Termination | Threaded and Turret | Body Material | Polycarbonate (PC) |
| Hole Diameter | 0.080in. | Housing Color | Black |
| Mounting Type | Panel Mount | Connector Type | Jack |
| Contact Finish | Nickel Plated | Material - Body | Polycarbonate |
| Contact Material | Brass | Insulation Color | :Black |
| Length - Overall | 22.35 | Number of Contacts | 1 |
| Insulation Material | Polycarbonate | Plug/Mating Plug Diameter | Standard Tip |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | Tip Jack | Gender | F |
| Series | :3542 | Equipment Type | Pin Tip Jacks |
| Number of Ports | 1 | For Use With/Related Products | :2mm Standard Tip Plug |
Environmental
| Operating Temperature | + 115 C | ||
Documents & Media
Similar Parts
1809-0
Pomona Electronics
Test Plugs & Test Jacks PINJACK TO BAN PLUG PIN TIP JACK/BANA PLUG 10PC BLK Conn Banana Adapter F/PL 1/1 POS ST 1 Port CONNECTORS Connector;PinJacktoBananaPlug;Brass(Plug);BerylliumCopper;2500WVDC
$26.9280
Details

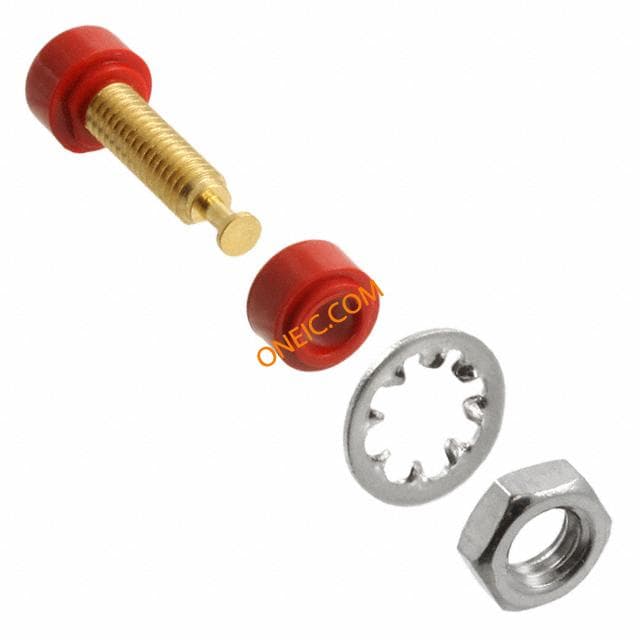

3542-2
