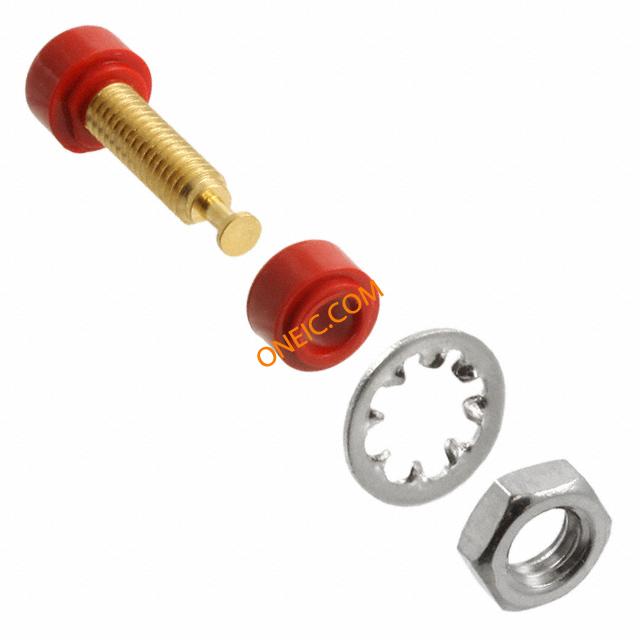

3542-2
| Manufacturer | |
| Description | Test Plugs & Test Jacks PIN TIP JACK GOLD PL BU-00234-2 Conn Tip Jack F 1 POS ST Panel Mount 1 Port Test Plugs & Test Jacks PIN TIP JACK GOLD PL (RED) JACK PIN TIP GOLD RED 10PC PIN TIP JACK, 1500V, 5A, RED PinJack;Red;5A;1500V(RMS);Polycarbonate;GoldplatedBrass;115degC Laboratory socket ø 2 mm red 10 ST, 3542-2, Pomona |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1929353 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Voltage - Breakdown | :1.5kV | Current Rating (Max) | 5 A |
| Voltage - Continuous Operating (Max) (MCOV) | 1500V(RMS) | ||
Mechanical
| Color | Red | Depth | Not Required mm |
| Height | Not Required mm | Weight | 0.023 |
| Diameter | 7.87 | Packaging | 10 per Bag |
| Insulation | Mating End Insulated | Termination | Threaded and Turret |
| Body Material | Polycarbonate (PC) | Hole Diameter | 0.080in. |
| Housing Color | Red | Mounting Type | Panel Mount |
| Connector Type | Jack | Contact Finish | Gold |
| Mounting Style | Panel | Material - Body | Polycarbonate |
| Contact Material | Brass | Insulation Color | :Red |
| Length - Overall | 22.35 mm | Color - Connectors | :Red |
| Number of Contacts | 1 | Insulation Material | Polycarbonate |
| Plug/Mating Plug Diameter | Standard Tip | 1st Connector Mounting Type | :Panel |
Product Info
| Type | Tip Jack | Gender | F |
| Equipment Type | Pin Tip Jacks | Number of Ports | 1 |
| For Use With/Related Products | :2mm Standard Tip Plug | ||
Environmental
| Operating Temperature | 115°C | Operating Temperature - Junction | 115C |
