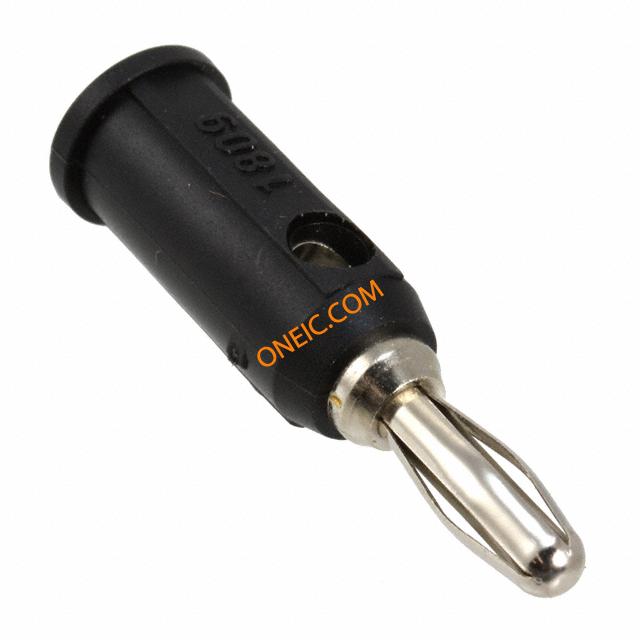

1809-0
| Manufacturer | |
| Description | Test Plugs & Test Jacks PINJACK TO BAN PLUG PIN TIP JACK/BANA PLUG 10PC BLK Conn Banana Adapter F/PL 1/1 POS ST 1 Port CONNECTORS Connector;PinJacktoBananaPlug;Brass(Plug);BerylliumCopper;2500WVDC |
| Category |
Business
| Part # Aliases | 1937215 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Current Rating (Max) | 5A | Voltage - Continuous Operating (Max) (MCOV) | 2500WVDC |
Mechanical
| Color | Black | Weight | 0.1 |
| Insulation | Insulated | Connector Type | :Jack |
| Material - Body | Brass(Plug) | Length - Overall | 1.550" (39.37mm) |
| Material - Frame | BerylliumCopper | Insulation Material | Acrylonitrile Butadiene Styrene (ABS) |
Product Info
| Type | Pin jack to banana plug | Accessory Type | :Banana Plug Adapter |
| Equipment Type | Adapters | Convert To (Adapter End) | Banana Plug |
| Convert From (Adapter End) | Tip Jack | For Use With/Related Products | :Pomona Probes & Test Leads |
Environmental
| Operating Temperature | 50°C | ||
Documents & Media
Similar Parts

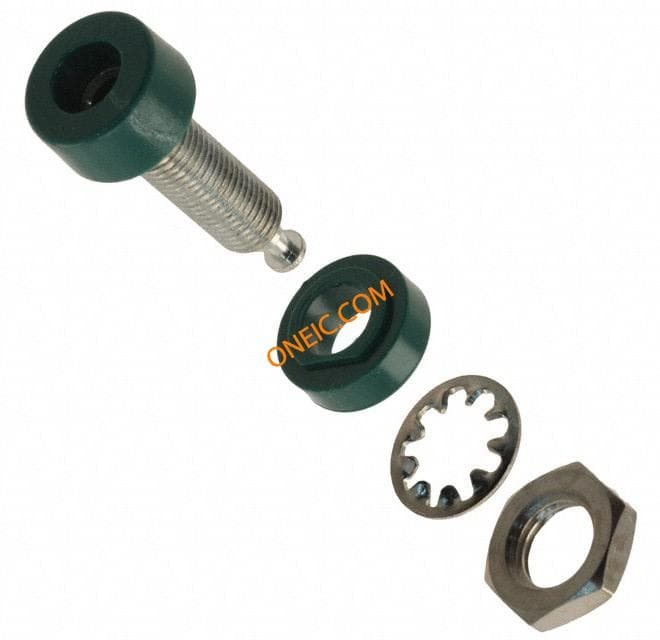

1581-5
Pomona Electronics
Test Plugs & Test Jacks PANEL MOUNT BANANA JACK GREEN Conn Banana Jack F 1 POS ST Panel Mount 1 Port JACK BANA PANEL MT TIN GRN 10PC PANEL MOUNT BANANA JACK, 15A, TURRET, GREEN Jack,Banana;BananaJack;30VAC/60VDC(Max.);15A;Brass;Polycarbonate Tin Plated Panel Mount Banana Jack, Green, 10 per Pack
1581-4
Pomona Electronics
Test Plugs & Test Jacks PANEL MOUNT BANANA JACK YELLOW Conn Banana Jack F 1 POS ST Panel Mount 1 Port JACK BANA PANEL MT TIN YLW 10PC BANANA JACK, 15A, TURRET, YELLOW Jack,Banana;BananaJack;30VAC/60VDC(Max.);15A;Brass;Polycarbonate
1581-6
Pomona Electronics
Test Plugs & Test Jacks PANEL MOUNT BANANA JACK BLUE Conn Banana Jack F 1 POS ST Panel Mount 1 Port JACK BANA PANEL MT TIN BLU 10PC Jack,Banana;BananaJack;30VAC/60VDC(Max.);15A;Brass;Polycarbonate Tin Plated Panel Mount Banana Jack, Blue, 10 per Pack

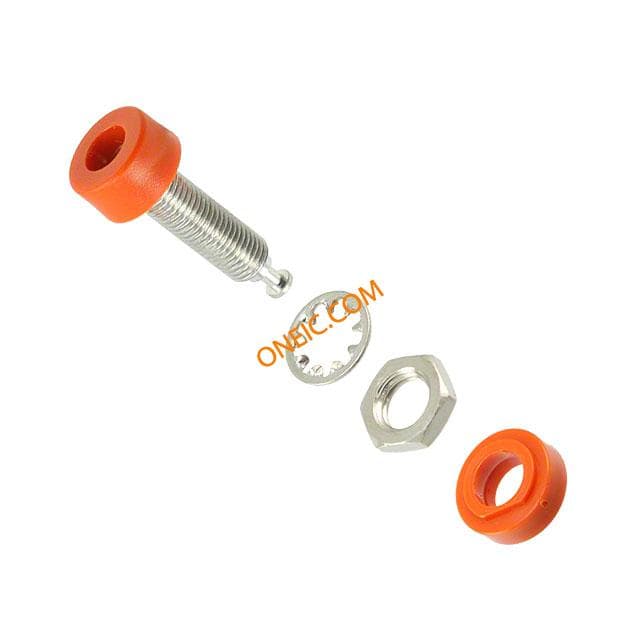

1581-3
