2142-2
| Manufacturer | |

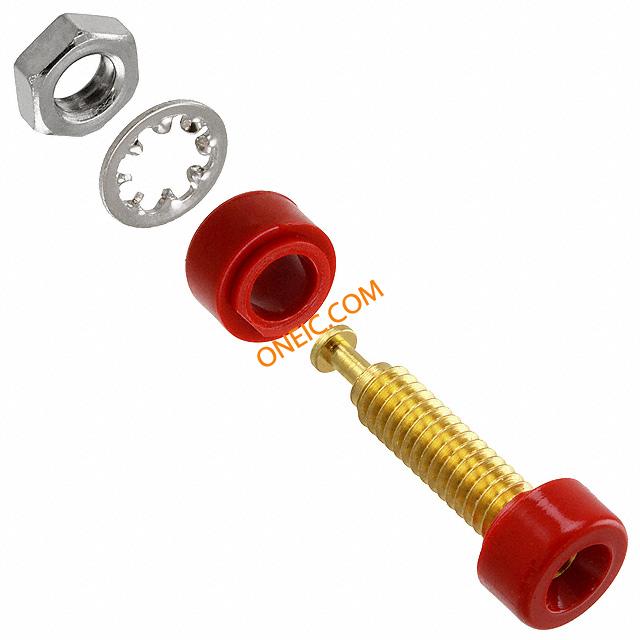

| Description | Test Plugs & Test Jacks MINI BAN JACK RED Conn Banana F 1 POS ST Cable Mount 1 Port Test Plugs & Test Jacks MINI B-JACK (RED) JACK BANANA MINI PNL MT 10PC RED BANANA JACK, 5A, TURRET, RED Jack,Banana;BananaJack;30VAC/60VDC(Max.);5A;Brass;Polycarbonate;Red BANANAJACKREDMINI,10/PKG |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1930703 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Current Rating (Max) | 5 A | ||
Mechanical
| Size | Mini | Color | Red |
| Length | 0.88 in | Weight | 0.023 |
| Diameter | 7.87 | Packaging | 10 per Bag |
| Insulation | Mating End Insulated | Termination | Turret |
| Body Material | Polycarbonate (PC) | Housing Color | Red |
| Mounting Type | Cable Mount | Contact Finish | Gold |
| Mounting Style | Panel | Material - Body | Brass |
| Contact Material | Brass | Housing Material | Polycarbonate |
| Length - Overall | 22.35 | Primary Material | Banana |
| Color - Connectors | :Red | Number of Contacts | 1 |
| Contact Termination | :Stud / Turret | Insulation Material | Polycarbonate |
| Material - Insulation | Polycarbonate | Mounting Hole Diameter | 0.25" |
| Plug/Mating Plug Diameter | Miniature | 1st Connector Mounting Type | :Panel |
Product Info
| Type | Banana | Gender | F |
| Series | :2142 | Manufacturer | 2142Series |
| Equipment Type | Banana Jacks | Number of Ports | 1 |
Environmental
| Operating Temperature | 115°C | Operating Temperature - Junction | 115°C |
