点击放大查看

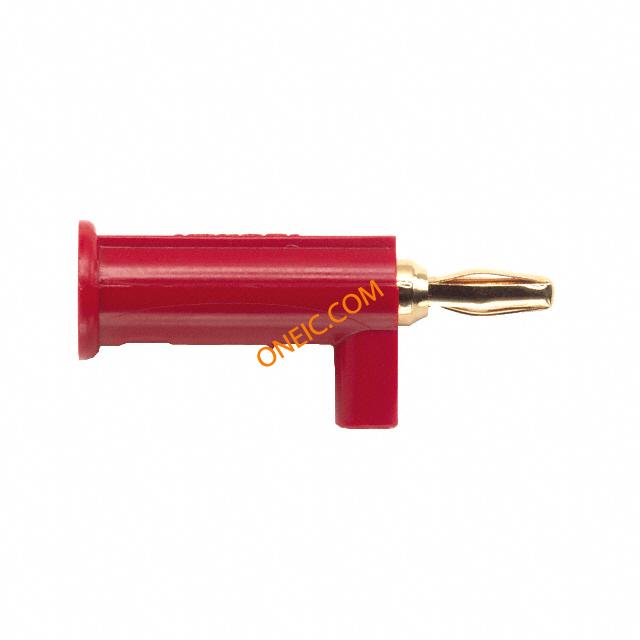

2945-2
| Manufacturer | |
| Description | Test Plugs & Test Jacks RED MINI BANANA PLUG MINI BANA PLUG W/SHIELD DIY RED Plug;BananaPlug;5A;Red;Brass;BerylliumCopper;2500Vrms(Max.);50degC |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1926877 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 5 | Factory Pack Quantity | 5 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 2.5 kV | Current Rating (Max) | 5 A |
Mechanical
| Size | Mini | Color | Red |
| Width | 0.31in. | Height | 1.11in. |
| Length | 1.1 in | Diameter | 0.120in. |
| Packaging | Bulk | Insulation | Non-Mating End Insulated |
| Termination | Solderless | Body Material | Acrylonitrile Butadiene Styrene (ABS) |
| Mounting Type | Free Hanging (In-Line) | Contact Finish | Gold |
| Material - Body | Brass,Alloy360 | Contact Material | Beryllium Copper |
| Material - Frame | BerylliumCopper | Primary Material | Banana |
| Insulation Material | Acrylonitrile Butadiene Styrene (ABS) | Length - Termination | 0.300in. |
| Material - Insulation | ABS | Plug/Mating Plug Diameter | Miniature |
Product Info
| Type | Banana Plug, Stackable | Gender | Male |
| Features | Set Screw, Safety Collar | Manufacturer | 2945Series |
| Equipment Type | Banana Plugs | ||
Environmental
| Operating Temperature | 50°C | Operating Temperature - Junction | 50°C |
Documents & Media
PDF Document
PDF Document
Similar Parts

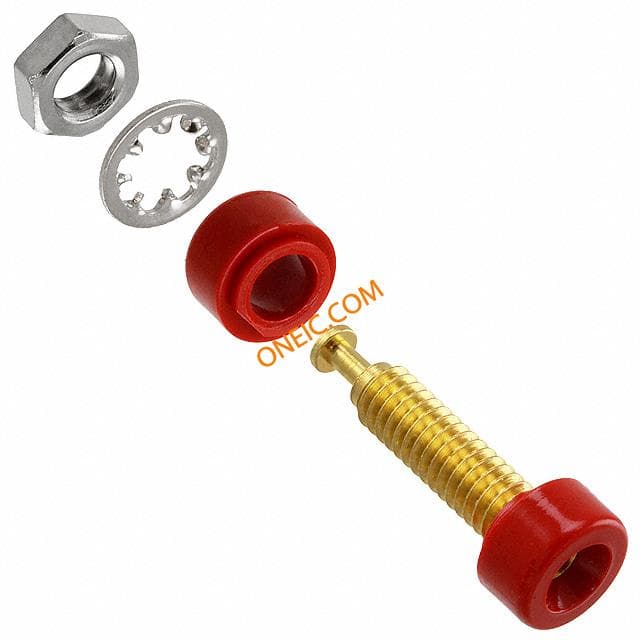

2142-2
