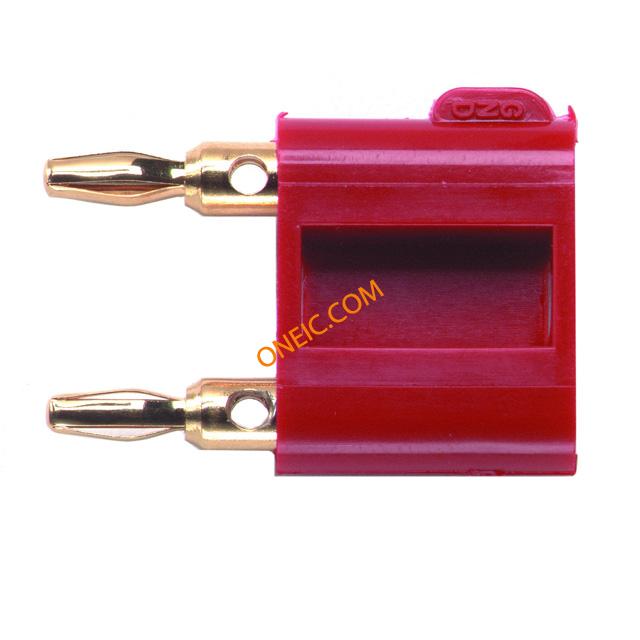

2244-2
| Manufacturer | |
| Description | Test Plugs & Test Jacks DOUBLE BAN JACK RED Fluke MINI BANANA PLUG/JACK (RED) PLUG MINI DOUBLE BANANA RED Conn Banana PL 2 POS ST Cable Mount 2 Port DOUBLE BANANA PLUG, 5A, SCREW, RED BananaPlugWithSetscrews,MiniatureDouble,Red |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1931133 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 5 | Factory Pack Quantity | 5 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 2.5 kV | Current Rating (Max) | 5 A |
Mechanical
| Size | Mini | Color | Red |
| Length | 1.1 in | Weight | 0.005 |
| Packaging | Bulk | Insulation | Non-Mating End Insulated |
| Wire Gauge | 0.150" (3.81mm) Dia Wire | Termination | Solderless |
| Body Material | Polypropylene (PP) | Mounting Type | Free Hanging (In-Line) |
| Contact Finish | Gold | Material - Body | Brass,Alloy360 |
| Contact Material | Beryllium Copper | Primary Material | Banana |
| Pin Hole Diameter | 0.5" | Color - Connectors | :Red |
| Number of Contacts | 2 | Contact Termination | :Screw |
| Insulation Material | Polycarbonate | Plug/Mating Plug Diameter | Miniature |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | Banana Plug, Double, Stackable | Gender | Male |
| Series | :2244 | Features | Set Screw |
| Manufacturer | 2244Series | Equipment Type | Banana Jacks |
Environmental
| Operating Temperature | 50°C | ||
