点击放大查看

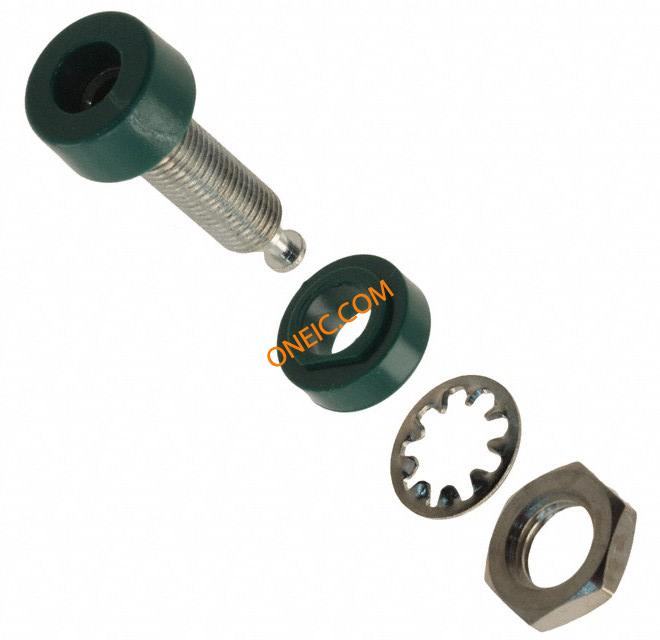

1581-5
| Manufacturer | |
| Description | Test Plugs & Test Jacks PANEL MOUNT BANANA JACK GREEN Conn Banana Jack F 1 POS ST Panel Mount 1 Port JACK BANA PANEL MT TIN GRN 10PC PANEL MOUNT BANANA JACK, 15A, TURRET, GREEN Jack,Banana;BananaJack;30VAC/60VDC(Max.);15A;Brass;Polycarbonate Tin Plated Panel Mount Banana Jack, Green, 10 per Pack |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1939337 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 1 | Factory Pack Quantity | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 2.5 kV | Current Rating (Max) | 15 A |
Mechanical
| Color | Green | Height | 12.7 |
| Length | 1.22 in | Weight | 0.054 |
| Diameter | 12.7 | Packaging | 10 per Bag |
| Insulation | Mating End Insulated | Termination | Turret |
| Body Material | Polycarbonate (PC) | Housing Color | Green |
| Mounting Type | Panel Mount | Contact Finish | Nickel |
| Mounting Style | Panel | Material - Body | Brass |
| Contact Material | Brass | Housing Material | Polycarbonate |
| Length - Overall | 30.99 | Primary Material | Banana |
| Color - Connectors | :Green | Number of Contacts | 1 |
| Contact Termination | :Stud / Turret | Insulation Material | Polycarbonate |
| Material - Insulation | Polycarbonate | Plug/Mating Plug Diameter | Standard |
Product Info
| Type | Banana Jack | Gender | F |
| Series | :1581 | Manufacturer | 1581Series |
| Equipment Type | Banana Jacks | Number of Ports | 1 |
Environmental
| Operating Temperature | 115°C | Operating Temperature - Junction | 115°C |
Documents & Media
Online Document
PDF Document
PDF Document
PDF Document
