点击放大查看

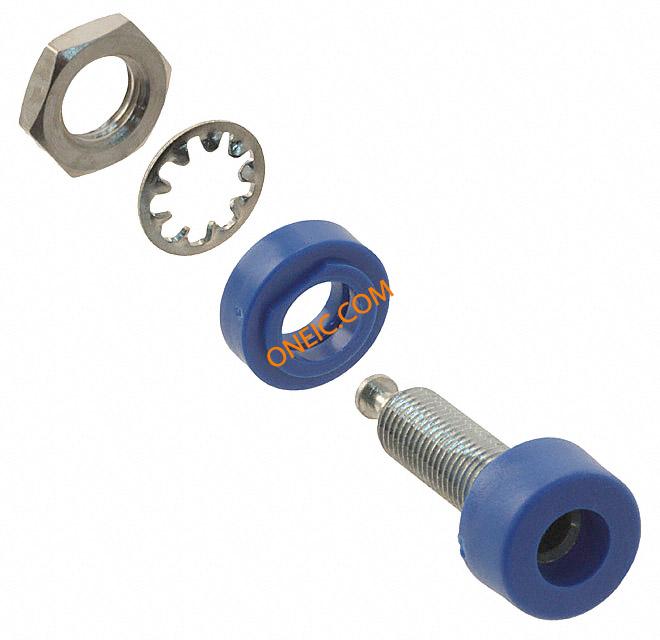

1581-6
| Manufacturer | |
| Description | Test Plugs & Test Jacks PANEL MOUNT BANANA JACK BLUE Conn Banana Jack F 1 POS ST Panel Mount 1 Port JACK BANA PANEL MT TIN BLU 10PC Jack,Banana;BananaJack;30VAC/60VDC(Max.);15A;Brass;Polycarbonate Tin Plated Panel Mount Banana Jack, Blue, 10 per Pack |
| Category |
Business
| Part # Aliases | 3105047 | Product Category | Test Plugs & Test Jacks |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 2.5 kV | Current Rating (Max) | 15 A |
Mechanical
| Color | Blue | Height | 12.7 |
| Length | 1.22 in | Diameter | 12.7 |
| Material | Polycarbonate | Packaging | 10 per Bag |
| Insulation | Mating End Insulated | Termination | Turret |
| Body Material | Polycarbonate (PC) | Housing Color | Blue |
| Mounting Type | Panel Mount | Contact Finish | Nickel |
| Mounting Style | Panel | Material - Body | Brass |
| Material - Core | Metal|Plastic | Contact Material | Brass |
| Housing Material | Polycarbonate | Length - Overall | 30.99 |
| Primary Material | Banana | Number of Contacts | 1 |
| Insulation Material | Polycarbonate | Material - Insulation | Polycarbonate |
| Plug/Mating Plug Diameter | Standard | ||
Product Info
| Type | Banana Jack | Gender | F |
| Series | 1581 | Manufacturer | 1581Series |
| Equipment Type | Banana Jacks | Number of Ports | 1 |
Environmental
| Operating Temperature | 115°C | Operating Temperature - Junction | 115°C |
Documents & Media
Similar Parts
1325-6
Pomona Electronics
Test Plugs & Test Jacks BANANA PLUG BLUE Conn Banana PL 1 POS Screw ST Cable Mount 1 Port Test Plugs & Test Jacks BANANA PLUG (BLUE) BANANA PLUG DIY 10/PKG BLUE BANANA PLUG, 15A, SCREW, BLUE BananaJack;BananaJack;15A;Blue;BerylliumCopper;5000Vrms(Max.)

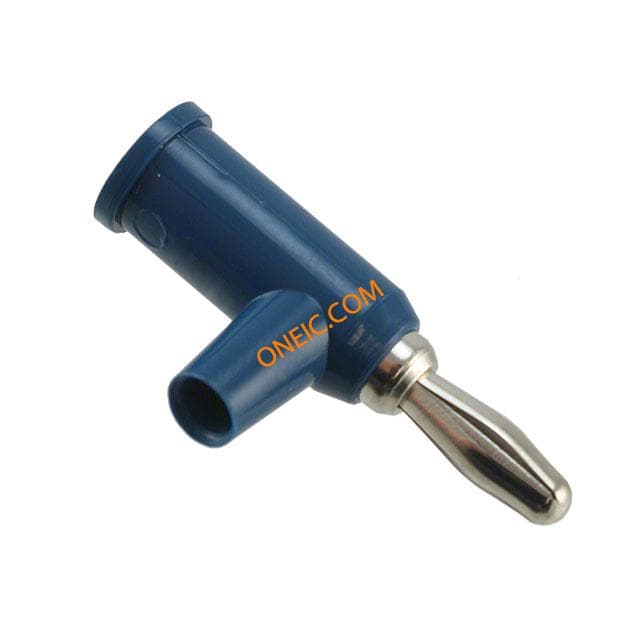

4899-6
Pomona Electronics
Test Plugs & Test Jacks BANANA PLUG BANA PLUG W/SHIELD DIY 10PC BLU Conn Banana PL 1 POS Screw ST Cable Mount 1 Port BANANA JACK, 15A, SCREW, BLUE
1825-6
Pomona Electronics
Test Plugs & Test Jacks BANANA PLUG BLUE Conn Banana PL 1 POS Screw ST Cable Mount 1 Port Test Plugs & Test Jacks BANANA PLUG PKG (BLUE) BANANA PLUG W/SHIELD 10PC BLUE BANANA PLUG, 15A, SCREW, BLUE BananaJack;BananaJack;15A;Blue;BerylliumCopper;5000Vrms(Max.)

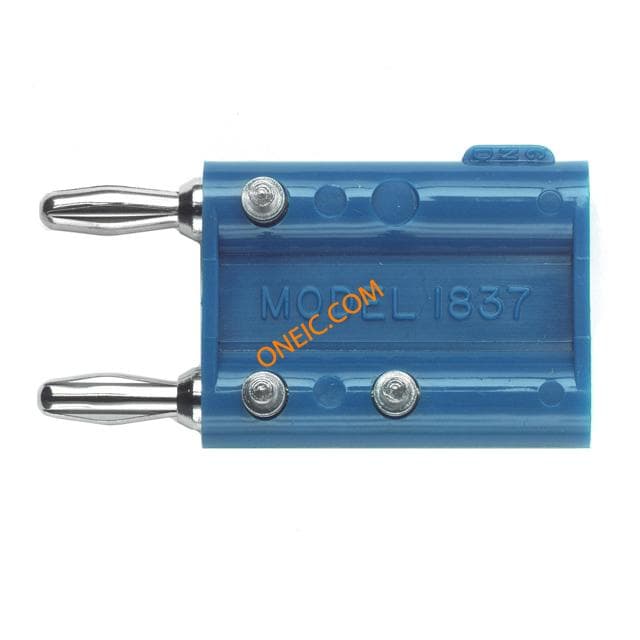

1837
