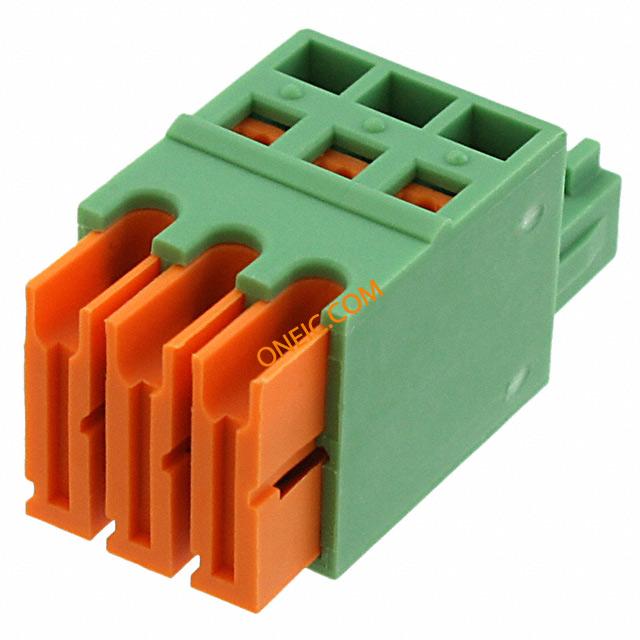

1897403
| Manufacturer | |
| Description | Pluggable Terminal Blocks 3P 3.81mm 180DEG Conn Terminal Block F 3 POS 3.81mm IDT RA Cable Mount 6A TERM BLOCK PLUG 3POS STR 3.81MM Printed-circuit board connector QC 0,5/ 3-ST-3,81 QC05/3-ST-381 Phoenix Contact MINI COMBICON QC 系列 3.81mm 节距 3 路 母 绿色 插头, IDC端接 |
| Category |
Business
| Product | Plugs | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 1 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 6A | Voltage | 300V |
| Voltage Rating | 200 V | Current Rating (Max) | 6 A |
| Voltage - Input (Min) | 200V | ||
Mechanical
| Color | Green | Depth | 22.3 |
| Pitch | 0.150" (3.81mm) | Height | 12.9 |
| Weight | 3.421574 oz | Material | 聚酰胺，镀锡 |
| Packaging | Bulk | Wire Gauge | 20-24 AWG |
| Termination | IDT | Mounting Type | Cable Mount |
| Connector Type | 母座 | Contact Finish | Tin |
| Number of Rows | 1 | Plug Wire Entry | 180° |
| Housing Material | Polyamide | Length - Overall | 12.22 |
| Termination Rows | IDC | Termination Style | IDC / IDT |
| Number of Contacts | 3 | Number of Positions | 3 |
| Terminal Block Type | Plug, Female Sockets | Wire Gauge or Range - AWG | 22-20 |
Product Info
| Type | Terminal Block | Gender | F |
| Series | QC | Number of Levels | 1 |
| Positions Per Level | 3 | ||
