1803439

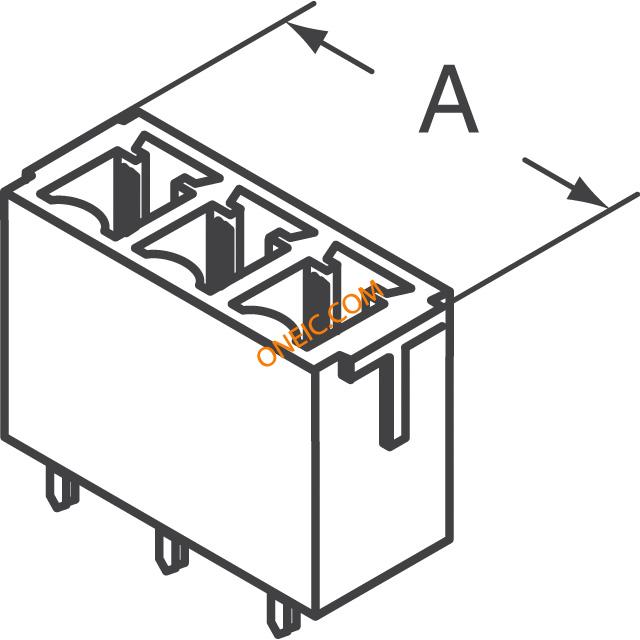

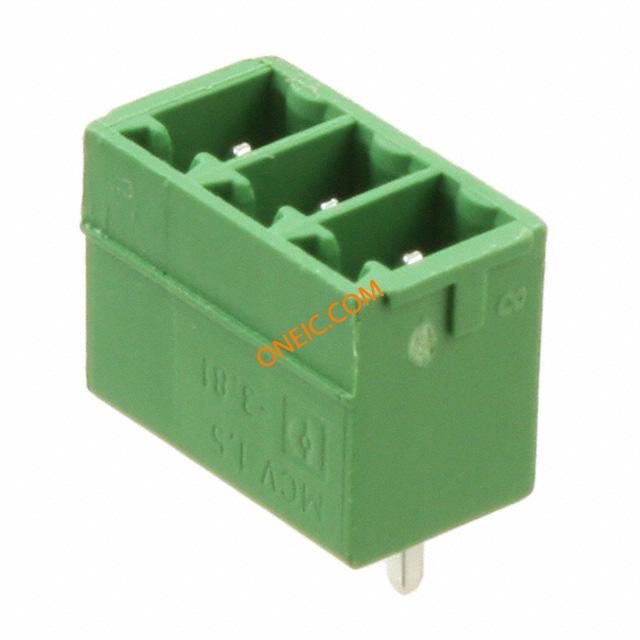

| Manufacturer | |
| Description | Pluggable Terminal Blocks 3.81 3P HEADER 180D Conn Shrouded Header HDR 3 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 3POS VERT 3.81MM CONNECTOR, HEADER, THT, 3.81MM, 3WAY Conn;TermBlk;PCB;Header;SnglLvl;Sldr;3Pole;3.81mmPitch;COMBICON Phoenix Contact COMBICON MCV 系列 3.81mm节距 3路 (1排) 直 印刷电路板接线端子块, 焊接端接, 8A |
| Category |
Business
| Product | Headers | Tradename | COMBICON Control |
| Part # Aliases | 1,5/ 3-G-3,81 MCV | Product Category | Pluggable Terminal Blocks |
| Standard Package | 250 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Standards | CSACertified,cULListed,ULListed |
| Tariff No | 85369010 | Approval Agency | UL,CUL,CSA |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 8A | Voltage | 300V |
| Range deg/s | :PHOENIX - MCV Series | Voltage Rating | 160 V |
| Number of Poles | 3Poles | Current - Output | 8A |
| Voltage - Nominal | 160V | Current Rating (Max) | 8 A |
| Voltage - Input (Min) | 160V@IEC|300V@UL | Voltage - Supply (Min) | 160V |
| Voltage - Protection Level (VP) (2416) | 2.5kV | ||
Mechanical
| Color | Green | Depth | 7.25 mm |
| Pitch | 0.150" (3.81mm) | Height | 9.2 mm |
| Length | 7 mm | Weight | 4 oz |
| Packaging | Bulk | Termination | Solder |
| Hole Diameter | 1.2mm | Housing Color | Green |
| Mounting Type | Straight | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Material Finish | :- | Contact Material | :- |
| Housing Material | Polybutylene Terephthalate | Length - Overall | 12.82 mm |
| Primary Material | PCB | Size / Dimension | 12.82mmLx18.7mmWx11.1mmH |
| Pin Hole Diameter | 3.81mm | Termination Style | Through Hole |
| Header Orientation | Vertical | Number of Contacts | 3 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 3 |
| Terminal Block Type | Header, Male Pins, Shrouded (4 Side) | Material - Insulation | PBT |
| Pin Size - Below Flange | 0.8x0.8mm | ||
Product Info
| Type | Shrouded Header | Level | SingleLevel |
| Gender | HDR | Series | MCV |
| Manufacturer | COMBICON | Number of Levels | 1 |
| Base Product Number | MCV1,5/3-G-3,81 | Positions Per Level | 3 |
Documents & Media
Similar Parts
1826982
Phoenix Contact
Pluggable Terminal Blocks 3.81 3P PLUG 270DEG Conn Terminal Block F 3 POS 3.81mm Screw ST Cable Mount 8A TERM BLOCK PLUG 3POS 3.81MM Printed-circuit board connector MCVW 1,5/ 3-ST-3,81 Conn Terminal Blocks F 3 POS 3.81mm Screw ST Cable Mount 8A PLUG, FREE, R/A, 3.81MM, 3WAY Conn;TermBlk;Plug;Screw;3;3.81mm;30-14AWG;8A;300V;PA;M2 Phoenix Contact MINI COMBICON MCVW 系列 3.81mm 节距 3 路 母 绿色 直 插头, 插入式, 螺钉端接
1875438
Phoenix Contact
Pluggable Terminal Blocks IMCV 1.5/ 3-G-3.81 Conn Wire to Board F 3 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 3POS VERT 3.81MM Header for PCB plug connector IMCV 1,5/ 3-G-3,81 IMCV15/3-G-381
1850673
Phoenix Contact

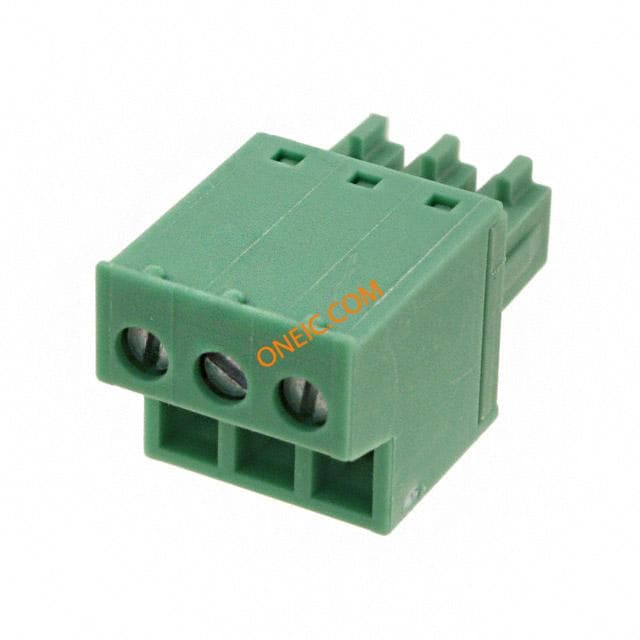

プラグ着脱可能ターミナルブロック 3P 3.81mm Conn Terminal Block F 3 POS 3.81mm Screw ST Cable Mount 8A TERM BLOCK PLUG 3POS STR 3.81MM Printed-circuit board connector FRONT-MC 1,5/ 3-ST-3,81 Pluggable Terminal Blocks 3P 3.81mm FRONT-MC15/3-ST-381
1862580
Phoenix Contact
Pluggable Terminal Blocks IMC 1.5/3-G-3.81 TERM BLOCK HDR 3POS R/A 3.81MM Header for PCB plug connector IMC 1,5/ 3-G-3,81 Conn Wire to Board F 3 POS 3.81mm Solder RA Thru-Hole IMC15/3-G-381
1851054
Phoenix Contact

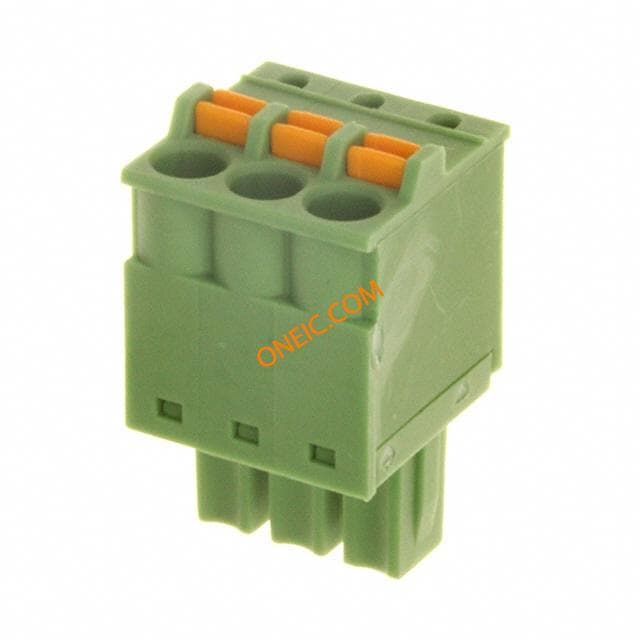

Pluggable Terminal Blocks FK-MCP 1 5/ 3-ST-3 3 POSITION Conn Spring Cage F 3 POS 3.81mm ST 8A TERM BLOCK PLUG 3POS STR 3.81MM FK-MCP15/3-ST-381 Phoenix Contact 3 路 无熔丝端子块, 电缆安装, 320 V
1827130
Phoenix Contact

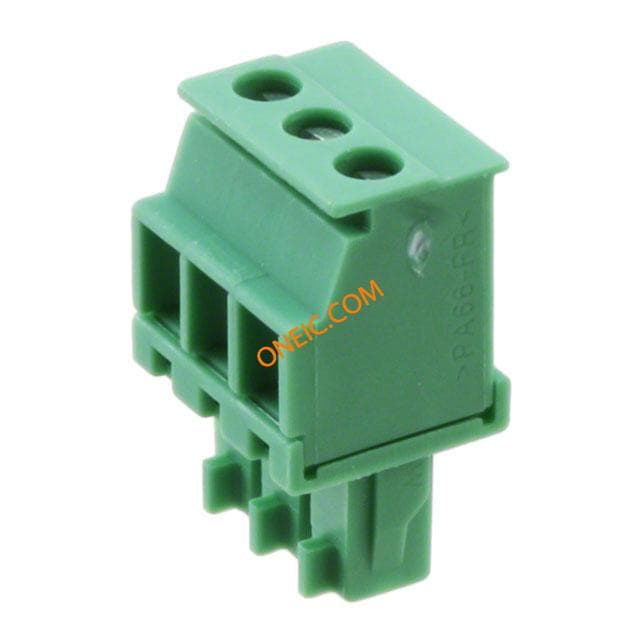

Pluggable Terminal Blocks 3.81 3P PLUG 90DEG Conn Terminal Block F 3 POS 3.81mm Screw ST Cable Mount 8A TERM BLOCK PLUG 3POS 3.81MM Printed-circuit board connector MCVR 1,5/ 3-ST-3,81 Conn Terminal Blocks F 3 POS 3.81mm Screw ST Cable Mount 8A PLUG, FREE, R/A, 3.81MM, 3WAY Conn;TermBlk;Plug;Screw;3;3.81mm;30-14AWG;8A;300V;PA;M2 Phoenix Contact MINI COMBICON MCVR 系列 3.81mm 节距 3 路 母 绿色 直 插头, 电缆安装, 螺钉端接
1897403
Phoenix Contact

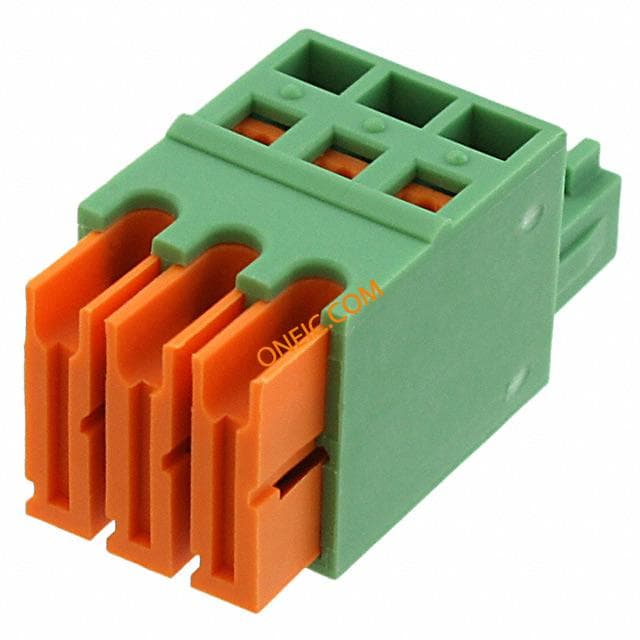

Pluggable Terminal Blocks 3P 3.81mm 180DEG Conn Terminal Block F 3 POS 3.81mm IDT RA Cable Mount 6A TERM BLOCK PLUG 3POS STR 3.81MM Printed-circuit board connector QC 0,5/ 3-ST-3,81 QC05/3-ST-381 Phoenix Contact MINI COMBICON QC 系列 3.81mm 节距 3 路 母 绿色 插头, IDC端接
