点击放大查看

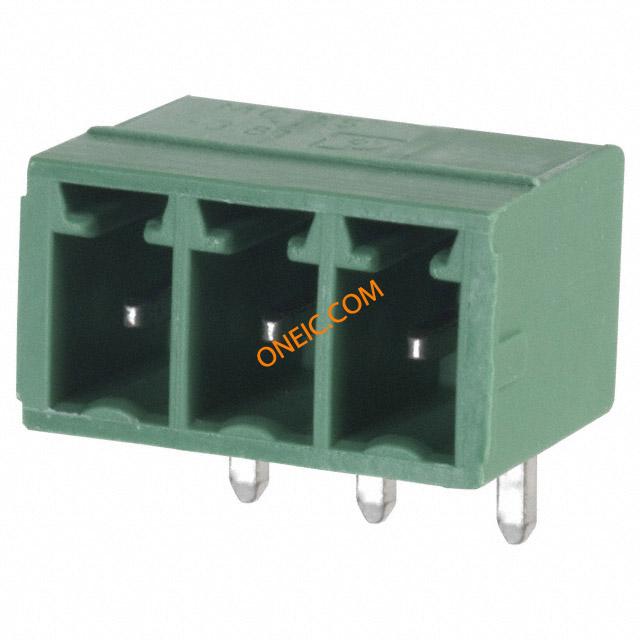

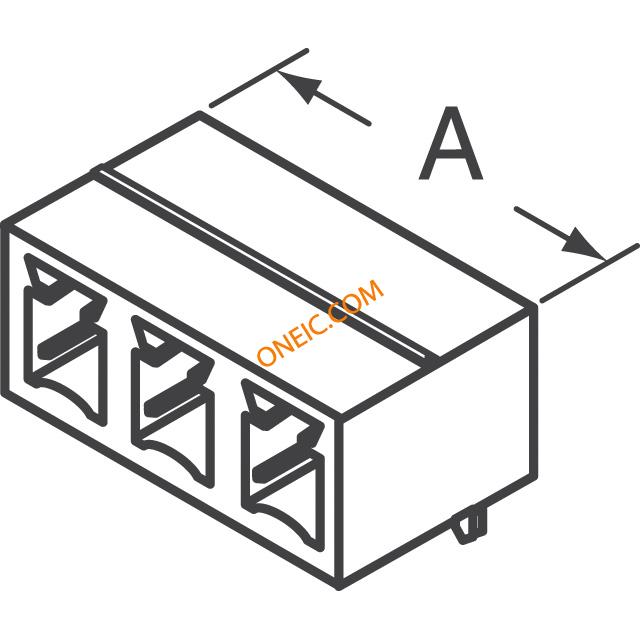

1803280
| Manufacturer | |
| Description | Pluggable Terminal Blocks 3.81 3P HEADER 90DEG Conn Shrouded Header HDR 3 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 3POS R/A 3.81MM Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;3Pole;3.81mmPitch;COMBICON Pluggable terminal block; socket; male; angled; 3.81mm; THT; 8A Phoenix Contact COMBICON MC 系列 3.81mm节距 3路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 8A |
| Category |
Business
| Product | Headers | Tradename | COMBICON Control |
| Part # Aliases | 1,5/ 3-G-3,81 MC | Product Category | Pluggable Terminal Blocks |
| Standard Package | 250 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | CSACertified,cULListed,ULListed | Approval Agency | UL,CUL,CSA |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 8A | Voltage | 300V |
| Voltage Rating | 160 V | Number of Poles | 3Poles |
| Current - Output | 8A | Voltage - Nominal | 160V |
| Current Rating (Max) | 8 A | Voltage - Input (Min) | 160V@IEC|300V@UL |
| Voltage - Supply (Min) | 160V | Voltage - Protection Level (VP) (2416) | 2.5kV |
Mechanical
| Color | Green | Depth | 9.2 mm |
| Pitch | 0.150" (3.81mm) | Height | 7.25 mm |
| Length | 7 mm | Weight | 4 oz |
| Packaging | Bulk | Orientation | angled |
| Termination | Solder | Pitch - Post | 3.81mm |
| Hole Diameter | 1.2mm | Housing Color | Green |
| Mounting Type | Right Angle | Connector Type | male |
| Contact Finish | Tin | Mounting Style | Through Hole |
| Number of Rows | 1 | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 12.82 mm | Package Quantity | 50 |
| Primary Material | PCB | Size / Dimension | 12.82mmLx18.7mmWx11.1mmH |
| Termination Rows | 焊接 | Connector - Cable | socket |
| Pin Hole Diameter | 3.81mm | Termination Style | Through Hole |
| Header Orientation | 90°, Right Angle | Number of Contacts | 3 |
| Number of Positions | 3 | Terminal Block Type | Header, Male Pins, Shrouded (4 Side) |
| Material - Insulation | PBT | Pin Size - Below Flange | 0.8x0.8mm |
Product Info
| Spg | 50 | Type | Shrouded Header |
| Level | SingleLevel | Gender | HDR |
| Series | MC | Features | 90Deg |
| CAD Drawing | 3D CAD 模型 | Manufacturer | COMBICON |
| Number of Units | 1 | Number of Levels | 1 |
| Base Product Number | MC1,5/3-G-3,81 | Positions Per Level | 3 |
Documents & Media
