1875425
| Manufacturer | |
| Description | Pluggable Terminal Blocks IMCV 1.5/ 2-G-3.81 Conn Wire to Board HDR 2 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 2POS VERT 3.81MM Header for PCB plug connector IMCV 1,5/ 2-G-3,81 Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, ... Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, Metal surface: Sn, Assembly: Soldering IMCV15/2-G-381 |
| Category |
Business
| Product | Headers - Inverted | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 8A | Voltage | 300V |
| Voltage Rating | 160 V | Current Rating (Max) | 8 A |
| Voltage - Input (Min) | 160V | ||
Mechanical
| Color | Green | Depth | 7.8 |
| Pitch | 0.150" (3.81mm) | Height | 14.5 |
| Weight | 0.029630 oz | Packaging | Bulk |
| Termination | Solder | Housing Color | Green |
| Mounting Type | Straight | Contact Finish | Tin |
| Number of Rows | 1 | Housing Material | Polyamide |
| Length - Overall | 8.41 | Termination Style | Through Hole |
| Header Orientation | Vertical | Number of Contacts | 2 |
| Number of Positions | 2 | Terminal Block Type | Header, Female Sockets |
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | IMCV | Number of Levels | 1 |
| Positions Per Level | 2 | ||
Documents & Media
Similar Parts
1830402
Phoenix Contact
Pluggable Terminal Blocks MCDV 1 5/ 2-G-3 81 Conn Wire to Board HDR 4 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 4POS VERT 3.81MM Header for PCB plug connector MCDV 1,5/ 2-G-3,81 Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 4 mm, Color: green, ... Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 4 mm, Color: green, Metal surface: Sn, Assembly: Soldering, Assembly: Soldering, In combination with MCV plug components, both an MCVW and an MCVR plug must be used. MCDV15/2-G-381
1803426
Phoenix Contact
プラグ着脱可能ターミナルブロック 3.81 2P HEADER 180D Conn Shrouded Header HDR 2 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 2POS VERT 3.81MM Pluggable Terminal Blocks 3.81 2P HEADER 180D CONNECTOR, HEADER, THT, 3.81MM, 2WAY Conn;TermBlk;PCB;Header;SnglLvl;Sldr;2Pole;3.81mmPitch;COMBICON Phoenix Contact COMBICON MCV 系列 3.81mm节距 2路 (1排) 直 印刷电路板接线端子块, 焊接端接, 8A

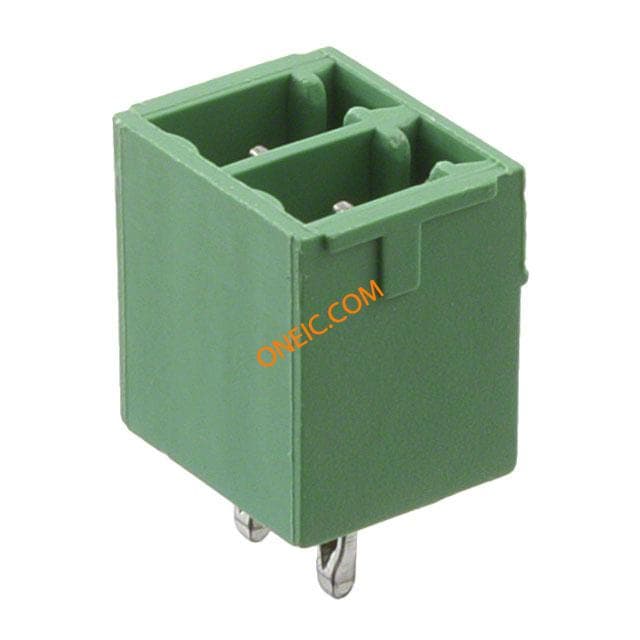

1860647
Phoenix Contact
Pluggable Terminal Blocks MCV 1.5/ 2G-3.81 Conn Wire to Board HDR 2 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 2POS VERT 3.81MM Header for PCB plug connector EMCV 1,5/ 2-G-3,81 EMCV15/2-G-381 Phoenix Contact COMBICON EMCV 系列 2路 3.81mm节距 PCB 接线端子块 , 按式端接, 8A
1803277
Phoenix Contact
Pluggable Terminal Blocks 3.81 2P HEADER 90DEG Conn Shrouded Header HDR 2 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 2POS R/A 3.81MM Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;2Pole;3.81mmPitch;COMBICON Pluggable terminal block; socket; male; angled; 3.81mm; THT; 8A Phoenix Contact COMBICON MC 系列 3.81mm节距 2路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 8A
1829950
Phoenix Contact
Pluggable Terminal Blocks 8 A 160 V 2-POS HEADER Conn Wire to Board HDR 4 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 4POS R/A 3.81MM Header for PCB plug connector MCD 1,5/ 2-G-3,81 Header,Nominalcurrent:8A2Postions
1857883
Phoenix Contact
Pluggable Terminal Blocks IMC 1 5/ 2-ST-3 81 3.81mm 2P HEADER TERM BLOCK PLUG 2POS STR 3.81MM COMBICON PCB plugs IMC 1,5/ 2-ST-3,81 Conn Terminal Block F 2 POS 3.81mm Screw RA Cable Mount 8A Conn;TermBlk;Plug;Screw;2;3.81mm;28-16Awg;Green;8A;300V;M2 Phoenix Contact MINI COMBICON IMC 系列 3.81mm 节距 2 路 公 绿色 直 反相插头, 电缆安装, 螺钉端接

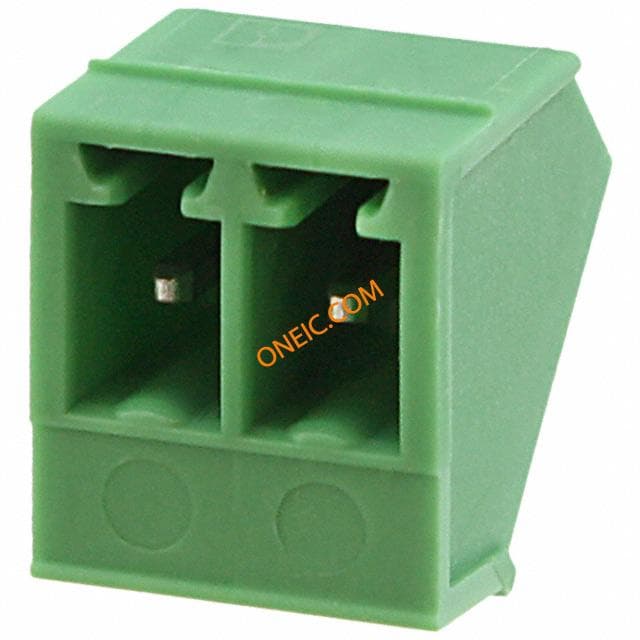

1827279
Phoenix Contact
Pluggable Terminal Blocks 3.81 2P HEADER 45DEG Conn Shrouded Header HDR 2 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 2POS 45DEG 3.81MM Header for PCB plug connector SMC 1,5/ 2-G-3,81 SMC15/2-G-381 Phoenix Contact COMBICON SMC 系列 3.81mm节距 2路 印刷电路板接线端子块, 焊接端接, 8A
1878480
Phoenix Contact
Pluggable Terminal Blocks MCV 1.5/ 2-G- 3.81 BLACK Conn Wire to Board HDR 2 POS 3.81mm TERM BLOCK HDR 2POS VERT 3.81MM MCV15/2-G-381BK
1943263
Phoenix Contact
Pluggable Terminal Blocks IMC 1.5/2-ST-3.81 AU TERM BLOCK PLUG 2POS STR 3.81MM Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, ... Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, Metal surface: Au IMC15/2-ST-381AU

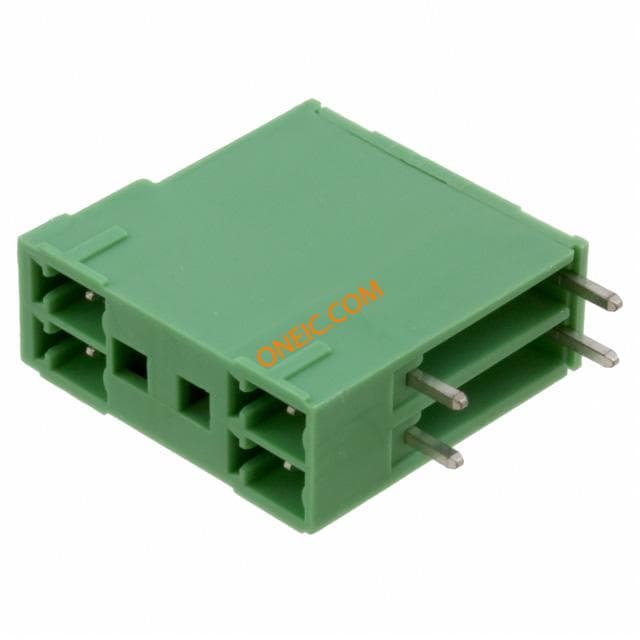

1843075
