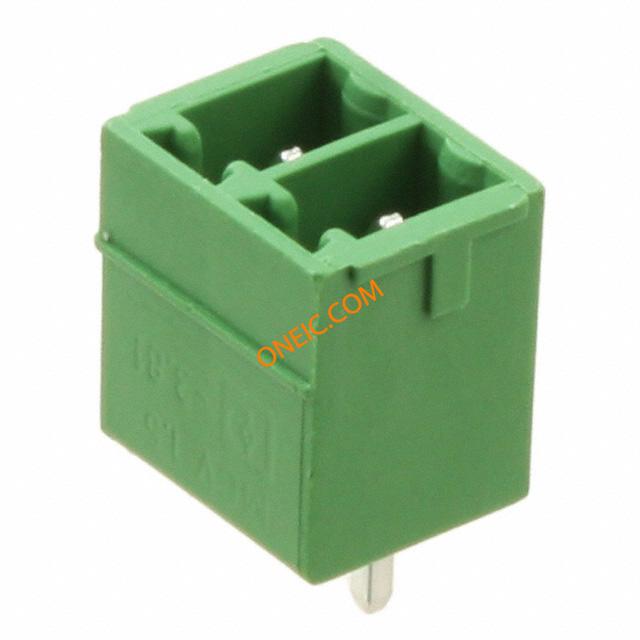

1803426
| Manufacturer | |
| Description | プラグ着脱可能ターミナルブロック 3.81 2P HEADER 180D Conn Shrouded Header HDR 2 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 2POS VERT 3.81MM Pluggable Terminal Blocks 3.81 2P HEADER 180D CONNECTOR, HEADER, THT, 3.81MM, 2WAY Conn;TermBlk;PCB;Header;SnglLvl;Sldr;2Pole;3.81mmPitch;COMBICON Phoenix Contact COMBICON MCV 系列 3.81mm节距 2路 (1排) 直 印刷电路板接线端子块, 焊接端接, 8A |
| Category |
Business
| Product | Headers | Tradename | COMBICON Control |
| Part # Aliases | 1,5/ 2-G-3,81 MCV | Product Category | Pluggable Terminal Blocks |
| Standard Package | 250 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Standards | CSACertified,cULListed,ULListed |
| Tariff No | 85369010 | Approval Agency | UL,CUL,CSA |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 8A | Voltage | 300V |
| Range deg/s | :PHOENIX - MCV Series | Voltage Rating | 160 V |
| Number of Poles | 2Poles | Current - Output | 8A |
| Voltage - Nominal | 160V | Current Rating (Max) | 8 A |
| Voltage - Input (Min) | 160V@IEC|300V@UL | Voltage - Protection Level (VP) (2416) | 2.5kV |
Mechanical
| Color | Green | Depth | 7.25 |
| Pitch | 0.150" (3.81mm) | Height | 9.2 |
| Length | 7 mm | Weight | 4 oz |
| Packaging | Bulk | Termination | Solder |
| Hole Diameter | 1.2mm | Housing Color | Green |
| Mounting Type | Straight | Contact Finish | Tin |
| Mounting Style | Soldering | Number of Rows | 1 |
| Material Finish | :- | Contact Material | :- |
| Housing Material | Polybutylene Terephthalate | Length - Overall | 9.01 |
| Primary Material | PCB | Size / Dimension | 9.01mmLx18.7mmWx11.1mmH |
| Pin Hole Diameter | 3.81mm | Termination Style | Through Hole |
| Header Orientation | Vertical | Number of Contacts | 2 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 2 |
| Terminal Block Type | Header, Male Pins, Shrouded (4 Side) | Material - Insulation | PBT |
| Pin Size - Below Flange | 0.8x0.8mm | ||
Product Info
| Type | Shrouded Header | Level | SingleLevel |
| Gender | HDR | Series | MCV |
| Manufacturer | COMBICON | Number of Levels | 1 |
| Base Product Number | MCV1,5/2-G-3,81 | Positions Per Level | 2 |
