点击放大查看
1803277
| Manufacturer | |
| Description | Pluggable Terminal Blocks 3.81 2P HEADER 90DEG Conn Shrouded Header HDR 2 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 2POS R/A 3.81MM Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;2Pole;3.81mmPitch;COMBICON Pluggable terminal block; socket; male; angled; 3.81mm; THT; 8A Phoenix Contact COMBICON MC 系列 3.81mm节距 2路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 8A |
| Category |
Business
| Product | Headers | Tradename | COMBICON Control |
| Part # Aliases | 1,5/ 2-G-3,81 MC | Product Category | Pluggable Terminal Blocks |
| Standard Package | 250 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | CSACertified,cULListed,ULListed | Approval Agency | UL,CUL,CSA |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 8A | Voltage | 300V |
| Voltage Rating | 160 V | Number of Poles | 2Poles |
| Current - Output | 8A | Voltage - Nominal | 160V |
| Current Rating (Max) | 8 A | Voltage - Input (Min) | 160V@IEC|300V@UL |
| Voltage - Protection Level (VP) (2416) | 2.5kV | ||
Mechanical
| Color | Green | Depth | 9.2 |
| Pitch | 0.150" (3.81mm) | Height | 7.25 |
| Length | 7 mm | Weight | 4 oz |
| Packaging | Bulk | Orientation | angled |
| Termination | Solder | Pitch - Post | 3.81mm |
| Hole Diameter | 1.2mm | Housing Color | Green |
| Mounting Type | Right Angle | Connector Type | male |
| Contact Finish | Tin | Mounting Style | Soldering |
| Number of Rows | 1 | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 9.01 | Package Quantity | 50 |
| Primary Material | PCB | Size / Dimension | 9.01mmLx18.7mmWx11.1mmH |
| Termination Rows | 焊接 | Connector - Cable | socket |
| Pin Hole Diameter | 3.81mm | Termination Style | Through Hole |
| Header Orientation | 90°, Right Angle | Number of Contacts | 2 |
| Number of Positions | 2 | Terminal Block Type | Header, Male Pins, Shrouded (4 Side) |
| Material - Insulation | PBT | Pin Size - Below Flange | 0.8x0.8mm |
Product Info
| Spg | 50 | Type | Shrouded Header |
| Level | SingleLevel | Gender | HDR |
| Series | MC | Features | 90Deg |
| CAD Drawing | 3D CAD 模型 | Manufacturer | COMBICON |
| Number of Units | 1 | Number of Levels | 1 |
| Base Product Number | MC1,5/2-G-3,81 | Positions Per Level | 2 |
Documents & Media
Similar Parts
1862577
Phoenix Contact
Pluggable Terminal Blocks IMC 1 5/ 2-G-3 81 Conn Shrouded Header HDR 2 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 2POS R/A 3.81MM Header for PCB plug connector IMC 1,5/ 2-G-3,81 IMC15/2-G-381
1897393
Phoenix Contact
Pluggable Terminal Blocks 2P 3.81mm 180DEG Conn Terminal Block F 2 POS IDT RA Cable Mount 6A TERM BLOCK PLUG 2POS STR 3.81MM Printed-circuit board connector QC 0,5/ 2-ST-3,81 QC05/2-ST-381 Phoenix Contact MINI COMBICON QC 系列 3.81mm 节距 2 路 母 绿色 插头, IDC端接
1800269
Phoenix Contact
Pluggable Terminal Blocks FK-MCP 1,5/ 2-ST-3,81 BK Conn Terminal Block F 2 POS 3.81mm 8A TERM BLOCK PLUG 2POS STR 3.81MM FK-MCP15/2-ST-381BK
1803578
Phoenix Contact
プラグ着脱可能ターミナルブロック 3.81 2P PLUG 180DEG Conn Terminal Block F 2 POS 3.81mm Screw RA Cable Mount 8A TERM BLOCK PLUG 2POS STR 3.81MM MC 1,5/ 2-ST-3,81 Pluggable Terminal Blocks 3.81 2P PLUG 180DEG PLUG, FREE, 3.81MM, 2WAY Conn;TermBlk;Plug;Screw;2;3.81mm;30-14AWG;8A;300V;PA;M2 Pluggable terminal block; plug; 3.81mm; ways:2; 8A; 160V Phoenix Contact 2 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 320 V

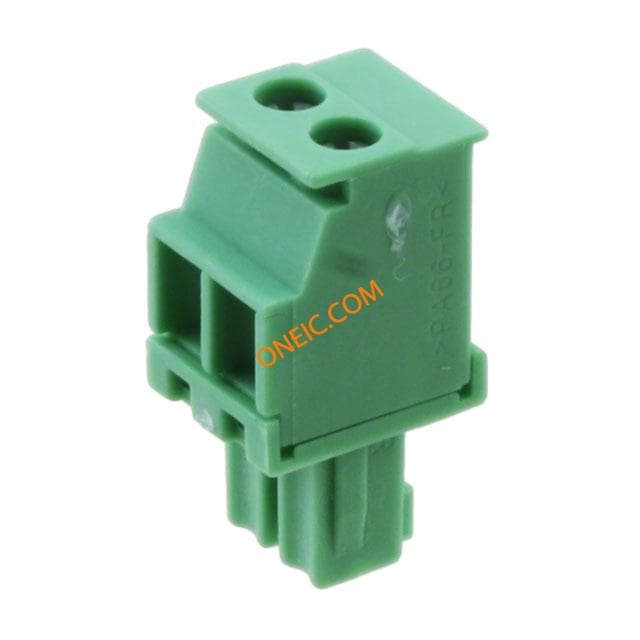

1826979
Phoenix Contact
Pluggable Terminal Blocks 3.81 2P PLUG 270DEG Conn Terminal Block F 2 POS 3.81mm Screw ST Cable Mount 8A TERM BLOCK PLUG 2POS 3.81MM Printed-circuit board connector MCVW 1,5/ 2-ST-3,81 Conn Terminal Blocks F 2 POS 3.81mm Screw ST Cable Mount 8A PLUG, FREE, R/A, 3.81MM, 2WAY Conn;TermBlk;Plug;Screw;2;3.81mm;30-14AWG;8A;300V;PA;M2 Phoenix Contact MINI COMBICON MCVW 系列 3.81mm 节距 2 路 母 绿色 直 插头, 插入式, 螺钉端接
1850660
Phoenix Contact
Pluggable Terminal Blocks FRONT-MC 1 5/ 2-ST-3 Conn Terminal Block F 2 POS 3.81mm Screw ST Cable Mount 8A TERM BLOCK PLUG 2POS STR 3.81MM Printed-circuit board connector FRONT-MC 1,5/ 2-ST-3,81 Conn Terminal Blocks F 2 POS 3.81mm Screw ST Cable Mount 8A FRONT-MC15/2-ST-381
1875425
Phoenix Contact
Pluggable Terminal Blocks IMCV 1.5/ 2-G-3.81 Conn Wire to Board HDR 2 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 2POS VERT 3.81MM Header for PCB plug connector IMCV 1,5/ 2-G-3,81 Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, ... Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, Metal surface: Sn, Assembly: Soldering IMCV15/2-G-381

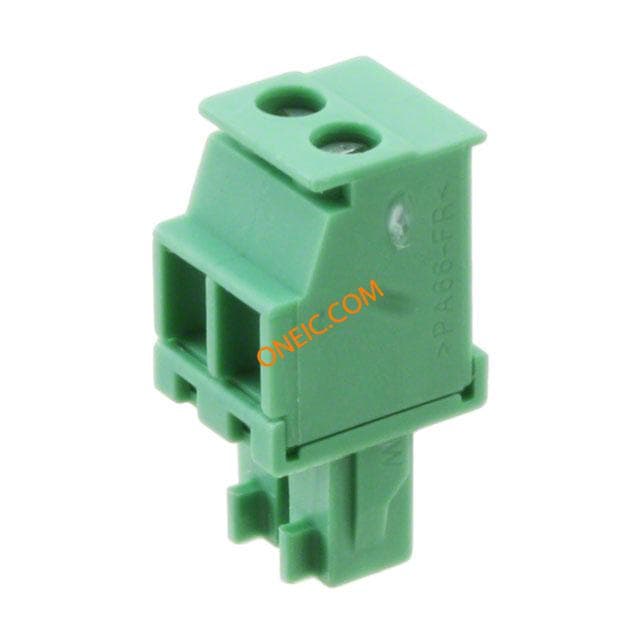

1827127
