1862632
| Manufacturer | |
| Description | Pluggable Terminal Blocks IMC 1.5/ 8-G-3.81 Conn Wire to Board HDR 8 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 8POS R/A 3.81MM Header for PCB plug connector IMC 1,5/ 8-G-3,81 IMC15/8-G-381 Phoenix Contact COMBICON IMC 系列 3.81mm节距 8路 印刷电路板接线端子块, 焊接端接, 8A |
| Category |
Business
| Product | Headers - Inverted | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 1 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 8A | Voltage | 300V |
| Voltage Rating | 160 V | Current Rating (Max) | 8 A |
| Voltage - Input (Min) | 160V | ||
Mechanical
| Color | Green | Depth | 14.5 |
| Pitch | 0.150" (3.81mm) | Height | 6.85 |
| Weight | 4.268149 oz | Packaging | Bulk |
| Termination | Solder | Housing Color | Green |
| Mounting Type | Right Angle | Contact Finish | Tin |
| Number of Rows | 1 | Contact Material | 锡 |
| Housing Material | Polyamide | Length - Overall | 31.27 |
| Termination Rows | 焊接 | Termination Style | Through Hole |
| Header Orientation | 90°, Right Angle | Number of Contacts | 8 |
| Number of Positions | 8 | Terminal Block Type | Header, Female Sockets |
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | IMC | Number of Levels | 1 |
| Positions Per Level | 8 | ||
Documents & Media
Similar Parts
1830017
Phoenix Contact
Pluggable Terminal Blocks MCD 1.5/ 8-G-3.81 Conn Wire to Board HDR 16 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 16POS R/A 3.81MM Header for PCB plug connector MCD 1,5/ 8-G-3,81 MCD15/8-G-381 Phoenix Contact COMBICON MCD 系列 8路 3.81mm节距 PCB 接线端子块 , 焊接端接, 8A
1860702
Phoenix Contact
プラグ着脱可能ターミナルブロック EMCV 1.5/ 8-G-3.81 Conn Wire to Board HDR 8 POS 3.81mm Press Fit ST Thru-Hole TERM BLOCK HDR 8POS VERT 3.81MM Header for PCB plug connector EMCV 1,5/ 8-G-3,81 Pluggable Terminal Blocks EMCV 1.5/ 8-G-3.81 EMCV15/8-G-381 Phoenix Contact COMBICON EMCV 系列 3.81mm节距 8路 印刷电路板接线端子块, 按式端接, 8A

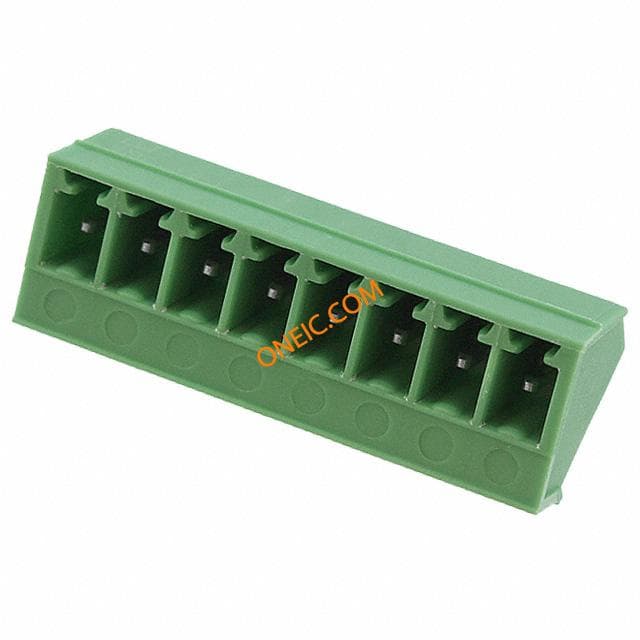

1827334
Phoenix Contact
Pluggable Terminal Blocks 3.81 8P HEADER 45DEG Conn Shrouded Header HDR 8 POS 3.81mm Solder Thru-Hole TERM BLOCK HDR 8POS 45DEG 3.81MM Header for PCB plug connector SMC 1,5/ 8-G-3,81 Header;BaseStrip;8A;160V;8Pos.;Green;Solder;SMC1,5/8-G-3,81

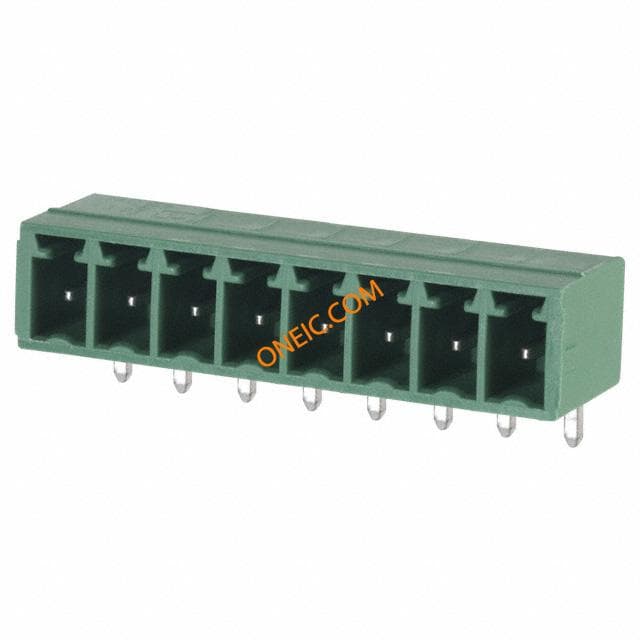

1803332
Phoenix Contact
Pluggable Terminal Blocks 3.81 8P HEADER 90DEG Conn Shrouded Header HDR 8 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 8POS R/A 3.81MM Phoenix Contact MC Series 3.81mm Pitch 8 Way 1 Row Right Angle PCB Header, Solder Termination, 8A Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;8Pole;3.81mmPitch;COMBICON Phoenix Contact COMBICON MC 系列 3.81mm节距 8路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 8A , 通孔

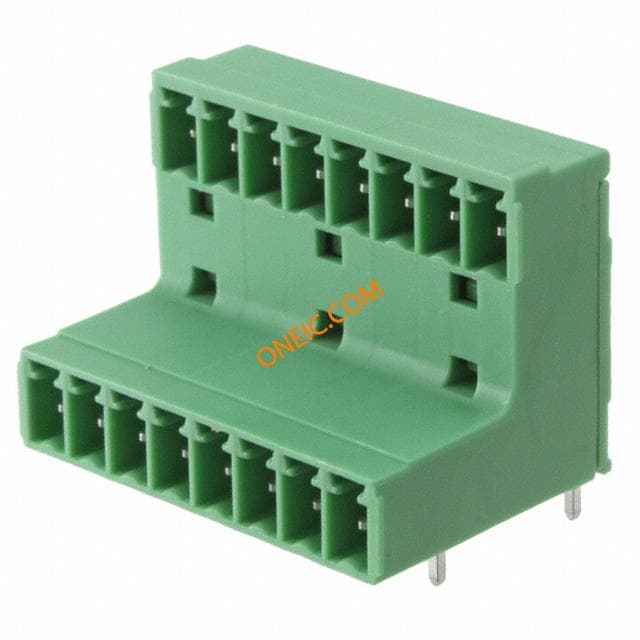

1843130
Phoenix Contact
Pluggable Terminal Blocks 3.81mm 8P HDR DBL LV Conn Wire to Board HDR 16 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 16POS R/A 3.81MM Header for PCB plug connector MCD 1,5/ 8-G1-3,81 MCD15/8-G1-381 Phoenix Contact COMBICON MCD 系列 8路 3.81mm节距 PCB 接线端子块 , 焊接端接, 8A

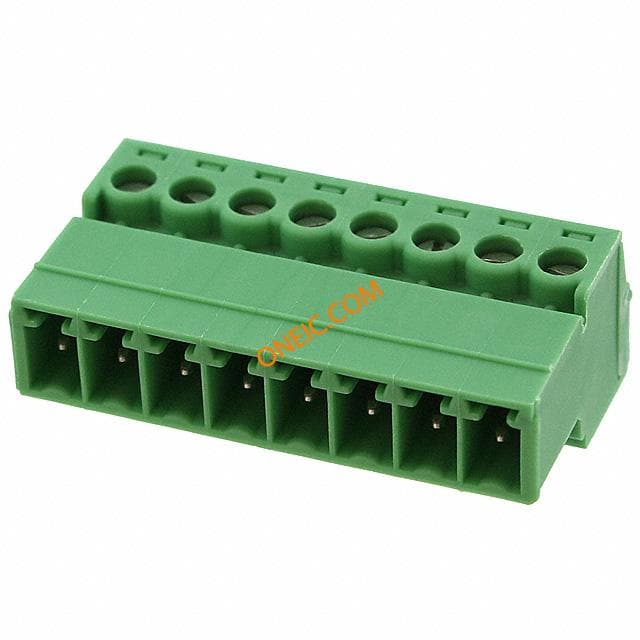

1857948
Phoenix Contact
Pluggable Terminal Blocks IMC 1 5/ 8-ST-3 81 Conn Terminal Block F 8 POS 3.81mm Screw RA Cable Mount 8A TERM BLOCK PLUG 8POS STR 3.81MM COMBICON PCB plugs IMC 1,5/ 8-ST-3,81 PLUGCOMPONENT,PITCH:3.81MM,POS8

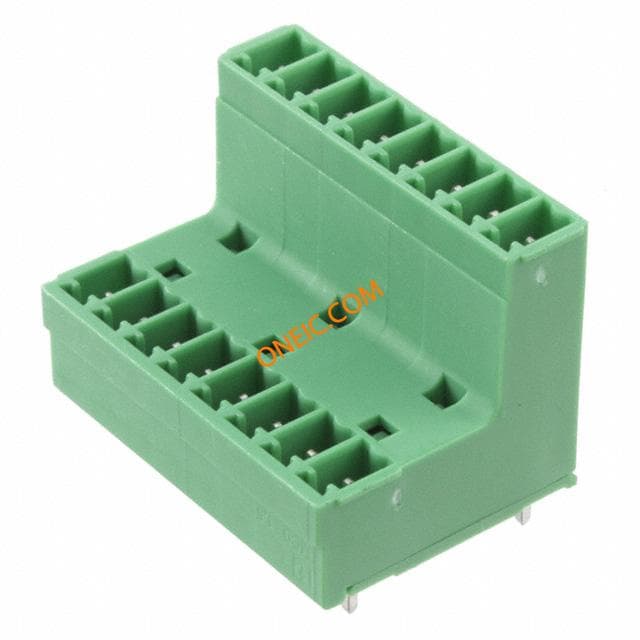

1830460
Phoenix Contact
Pluggable Terminal Blocks MCDV 1 5/ 8-G-3 81 Conn Shrouded Header HDR 16 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 16POS VERT 3.81MM Header for PCB plug connector MCDV 1,5/ 8-G-3,81 Header;BaseStrip;8A;160V;8Pos.;Green;Solder;MCDV1.5/8-G-3,81

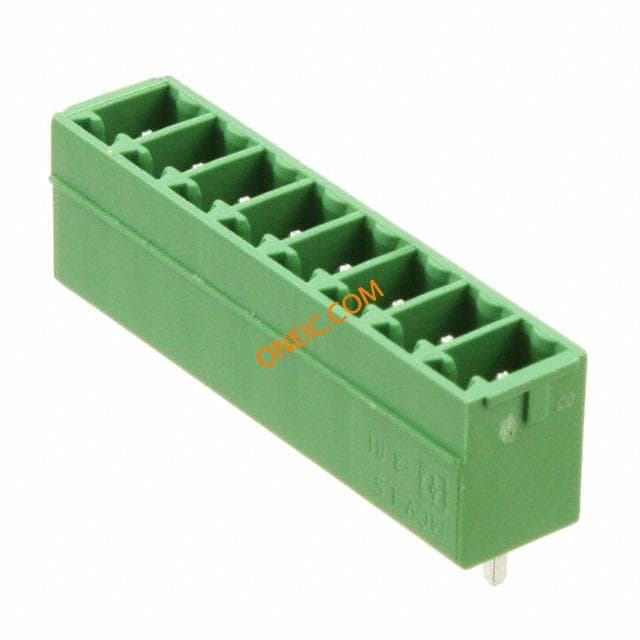

1803484
