1827334
| Manufacturer | |
| Description | Pluggable Terminal Blocks 3.81 8P HEADER 45DEG Conn Shrouded Header HDR 8 POS 3.81mm Solder Thru-Hole TERM BLOCK HDR 8POS 45DEG 3.81MM Header for PCB plug connector SMC 1,5/ 8-G-3,81 Header;BaseStrip;8A;160V;8Pos.;Green;Solder;SMC1,5/8-G-3,81 |
| Category |
Business
| Product | Headers | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 8A | Voltage | 300V |
| Voltage Rating | 160 V | Current Rating (Max) | 8 A |
| Voltage - Input (Min) | 160V | ||
Mechanical
| Color | Green | Depth | 13.1 |
| Pitch | 0.150" (3.81mm) | Height | 11 |
| Weight | 4.021232 oz | Packaging | Bulk |
| Termination | Solder | Housing Color | Green |
| Mounting Type | Through Hole | Contact Finish | Tin |
| Number of Rows | 1 | Housing Material | Polyamide |
| Length - Overall | 31.87 | Termination Style | Through Hole |
| Header Orientation | 45° | Number of Contacts | 8 |
| Number of Positions | 8 | Terminal Block Type | Header, Male Pins, Shrouded (4 Side) |
| Wire Gauge or Range - AWG | 28-16 | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | SMC | Number of Levels | 1 |
| Positions Per Level | 8 | ||
Documents & Media
Similar Parts
1897458
Phoenix Contact
Pluggable Terminal Blocks 8P 3.81mm 180DEG Conn Terminal Block F 8 POS 3.81mm IDT RA Cable Mount 6A TERM BLOCK PLUG 8POS STR 3.81MM Printed-circuit board connector QC 0,5/ 8-ST-3,81 QC05/8-ST-381 Phoenix Contact MINI COMBICON QC 系列 3.81mm 节距 8 路 母 绿色 插头, IDC端接

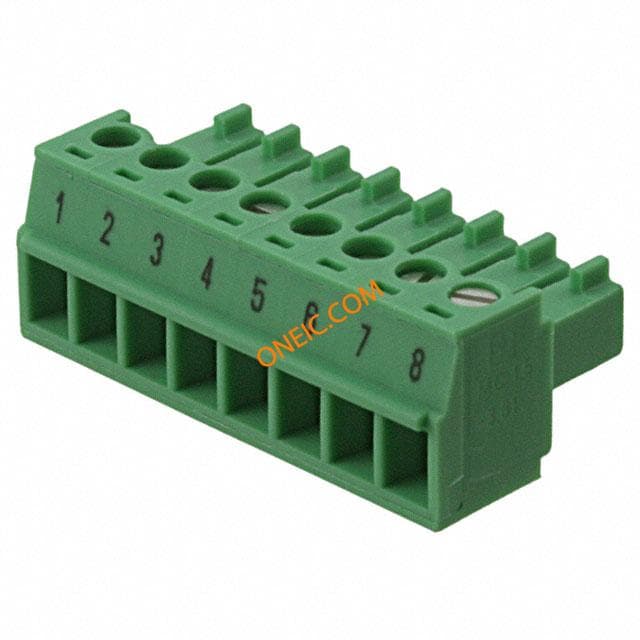

1859807
Phoenix Contact
Pluggable Terminal Blocks MC 1,5/ 8-ST- 3,81 BD:1-8 Conn Terminal Block 8 POS 3.81mm Screw 8A TERM BLOCK PLUG 8POS STR 3.81MM MC15/8-ST-381BD:1-8

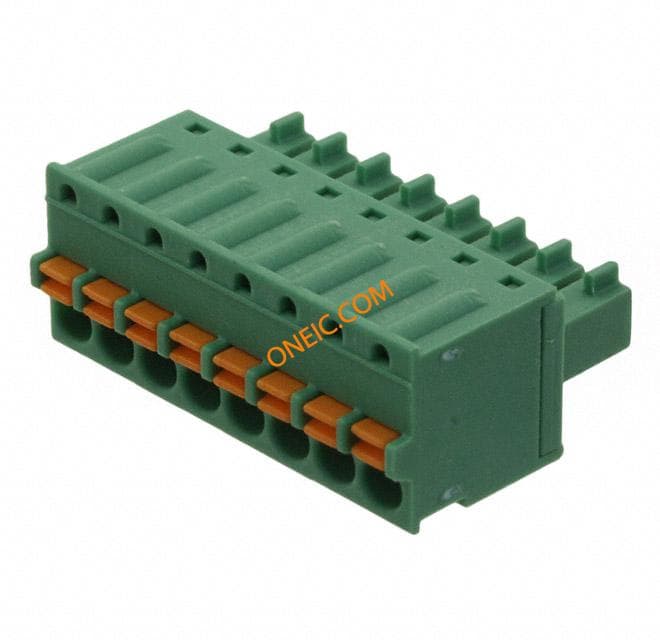

1851106
Phoenix Contact
Pluggable Terminal Blocks FK-MCP 1.5/ 8-ST-3.81 Conn Spring Cage F 8 POS 3.81mm RA 8A TERM BLOCK PLUG 8POS STR 3.81MM Printed-circuit board connector FK-MCP 1,5/ 8-ST-3,81 Conn;TermBlk;PCB;Plug;6;3.81mm;26-16AWG;8A;300V;PA Phoenix Contact MINI COMBICON FK-MCP 系列 3.81mm 节距 8 路 母 绿色 直 插头, 电缆安装, 弹簧笼端接
1839694
Phoenix Contact
Pluggable Terminal Blocks MC 1.5/ 8-ST-3.81 BK Conn Terminal Block F 8 POS 3.81mm 8A TERM BLOCK PLUG 8POS STR 3.81MM MC15/8-ST-381BK

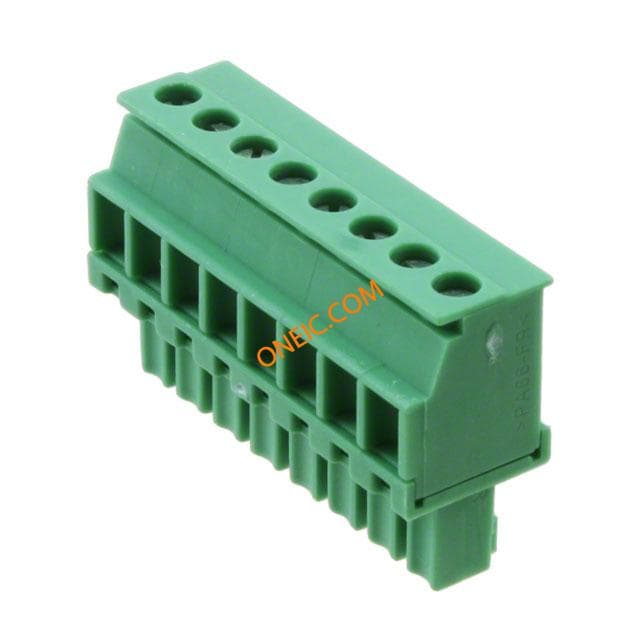

1827033
Phoenix Contact
Pluggable Terminal Blocks 3.81 8P PLUG 270DEG Conn Terminal Block F 8 POS 3.81mm Screw ST Cable Mount 8A TERM BLOCK PLUG 8POS 3.81MM Printed-circuit board connector MCVW 1,5/ 8-ST-3,81 Conn Terminal Blocks F 8 POS 3.81mm Screw ST Cable Mount 8A PLUG, FREE, R/A, 3.81MM, 8WAY Conn;TermBlk;Plug;Screw;8;3.81mm;30-14AWG;8A;300V;PA;M2 Phoenix Contact MINI COMBICON MCVW 系列 3.81mm 节距 8 路 母 绿色 直 插头, 电缆安装, 螺钉端接

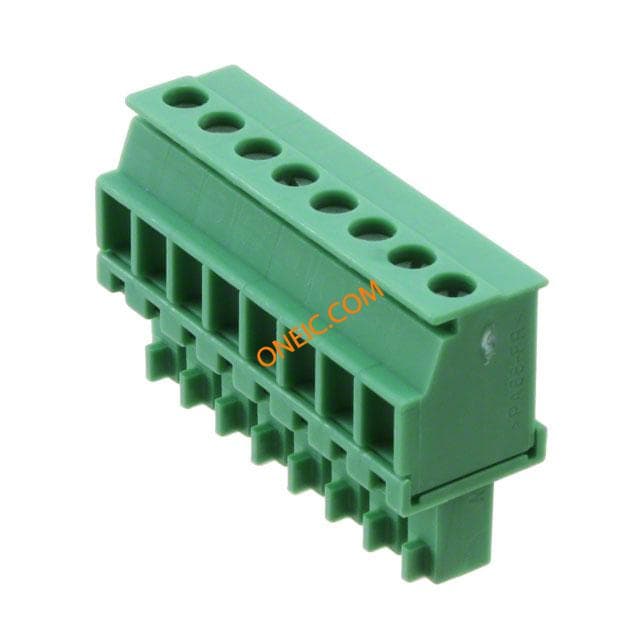

1827185
Phoenix Contact
Pluggable Terminal Blocks 3.81 8P PLUG 90DEG Conn Terminal Block F 8 POS 3.81mm Screw ST Cable Mount 8A TERM BLOCK PLUG 8POS 3.81MM Printed-circuit board connector MCVR 1,5/ 8-ST-3,81 Conn Terminal Blocks F 8 POS 3.81mm Screw ST Cable Mount 8A PLUG, FREE, R/A, 3.81MM, 8WAY Conn;TermBlk;Plug;Screw;8;3.81mm;30-14AWG;8A;300V;PA;M2 Phoenix Contact MINI COMBICON MCVR 系列 3.81mm 节距 8 路 母 绿色 直 插头, 电缆安装, 螺钉端接
1803633
Phoenix Contact
Pluggable Terminal Blocks 3.81 8P PLUG 180DEG Conn Terminal Block F 8 POS 3.81mm Screw RA Cable Mount 8A TERM BLOCK PLUG 8POS STR 3.81MM Non-Fused Terminal Block Cable Mount 8 Way, Screw Down, 300V PLUG, FREE, 3.81MM, 8WAY Conn;TermBlk;Plug;Screw;8;3.81mm;30-14AWG;8A;300V;PA;M2 Phoenix Contact 8 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 300 V

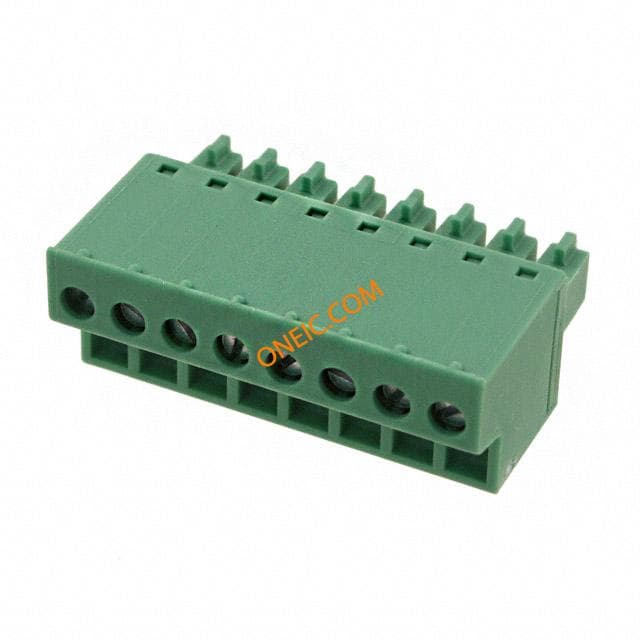

1850725
Phoenix Contact
Pluggable Terminal Blocks FRONT-MC 1 5/ 8-ST-3 Conn Terminal Block F 8 POS 3.81mm Screw ST Cable Mount 8A TERM BLOCK PLUG 8POS STR 3.81MM Printed-circuit board connector FRONT-MC 1,5/ 8-ST-3,81 FRONT-MC15/8-ST-381 Phoenix Contact MINI COMBICON FRONT-MC 系列 3.81mm 节距 8 路 母 绿色 插头, 螺钉端接
1862632
Phoenix Contact
Pluggable Terminal Blocks IMC 1.5/ 8-G-3.81 Conn Wire to Board HDR 8 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 8POS R/A 3.81MM Header for PCB plug connector IMC 1,5/ 8-G-3,81 IMC15/8-G-381 Phoenix Contact COMBICON IMC 系列 3.81mm节距 8路 印刷电路板接线端子块, 焊接端接, 8A

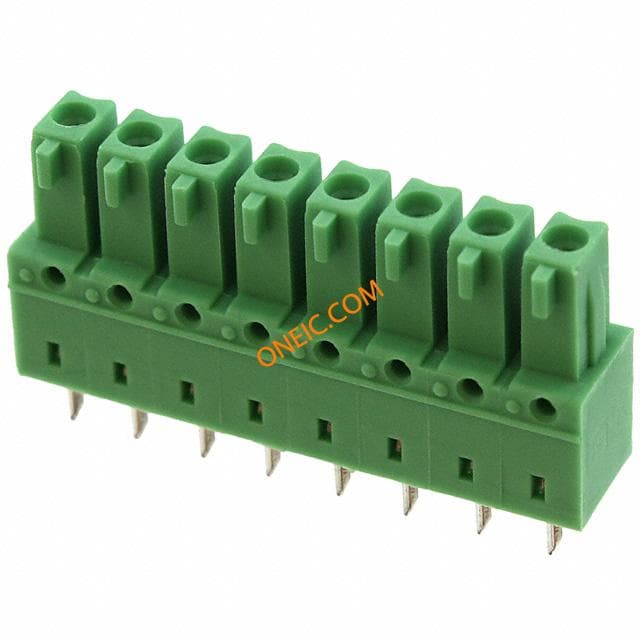

1875483
