1832798
| Manufacturer | |
| Description | Pluggable Terminal Blocks MCVK 1.5/ 8-G-3.81 Conn Terminal Block F 8 POS 3.81mm Screw 8A PLUG TERM BLOCK 8POS 3.81MM MCVK15/8-G-381 Phoenix Contact MCVK 系列 绿色 印刷电路板管座 , 8A, 320 V |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Pluggable Terminal Blocks | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current - UL | 8A | Voltage - UL | 300V |
| Current - IEC | 8A | Voltage - IEC | 300V |
| Voltage Rating | 160 V | Current Rating (Max) | 8 A |
| Voltage - Input (Min) | 160V | ||
Mechanical
| Color | 绿色 | Depth | 26.7 |
| Pitch | 3.81 mm | Height | 27.8 |
| Length | 1.255" (31.87mm) | Termination | Screw |
| Height (Max) | 1.051" (26.70mm) | Housing Color | Green |
| Mounting Type | DIN Rail | Contact Finish | Tin |
| Mounting Style | DIN Rail | Number of Rows | 1 |
| Housing Material | Polyamide | Length - Overall | 31.87 |
| Stripping Length | 7mm | Terminal - Width | 27.8mm |
| Termination Rows | 螺钉 | Termination Style | Plug Receptacles, Screw |
| Number of Contacts | 8 | Number of Positions | 8 |
| Material - Insulation | Polyamide (PA), Nylon | Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm2 | 0.14-0.5mm² | ||
Product Info
| Type | Terminal Block | Gender | F |
| Series | MCVK | Number of Levels | 1 |
Similar Parts
1734634
Phoenix Contact
Terminal Block Tools & Accessories CODING SECTION CP-MSTB Connector Accessories Coding Section Is Inserted Into The Slot On The Plug Or Inverted Header Red TERM BLK PLUG CODE SECTION RED CP-MSTB KEYINGPROFILE,REDINSULATINGMATERIAL
$0.5168
Details

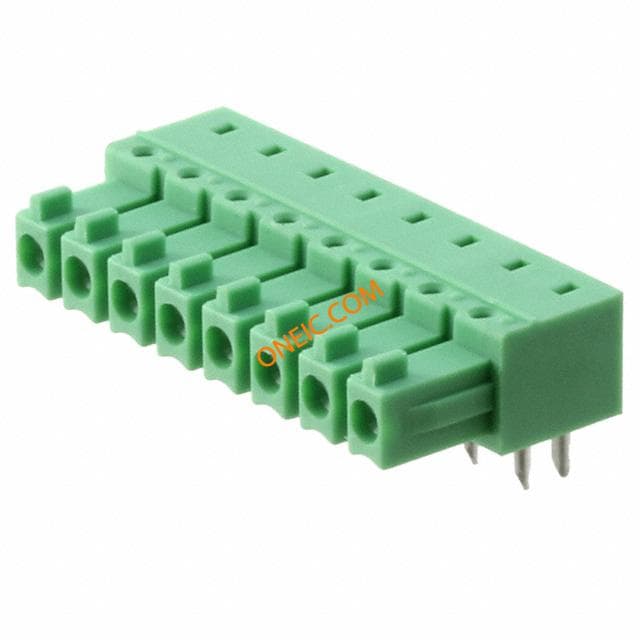

1862632
