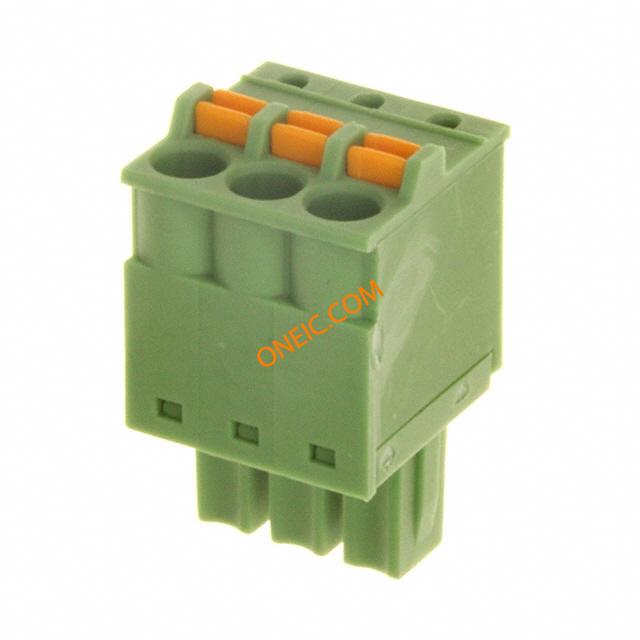

1851054
| Manufacturer | |
| Description | Pluggable Terminal Blocks FK-MCP 1 5/ 3-ST-3 3 POSITION Conn Spring Cage F 3 POS 3.81mm ST 8A TERM BLOCK PLUG 3POS STR 3.81MM FK-MCP15/3-ST-381 Phoenix Contact 3 路 无熔丝端子块, 电缆安装, 320 V |
| Category |
Business
| Product | Plugs | Tradename | COMBICON Control |
| Part # Aliases | 1,5/ 3-ST-3,81 FK-MCP | Product Category | Pluggable Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 8A | Voltage | 300V |
| Voltage Rating | 160 V | Current Rating (Max) | 8 A |
| Voltage - Input (Min) | 160V | ||
Mechanical
| Color | Green | Depth | 20.8 |
| Pitch | 0.150" (3.81mm) | Height | 12.4 |
| Weight | 3.597944 oz | Material | 尼龙 |
| Packaging | Bulk | Wire Gauge | 16-28 AWG |
| Termination | Screwless - Push In | Mounting Type | Straight |
| Contact Finish | Tin | Number of Rows | 1 |
| Plug Wire Entry | 180° | Housing Material | Polyamide |
| Length - Overall | 12.22 | Termination Style | Spring Cage |
| Number of Contacts | 3 | Number of Positions | 3 |
| Terminal Block Type | Plug, Female Sockets | Wire Gauge or Range - AWG | 26-16 |
| Wire Gauge or Range - mm2 | 28 → 16 AWG | ||
Product Info
| Type | Spring Cage | Gender | F |
| Series | FK-MCP | CAD Drawing | 3D CAD 模型 |
| Number of Lines | 3 | Number of Levels | 1 |
| Positions Per Level | 3 | ||
